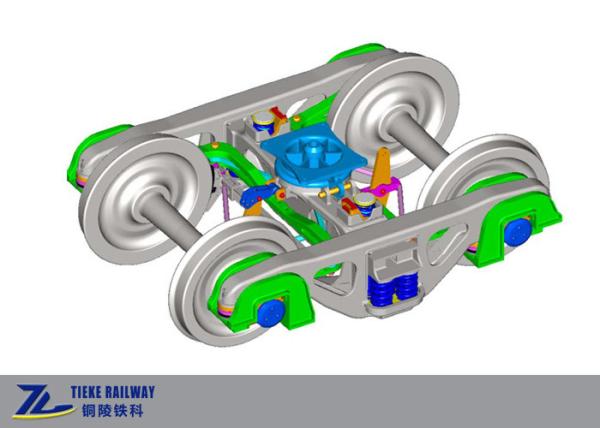

MVII Self-Steering Truck Radial Bogie Small Curve Rail Line 1067mm Cape Gauge

Breif introduction:

MVII self steering bogie is designed on the basis of South African self-steering bogie technology and has satisfactory application in Taiwan.

Self steering radial bogies can reduce wheel flange wear and lateral force, reduce fuel consumption of locomotives, reduce running noise and environmental pollution while ensuring sufficient linear stability. They are especially suitable for the operation requirements of high-speed and heavy-duty vehicles on small radius curve lines, and have great technical and economic significance.

Self steering bogie is guided by creep force between wheel and rail. When the bogie enters the curve, the creep force generated between the wheel and rail makes the wheel set "automatically" enter the radial position of the curve. The self guiding mechanism allows radial or octagonal displacement of the wheel set, but limits rhombic displacement, thus ensuring sufficient linear motion stability of the bogie, obtaining excellent curve passing performance, reducing flange wear and lateral force, and minimizing the maintenance cost of the wheel and the specification.

The self steering bogie is a cast steel three piece freight car bogie. The side frame is located on the sub frame through the rubber spring, and the sub frame is connected with the diagonal tie rod to form the self guiding mechanism of the bogie. The bogie is mainly composed of wheel sets, rolling bearing devices, side frames, bolsters, central suspension devices, foundation braking devices, constant base contact elastic side bearings and self guiding devices.

Main technical parameters:

Detail configuration image:

Self steering auxilary frame:

Tieke bogies assembly workshop:

Bogies package and transportation:

2 sets/steel pallet, suitable for forklift loading and unloading.

FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagon bogies directly.

Q2: Do you have design ability to provide customized railway bogies?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
