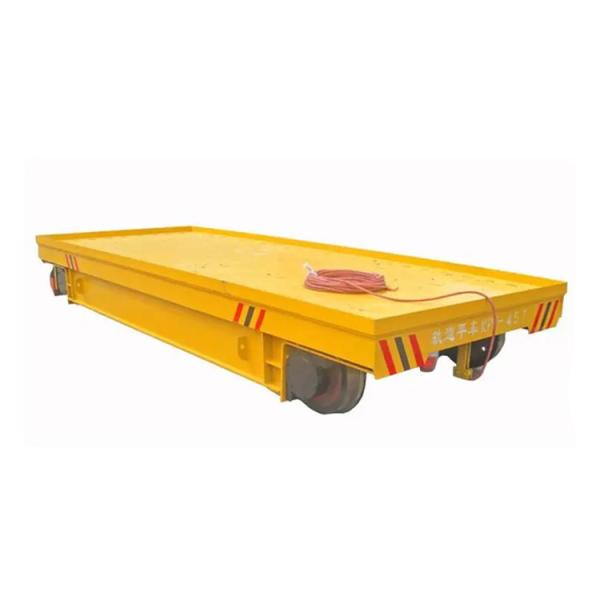

85T Heavy Duty Railway Flat Car for Concrete Bridge Beam Transportation
85T Heavy Duty Railway Flat Car for Concrete Bridge Beam Transportation
85T Heavy Duty Railway Flat Car for Concrete Bridge Beam Transportation
85T Heavy Duty Railway Flat Car for Concrete Bridge Beam Transportation
85T Heavy Duty Railway Flat Car for Concrete Bridge Beam Transportation
85T Heavy Duty Railway Flat Car for Concrete Bridge Beam Transportation
85T Heavy Duty Railway Flat Car for Concrete Bridge Beam Transportation
85T Heavy Duty Railway Flat Car for Concrete Bridge Beam Transportation
85T Heavy Duty Railway Flat Car for Concrete Bridge Beam Transportation
85T Heavy Duty Railway Flat Car for Concrete Bridge Beam Transportation
85T Heavy Duty Railway Flat Car for Concrete Bridge Beam Transportation
85T Heavy Duty Railway Flat Car for Concrete Bridge Beam Transportation
Specifications
Brand Name :
Kingrail
Model Number :
PD30
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
1000-100000
Payment Terms :
L/C, T/T
Supply Ability :
50PCS/MONTH
Delivery Time :
10-80 WORKING DAYS
Packaging Details :
standard export PACKAGE
Track Gauge :
1435mm,1067mm,1000mm、762mm、600mm,1524mm、1520mm
load :
50 ton,60 ton,70 ton
speed :
less than 120 km/h
Bogie Type :
Welded Bogie
Description

In order to meet the needs of customers for the transportation of heavy concrete precast beams in railway construction, Kingrail Parts has developed a heavy-duty flat car with a load capacity of 85 tons. In addition to transporting heavy T-beams and H-beams, this flat wagon can also transport general goods such as steel, heavy machinery and equipment.

We can also customize heavy-duty flat cars according to your specifications and requirements.

Specifications:

Aplication Transport concrete bridge beam by railway
Load(equispaced) 85 tons
Tare weight 24t
Axle load 27.3t
Min radius 145m
Structural speed 80km/h
Max. speed loaded 50km/h
Brake ratio 11.2
Vehicle dimension 14000mm(L)* 3173mm(W)*1130mm
Coupler center height 880mm
Wheel diameter 840mm
Limit gauge GB146.1-1983 ‘standard gauge railway rolling stock gauge’

Get more help

Please contact us for a free quote.
