Railway Casting Parts Ductile Iron Cologne Egg Rail Fastener
Railway Casting Parts Ductile Iron Cologne Egg Rail Fastener
Specifications
Brand Name :
HTR
Place of Origin :
CHINA
MOQ :
50 pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Delivery Time :
Regularly 60 days
Name :
Cologne-egg
Material :
Ductile Iron
Vertical static :
12-16 kN/mm
Resistance :
10*8
Fatigue life :
3 millions
Axle load :
≤17t
Description

Product overview

The Cologne Egg is a kind of track vibration damper fasteners for subways and light rail transits made up of the fastener component and the vibration damping pad. The vibration damping pad is made by serting elliptical tampered rubber rings between the rail plate and base and vulcanizing them into one. By appropriately tailoring the raw material proportions for the rubber, the track vibration damper fastener can be granted with good elasticity,low static and dynamic stiffness and good stamping effect.

Prouduct advantage

Isolate vibration, protect ground buildings, reduce surrounding

environmental noise.

It reduces the wear of the rail by the wheel and is easy for construct

tion maintenance and gauge adjustment.

Long service life, higher cost performance.

Product specification

Material Ductile Iron
Vertical static 12-16 kN/mm
Axle load ≤17t
Fatigue life 3 million
Resistance 10*8

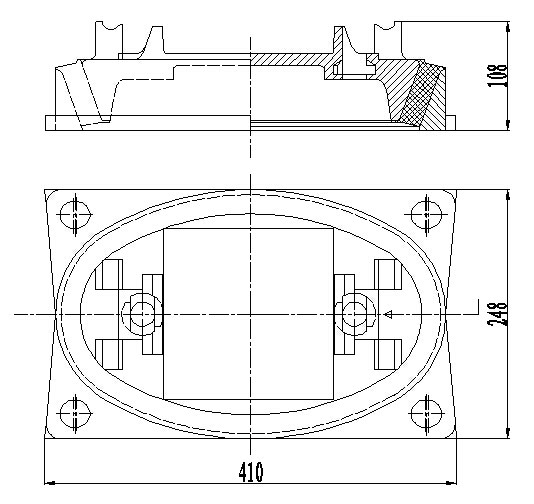

Drawing

Railway Casting Parts Ductile Iron Cologne Egg Rail Fastener

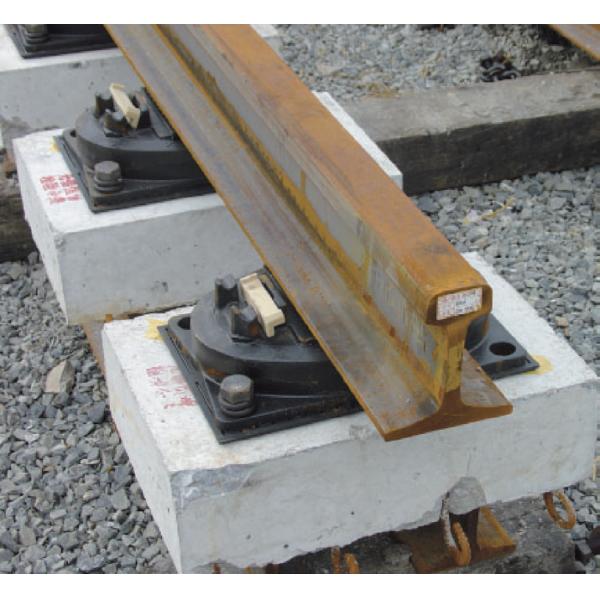

Application

Railway Casting Parts Ductile Iron Cologne Egg Rail Fastener
