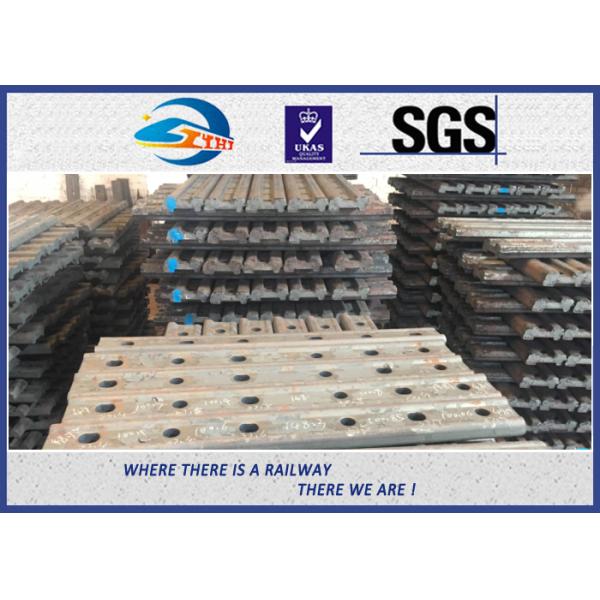

TUV Oxide Black Forging 4 Holes 50# Joint Bar Fishplates In Railway Tracks
TUV Oxide Black Forging 4 Holes 50# Joint Bar Fishplates In Railway Tracks
TUV Oxide Black Forging 4 Holes 50# Joint Bar Fishplates In Railway Tracks
TUV Oxide Black Forging 4 Holes 50# Joint Bar Fishplates In Railway Tracks
TUV Oxide Black Forging 4 Holes 50# Joint Bar Fishplates In Railway Tracks
TUV Oxide Black Forging 4 Holes 50# Joint Bar Fishplates In Railway Tracks
TUV Oxide Black Forging 4 Holes 50# Joint Bar Fishplates In Railway Tracks
TUV Oxide Black Forging 4 Holes 50# Joint Bar Fishplates In Railway Tracks
Specifications
Brand Name :
ZhongYue
Model Number :
132RE
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
1000pcs
Price :
Negociable
Payment Terms :
T/T, 30% in advance
Supply Ability :
10,000pcs per week
Delivery Time :
25 to 40 days according your order quantity
Packaging Details :
In bundle with pallets
Material :
50#
Application :
Railway construction
Surface :
Plain, Oiled, Oxide Black, Color Painting
Sample :
Available
Customization :
Acceptable
Types :
4 holes, 6 holes
Technology :
Forging
Name :
4 Holes 50# Railway Railway track fish plate / joint bar‎, fishplate
Description

4 Holes 50# Railway Railway track fish plate / joint bar‎, fishplate

Our domain expertise has enabled us to offer an excellent collection of Fish Plate Rail. This product is manufactured using premium quality raw material and advanced technology. Further, our quality controllers check this product on stringent parameters for ensuring its compliance with the defined industry norms. In addition to this, our esteemed clients can avail these products from us in various customized options. Moreover, clients can get these products from us pocket-friendly prices.

Features:

  • High strength
  • Performance-oriented design
  • Anti-corrosive


Specifications:

  • Fish Plate/ Joint Bar in Size: 52kg, 60kg, 90R
  • Standard: UIC-54, UIC-60, S-49, S-33

Type

Length /Diameter

Weight(Kg)

Material

115RE

4 hole- 24″

17.04

45#

Chemical 'composition(%):

C:0.42-0.50,

Mn:0.50-0.80,

Si:0.17-0.37,

Cr:≤0.25,

P:≤0.035,

S:≤0.035

50#

Chemical

composition(%):

C:0.62-0.70,

Mn:0.50-0.80,

Si:0.17-0.37,

Cr:≤0.25,

P:≤0.035,

S:≤0.035

115RE

6 hole -36″

25.56

132-136RE

4hole-24″

17.75

132-136RE

6hole-36″

26.63

UIC60

4 hole - 630/Ø26

18.07

UIC60

4 hole-600/ Ø 28

17.47

UIC60

4 hole - 630/ Ø 25

18.1

UIC54

4hole

14.34

UIC54

6hole- 800

19.94

BS80A

4hole

6.5

BS90A

685.8 / Ø 26

13.23

BS90A

792.9/ Ø 26 .2

15.34

90/91LB

4 hole

18.08

90/91LB

6hole

19.9

50Kg

4hole

14.3

50Kg

6hole

19.5

BS75R

4hole

6.56

BS60A

4hole

5.61

S49

4 hole

9.71

TUV Oxide Black Forging 4 Holes 50# Joint Bar Fishplates In Railway Tracks

Our main products:


Plastic and rubber pads, EVA pad, HDPE pad, dog spike, screw spike, railway bolt and nut, washer, rail clip, rail shoulder, crane rail, fish plate, base plate, crane rails and so on.
