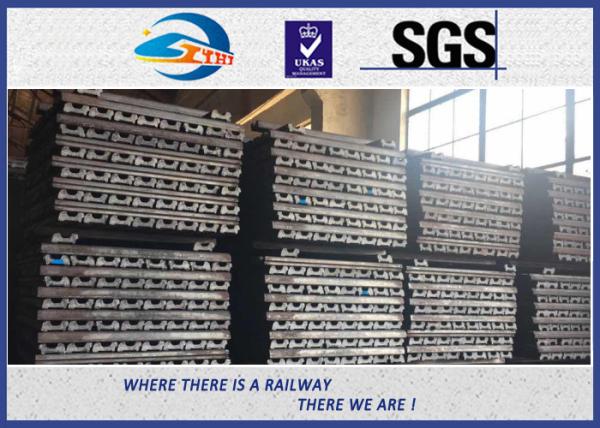

Customization Railroad Joint Bars Splice Bar Angle Bar For Light / Heavy Rail

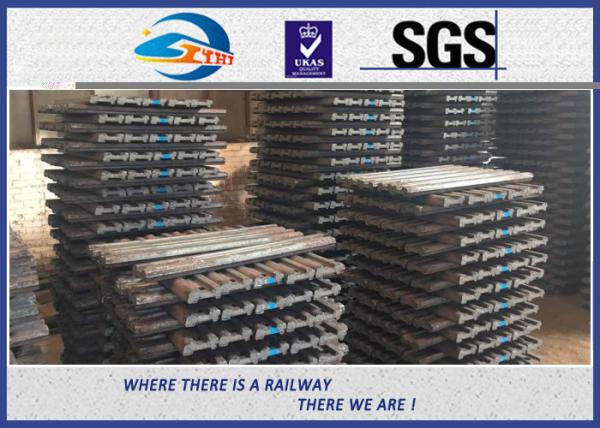

Customization Railroad Joint Bars Splice Bar Angle Bar For Light / Heavy Rail

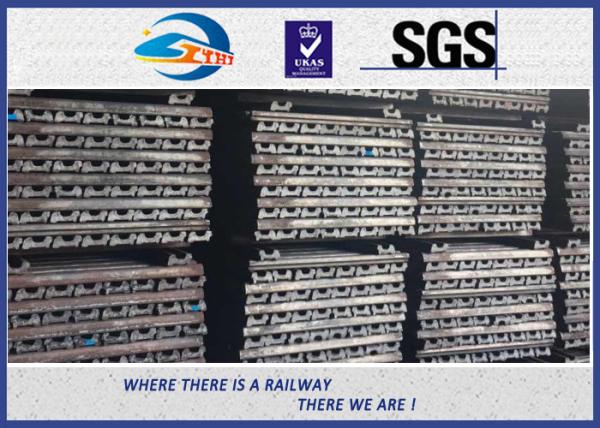

Customization Railroad Joint Bars Splice Bar Angle Bar For Light / Heavy Rail
Customization Railroad Joint Bars Splice Bar Angle Bar For Light / Heavy Rail
Customization Railroad Joint Bars Splice Bar Angle Bar For Light / Heavy Rail
Customization Railroad Joint Bars Splice Bar Angle Bar For Light / Heavy Rail
Specifications
Brand Name :
ZhongYue
Model Number :
BS80A, BS80A, BS75R, UIC60 and UIC54 and UIC series
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
1000pcs
Price :
Negociable
Payment Terms :
T/T, 30% in advance
Supply Ability :
10,000pcs per week
Delivery Time :
25 to 40 days according to your order quantity
Packaging Details :
25kg/woven bag, 36bags/pallet, 24 pallent/container
Material :
50#
Application :
Rail Joints Bar
Surface :
Plain, Oiled, Oxide Black, Color Painting
Sample :
Available
Customization :
Acceptable
Types :
4 holes, 6 holes
Technology :
Forging
Product name: :
railroad joint bar, splice bar and angle bar for light and heavy rail
Description

railroad joint bar, splice bar and angle bar for light and heavy rail

Rail fishplate, which is bolted to the ends of two railroad tracks to join them together, is widely used in light rail, heavy rail and crane rail. So if the quality of the railway fish plate is poor, the caused consequence would be unimaginable. As to the fastening system, fish bolt is the other important part and always firstly chosen in the part of fastening. In general, the rail fastening system is consist of fish bolt, flat washer and spring washer. Every two fish plates mostly need four or six suits of fish bolt.

Types of rail fishplate

Rail fishplate is widely use in the transportation of light rail, heavy rail and crane rail.
Light rail: 8kg, 9kg, 12kg, 15kg, 18kg, 22kg, 24kg and 30kg
Heavy rail: 38kg, 43kg, 50kg and 60kg
Crane rail: QU70, QU80, QU100 and QU120
Besides, there are so many various oversea railway fishplate: BS80A, BS80A, BS75R, UIC60 and UIC54 and UIC series, e.g.

Tee Rail A B C D E Bar (")

Length

 Bar weight (PR) Bar Punching Common Type
4-Hole 6-Hole FxGxHxGxF
12 lb. ASCE 2 4 - 5/8 57/64 16- 1/8 2.9 - 4 x 4 1/8 x 4 Splice
16 lb. ASCE 2 4 - 5/8 1- 1/16 16- 1/8 3.6 - 4 x 4 1/8 x 4 Splice
20 lb. ASCE 2 4 - 5/8 1- 11/64 16- 1/8 4.2 - 4 x 4 1/8 x 4 Splice
30 lb. ASCE 2 4 - 3/4 1- 25/64 16- 1/8 7.0 - 4 x 4 1/8 x 4 Splice
40 lb. ASCE 2- 1/2 5 - 7/8 1- 9/16 20 12.0 - 5 x 5 1/8 x 5 Angle F. T.
60 lb. ASCE 2- 1/2 5 - 1 1-115/128 20 27.2 - 5 x 5 1/8 x 5 Angle F. T.
80 lb. ASCE 2- 1/2 5 - 1- 1/16 2- 3/16 24 46.0 - 5 x 5 1/8 x 5 Angle F. T.
85 lb. ASCE 2- 1/2 5 - 1- 1/16 2- 17/64 24 47.3 - 5 x 5 1/8 x 5 Angle F. T.
85 lb. CP 2- 7/16 6- 1/2 - 1- 1/16 2- 11/32 22 43.6 - 6 1/2 x 5 x 6 1/2 Angle F. T.
100 lb. RE 2- 11/16 5- 1/2 - 1- 3/16 2- 45/64 22 51.9 - 5 1/2 x 5 1/2 x 5 1/2 Angle F. T.
100 lb. ARAA 2- 11/16 5- 1/2 - 1- 3/16 2- 3/4 22/33 53.5 80.3 5 1/2 x 5 1/2 x 5 1/2 Angle F. T.
100 lb. ASCE 2- 15/16 6 - 1- 3/16 2-65/128 24 63.2 - 5 x 5 1/8 x 5 Angle F. T.
115 lb. RE 3- 1/2 6 6 1- 3/16 2- 7/8 25/36 69.4 99.8 6 x 6x 7 1/8 x 6 x 6 Angle F. T.
132 lb. RE 3- 1/2 6 6 1- 5/16 3- 3/32 24/36 71.0 106.5 6 x 6x 7 1/8 x 6 x 6 Angle F. T.
136 lb. RE 3- 1/2 6 6 1- 5/16 3- 3/32 24/36 71.0 106.5 6 x 6x 7 1/8 x 6 x 6 Angle F. T.
CRANE RAIL
104 lb. CR 4 5 6 1 - 1/16 2 - 7/16 34 - 60.2 6 x 5 x 7 - 15/16 x 5x 6 Angle F. T
105 lb. CR 4 5 6 15/16 2 -13/64 34 - 51.6 6 x 5 x 7 - 15/16 x 5x 6 Splice
135 lb. CR 4 5 6 1- 3/16 2- 15/32 34 - 57.8 6 x 5 x 7 - 15/16 x 5x 6 Splice
171 lb. CR 4 5 6 1- 3/16 2- 5/8 34 - 72.1 6 x 5 x 7 - 15/16 x 5x 6 Splice
175 lb. CR 4 5 6 1- 3/16 2-21/32 34 - 69.4 6 x 5 x 7 - 15/16 x 5x 6 Splice

Type

Length /Diameter

Weight(Kg)

Material

115RE

4 hole- 24″

17.04

45#

Chemical 'composition(%):

C:0.42-0.50,

Mn:0.50-0.80,

Si:0.17-0.37,

Cr:≤0.25,

P:≤0.035,

S:≤0.035

50#

Chemical

composition(%):

C:0.62-0.70,

Mn:0.50-0.80,

Si:0.17-0.37,

Cr:≤0.25,

P:≤0.035,

S:≤0.035

115RE

6 hole -36″

25.56

132-136RE

4hole-24″

17.75

132-136RE

6hole-36″

26.63

UIC60

4 hole - 630/Ø26

18.07

UIC60

4 hole-600/ Ø 28

17.47

UIC60

4 hole - 630/ Ø 25

18.1

UIC54

4hole

14.34

UIC54

6hole- 800

19.94

BS80A

4hole

6.5

BS90A

685.8 / Ø 26

13.23

BS90A

792.9/ Ø 26 .2

15.34

90/91LB

4 hole

18.08

90/91LB

6hole

19.9

50Kg

4hole

14.3

50Kg

6hole

19.5

BS75R

4hole

6.56

BS60A

4hole

5.61

S49

4 hole

9.71

Customization Railroad Joint Bars Splice Bar Angle Bar For Light / Heavy RailCustomization Railroad Joint Bars Splice Bar Angle Bar For Light / Heavy RailCustomization Railroad Joint Bars Splice Bar Angle Bar For Light / Heavy Rail

Zhongyue's products ranges:

Customization Railroad Joint Bars Splice Bar Angle Bar For Light / Heavy Rail

  • Rail Fastening system
  • Rail Sleeper Screw
  • Rail Spike/Track spike/ Dog spike
  • Railway Bolt
  • Elastic Rail Clip
  • Rail Shoulder
  • Rail Anchor
  • Rail Tie Plate
  • Rail Clip
  • Railway Washer
  • Rail Nylon Insulator
  • Rail Pad
  • Rail Plastic Sleeve
  • Rail Fish Plate
  • Brake Block
  • Rail Nuts
  • Rail Fastening System
  • Crane rail
