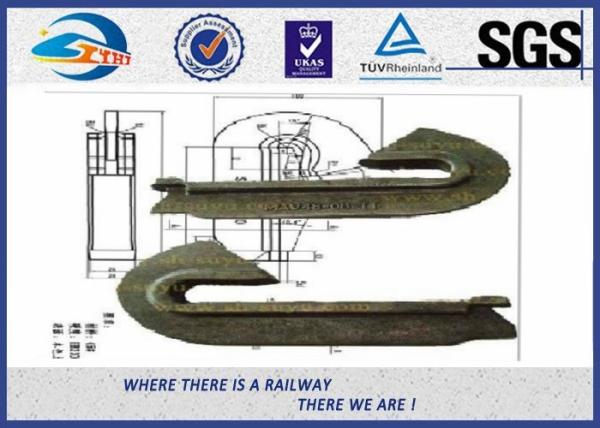

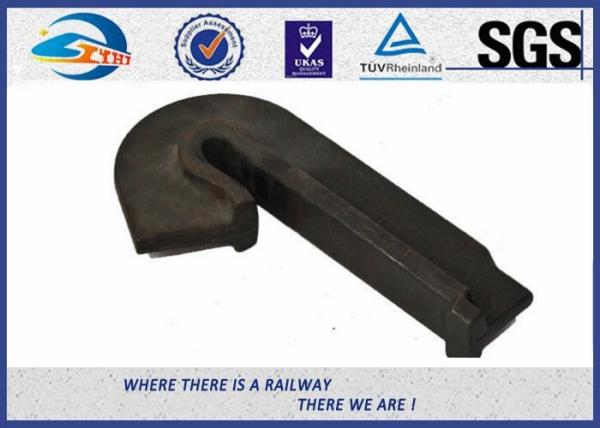

Casting rail anchors for fastening railway sleepers with 60Si2MnA material

Rail anchors made in one-piece construction from spring steel are designed to fasten the rail tight on the base of the rail to prevent the rail from longitudinal movements, i.e. the “ creeping” of the rail, caused by changing temperature, grades, traffic patterns, and braking action of trains.

Rail anchors are applied to the rail base directly and lodge up against the tie. Rail anchors provide a large bearing surface against rail base and rail tie, preventing cutting and wear, and eventually to prolong the working life of the rail ties. Anchors are made for a specific rail weight and base width, which can be classified into two types: the Drive-on rail anchors and Spring type rail anchor.

1. Rail anchor is manufactured in one-piece construction for spring steel or equal, heat-treated and designed to eliminate creepage of track. The rail anchors provide a large bearing surface against both rail base and tie, avoiding undo cutting and wear, thus prolonging the life of wooden ties. The rail anchors are used in 50Kg, 85Kg, 90/91LB, 115RE /136RE, UIC54 and UIC60 rail, and so on.
Technical Specifications of the Rail Anchor

2. Russian rail anchor
The Russian rail anchor is a kind of casting product used in the construction of railway. It is made of QT400-15 materials. Its mechanical properties in the as-cast state are fully compliant to the standard TOCT 7293-85.
With our own R&D department, we have succeeded and continue to produce new rail anchor according to our customers' requests. If you are interested in railway materials and components, please contact us and we always offer the professional help to meet your needs.
Adhering to our quality first policy, we pays great attention to quality control management. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our rail anchor and other railway fasteners are of high quality and up to customers' requirements.
As a leading manufacturer of rail anchor based in China, we also produces many other railway fasteners, such as track bolt, sleeper screw, rail joint bar, tie plate, rail clip, elastic rail clip, SKL tension clamp, rail shoulder, and so on.

Zhongyue rail anchors is made of a special T-shaped spring steel, forged and heat treated for uniform strength and lasting service. Zhongyue rail anchors are a "drive-on" design that offers the following benefits:

• Provide full rail base contact
• Distribute creeping loads evenly
• Eliminate sleeper chewing and climbing
• Deliver largest sleeper bearing area

Zhongyue rail anchors are available for almost any rail size in two types: for standard applications and heavy duty and challenging installations.

1- Features

Continuous Refinement
Constant appraisal of rail anchor manufacturing processes assures the Rail Anchor will remain the dominant anchor in track


2- Overdrive Stop
Assures proper application every time, by either manual or machine application

3- Platform

Provides full rail base contact .eliminate flex in frozen ballast rail “pumping” conditions


4- Tie Bearing Area
A greater contact area than any other design reduces wood fiber crushing prolonging sleeper life


5- Jaw Grip
The vice-like action on rail base resists rail movement on average more than any other drive-on anchor. Provides superior holding power!


6- High Quality
With premium quality steel anchor integrity is maintained for long lasting service


Application

Our main products:

Plastic and rubber pads, EVA pad, HDPE pad, dog spike, screw spike, railway bolt and nut, washer, rail clip, rail shoulder, crane rail, fish plate, base plate, crane rails and so on.

Should you have any questions,pls feel free to contact us.
