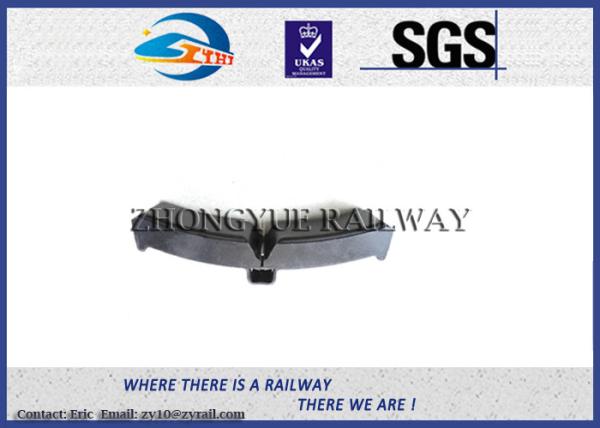

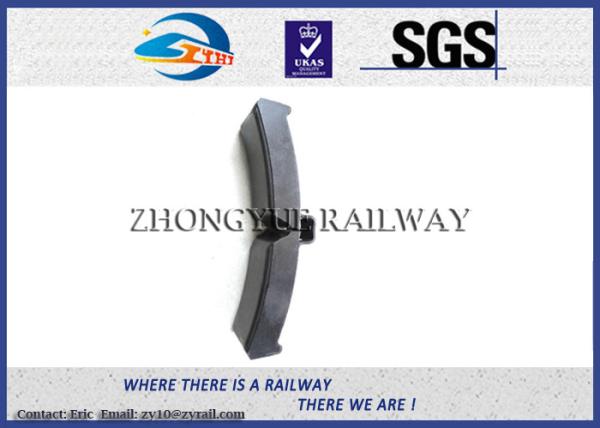

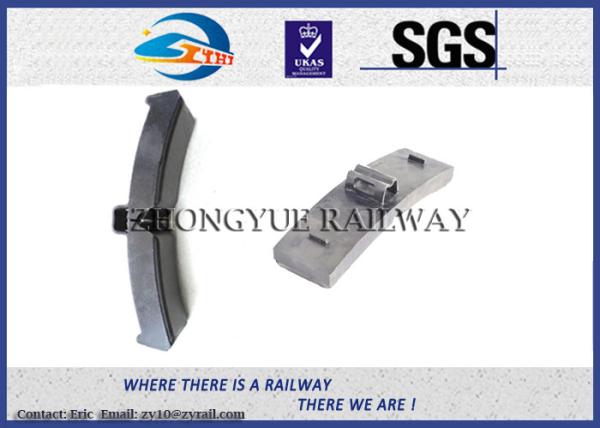

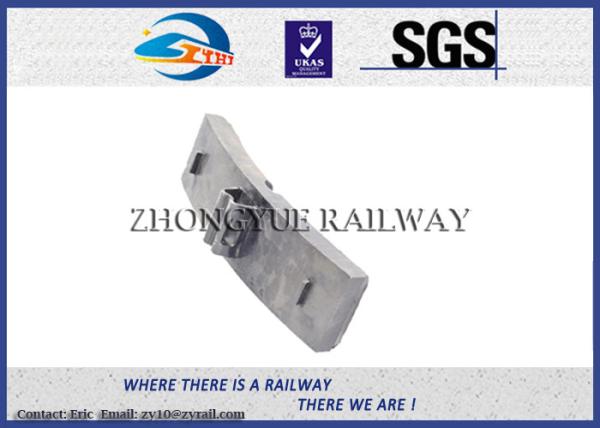

SGS approved Composite Material brake shoes, brake block,brake pad

Brakes are used on the cars of railway trains to enable deceleration, control acceleration (downhill) or to keep them standing when parked. While the basic principle is familiar from road vehicle usage, operational features are more complex because of the need to control multiple linked carriages and to be effective on vehicles left without a prime mover. Clasp brakes are one type of brakes historically used on trains.

SGS approved Composite Material brake shoes, brake block,brake pad

Chemical compositions of steel support

C % < 0.13%,

S % < 0.062%,

P % < 0.062%.

1. Physical and mechanical properties of composite

2. Operational heat

Our composite brake block won't melt or burn and continues to work at a temperature of 250℃

It may burn but causes no flame at a temperature of ≥ 400℃.

3. Materials of cast iron railway brake block and composite railroad brake shoe

A. The materials of composite brake block consist of 3 main substances including reinforcing fiber, organic/inorganic filler and resin bound.

B. It has a high level of uniformity.

C. It can be separated from the backing plate.

D. It contains no asbestos, lead, zinc or other mixtures.

E. It also contains no toxic materials.

F. The hardness of the material is lower than the wheel's.

G. It causes no strong smell in friction.

5. Performance

A. Excessive wear won't be caused on the surface of the wheel and the composite brake block.

B. The composite brake block will not cause the wheel porous or cracked.

C. It won't stick at the wheel during braking therefore won't cause uneven wheel surface.

D. It won't cause wheel slipping during full braking in wet conditions.

6. Test procedure

A. Vernier caliper or other methods are used to test the dimension of the brake block.

B. Laboratory test

Specific gravity test: standard ASTM D 792 or equivalent method

Coefficient of friction test: Standard ASTM D 1894 or equivalent method

Hardness test: standard ASTM D 785 or equivalent method

Shear resistance test: standard ASTM D 732 or equivalent method

Press test: Standard ASTM D 695 or equivalent method

Bending test: Standard ASTM D 790 or equivalent method

Thermal properties test: standard ASTM D 177 or equivalent method.

If you have any other demands on models of rail/ rail fastener, welcome to contact me.
