Carbon Steel Railroad Track Spikes Screw Back Tree Spikes 4.8 Grade
Carbon Steel Railroad Track Spikes Screw Back Tree Spikes 4.8 Grade
Carbon Steel Railroad Track Spikes Screw Back Tree Spikes 4.8 Grade
Carbon Steel Railroad Track Spikes Screw Back Tree Spikes 4.8 Grade
Carbon Steel Railroad Track Spikes Screw Back Tree Spikes 4.8 Grade
Carbon Steel Railroad Track Spikes Screw Back Tree Spikes 4.8 Grade
Carbon Steel Railroad Track Spikes Screw Back Tree Spikes 4.8 Grade
Carbon Steel Railroad Track Spikes Screw Back Tree Spikes 4.8 Grade
Specifications
Brand Name :
ZhongYue
Model Number :
OEM
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
10000pcs
Price :
Negociable
Payment Terms :
T/T, 30% in advance
Supply Ability :
600,000 pcs per month
Delivery Time :
15-30 work days after getting payment
Packaging Details :
25Kg plastic bags and wooden pallets or according to clients' requirement
Product Name :
Railway Screw Back Tree Spikes Carbon Steel 4.8 Grade AREM Q235
certificate :
ISO9001, SGS
Grade :
4.6, 4.8, 5.6
Material :
Q235 / 35#
Surface :
Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet
Standard :
ISO898-1, UIC864-1, and NF F500-50
Warranty :
two years
Description

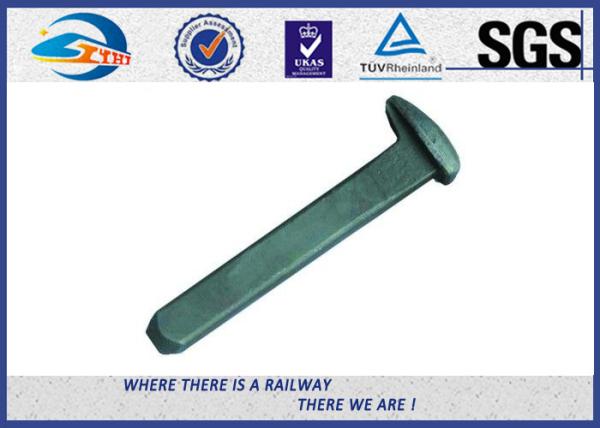

ZhongYue Railway Screw Back Tree Spikes Carbon Steel 4.8 Grade AREM Q235

Introduce:

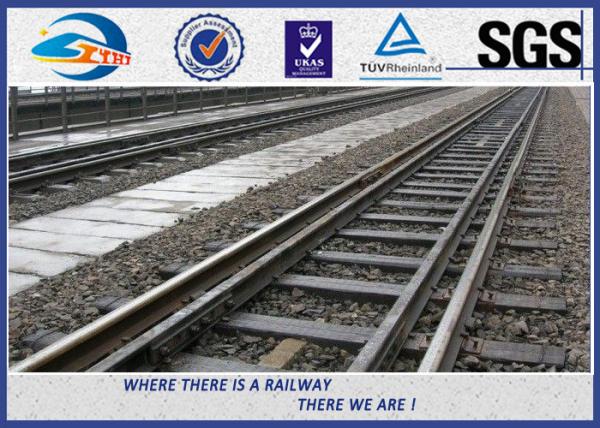

Rail track spike is mainly used for rail and wooden sleeper, is used for connecting the steel rail and sleeper or pad and a fastener sleeper.

Description:

Grade 4.6 5 .6 8.8
Material Q235 35# 45#
Mechanical Tensile strength: ≥ 400Mpa Tensile strength: ≥ 500Mpa

Tensile strength:

≥ 800Mpa
Yield strength: ≥ 240Mpa Yield strength: ≥ 300Mpa Yield strength: ≥ 640Mpa
Elongation: ≥ 22% Elongation: ≥ 20% Elongation: ≥ 12%
Cold bending: 90 degree
without crack
Surface plain (oiled) , Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing
Standard refers ISO898-1, UIC864-1, and NF F500-50

Advantage:

We are a leading and reputed manufacturer of qualified railway products in China since 2013, have got the production license of China’s Railway Ministry on railway products. We supply to Thailand Railway, Indonesia Railway, Zambia Railway, American Railway etc for years. We can customize your product with ASTM, DIN, BS, JIS, AS, NF, ISO and GB standard, competitive price available.

Order Hints:

MOQ: based on your product

Delivery time:Within 30days after order confirmed

Shipment: sea freight

Payment term: T/T 30% deposit, balance before shipment; LC

Our product range:

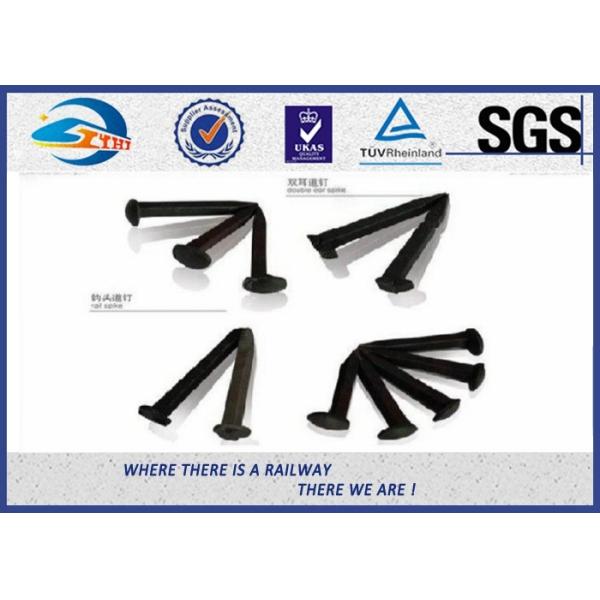

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ DP clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert
