High Tensile Dog Spike Railway Track Spike GOST DIN AREMA Standard 16x16x165mm
High Tensile Dog Spike Railway Track Spike GOST DIN AREMA Standard 16x16x165mm
High Tensile Dog Spike Railway Track Spike GOST DIN AREMA Standard 16x16x165mm
High Tensile Dog Spike Railway Track Spike GOST DIN AREMA Standard 16x16x165mm
High Tensile Dog Spike Railway Track Spike GOST DIN AREMA Standard 16x16x165mm
High Tensile Dog Spike Railway Track Spike GOST DIN AREMA Standard 16x16x165mm
High Tensile Dog Spike Railway Track Spike GOST DIN AREMA Standard 16x16x165mm
High Tensile Dog Spike Railway Track Spike GOST DIN AREMA Standard 16x16x165mm
Specifications
Brand Name :
ZhongYue
Model Number :
AREMA
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
10000pcs
Price :
Negociable
Payment Terms :
T/T, 30% in advance
Supply Ability :
600,000 pcs per month
Delivery Time :
about 30 work days after getting payment
Packaging Details :
25Kg plastic bags and wooden pallets or according to clients' requirement
Product Name :
high tensile screw spike american railway spike railway supplies
Grade :
4.6, 8.8, 5.6,
Material :
Q235 / 35#, 45#
Surface :
Zinc, HDG
Standard :
ISO898-1, UIC864-1, and NF F500-50
Warranty :
three years
Description

High Tensile Screw Spike Railway Track Spike 16x16x165mm

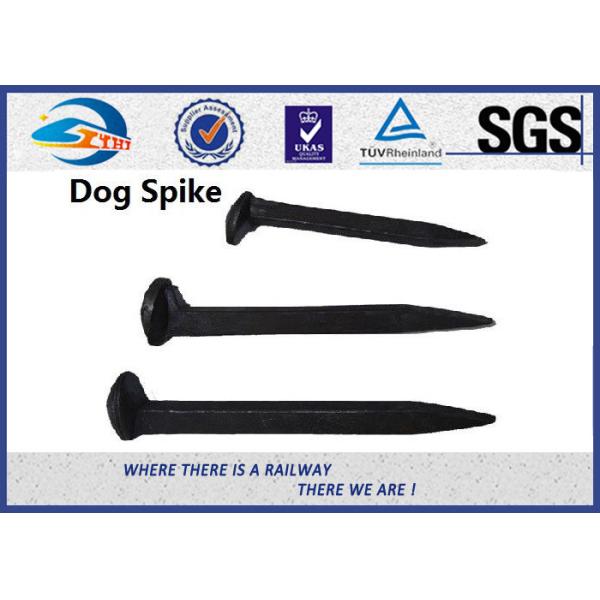

Other Name: Dog Spike, Track Spike, Rail Nail, Railway Spike, Bolt Spike

Introduce

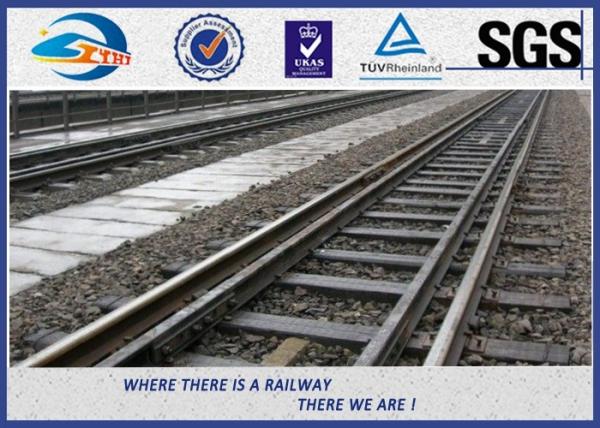

Track spikes are used to fasten sole plates and ribbed base plates to wooden sleepers. direct fastenings of rails on concrete and wooden sleepers. Characteristically, the sleeper screw thread may only be produced in a hotforming operation. The different shapes of the head correspond to the pass form of the respective spanner used for fastening and loosening of the rail sleeper screws.

Exported to: USA, Russia, European, South Africa, Egypt, Chile, Myanmar

Description

Grade 4.8 5 .8 8.8
Material Q235 35# 45#
Mechanical Tensile strength: ≥ 400Mpa Tensile strength: ≥ 500Mpa

Tensile strength:

≥ 800Mpa
Yield strength: ≥ 320Mpa Yield strength: ≥ 400Mpa Yield strength: ≥ 640Mpa
Elongation: ≥ 22% Elongation: ≥ 20% Elongation: ≥ 12%
Cold bending: 90 degree
without crack
Surface plain (oiled) , Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing
Standard refers ISO898-1, UIC864-1, and NF F500-50

Note (4.8 as a sample)

the first 4: tensile strength of material Q235 is 400MPa;

the second 0.8: the yield ratio is 0.8;

the yield strength of material Q235 is 400MPa x 0.8 =320 MPa.

MOQ: 1.0MT per model
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement

Process

  1. Raw material
  2. Cutting
  3. Head forming
  4. Heat treatment
  5. Surface treatment
  6. Final inspection
  7. Packing
  8. Shipment.

Surface Treatment

  1. Zinc Plating
  2. HDG
  3. plain (oiled)
  4. color paint
  5. oxide Black

High Tensile Dog Spike Railway Track Spike GOST DIN AREMA Standard 16x16x165mm

Inspection machine

  1. Brinell Hardness Tester
  2. Carbon and Sulfur Analyzer
  3. Rockwell Hardness Machine
  4. Automatic Impact Testing Machine
  5. Metallographic Microscope
  6. Automatic High-speed Analyzer
  7. Fatigue Testing Machine
  8. Metallographic Specimen Polishing Machine
  9. Metallographic Specimen Pointing Machine

High Tensile Dog Spike Railway Track Spike GOST DIN AREMA Standard 16x16x165mmHigh Tensile Dog Spike Railway Track Spike GOST DIN AREMA Standard 16x16x165mm
