Q235 / 35# Threaded Railroad Track Spikes 3/4''X'6'' ISO9001 / SGS
Q235 / 35# Threaded Railroad Track Spikes 3/4''X'6'' ISO9001 / SGS
Q235 / 35# Threaded Railroad Track Spikes 3/4''X'6'' ISO9001 / SGS
Q235 / 35# Threaded Railroad Track Spikes 3/4''X'6'' ISO9001 / SGS
Q235 / 35# Threaded Railroad Track Spikes 3/4''X'6'' ISO9001 / SGS
Q235 / 35# Threaded Railroad Track Spikes 3/4''X'6'' ISO9001 / SGS
Q235 / 35# Threaded Railroad Track Spikes 3/4''X'6'' ISO9001 / SGS
Q235 / 35# Threaded Railroad Track Spikes 3/4''X'6'' ISO9001 / SGS
Specifications
Brand Name :
ZhongYue
Model Number :
OEM
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
10000pcs
Price :
Negociable
Payment Terms :
T/T, 30% in advance
Supply Ability :
600,000 pcs per month
Delivery Time :
about 30 work days after getting payment
Packaging Details :
25Kg plastic bags and wooden pallets or according to clients' requirement
Product Name :
railroad 3/4''x'6'' dog spike threaded track spikes
Certificate :
ISO9001, SGS
Grade :
4.6, 4.8, 5.6,
Material :
Q235 / 35#
Surface :
Zinc, HDG
Standard :
ISO898-1, UIC864-1, and NF F500-50
Warranty :
two years
Description

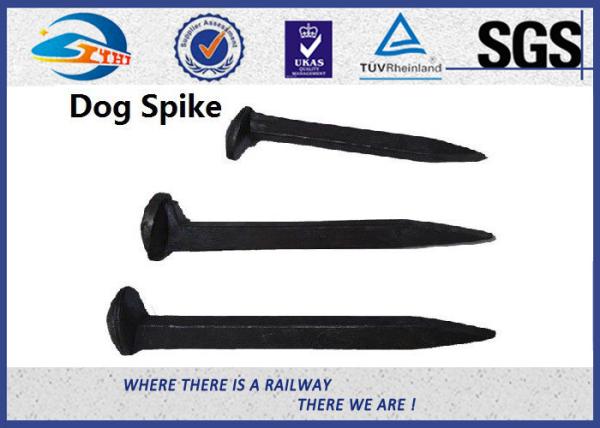

ZhongYue railroad 3/4''x'6'' dog spike threaded spikes manufacturer sale directly

Introduce:

Rail track spike is mainly used for rail and wooden sleeper, is used for connecting the steel rail and sleeper or pad and a fastener sleeper.

Description:


Brand
ZhongYue

Name
Track Spikes

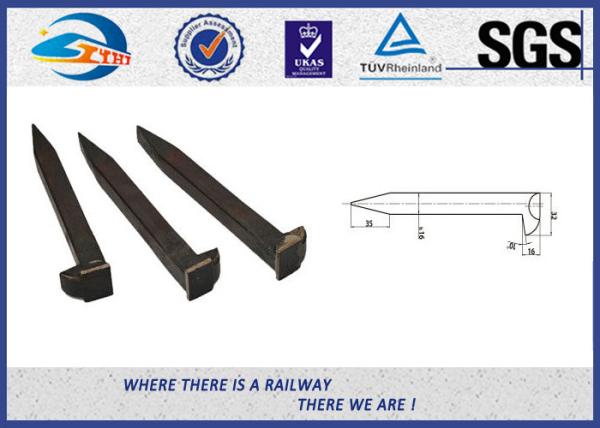

Size 16x16xL 16x16xL 5/8"x5/8"xL 3/8"x3/8"xL 16x16x170 16x16x150 9/16"xL square square 16mm
5/8"x5/8"x5" 5/8"xL 10mm 19mm
16mm Dia.22mm
Grade 4.6 4.6 A370 ASTM A65 Gr1,Gr2 4.6 4.6 ASTM A65 Gr1,Gr2 4.6 4.6
Material Q235 low carbon steel Q235 Q235 Steel type
low carbon low carbon low carbon SS41 low carbon steel
Surface plain (oiled)
Standard refers GB/T 1346 GOST5812 AREMA AREMA Ss-EN10025 BS70R, BS60R AREA

Note (4.8 as a sample)

the first 4: tensile strength of material Q235 is 400MPa;

the second 0.8: the yield ratio is 0.8;

the yield strength of material Q235 is 400MPa x 0.8 =320 MPa.

MOQ: 1.0MT per model
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement

Process

  1. Raw material
  2. Cutting
  3. Head forming
  4. Heat treatment
  5. Surface treatment
  6. Final inspection
  7. Packing
  8. Shippment.

Inspection machine

  1. Brinell Hardness Tester
  2. Carbon and Sulfur Analyzer
  3. Rockwell Hardness Machine
  4. Automatic Impact Testing Machine
  5. Metallographic Microscope
  6. Automatic High-speed Analyzer
  7. Fatigue Testing Machine
  8. Metallographic Specimen Polishing Machine
  9. Metallographic Specimen Pointing Machine

Q235 / 35# Threaded Railroad Track Spikes 3/4''X'6'' ISO9001 / SGSQ235 / 35# Threaded Railroad Track Spikes 3/4''X'6'' ISO9001 / SGS
