Forged Railroad Rail Fish Plate Joint Bar With 4 Holes or 6 holes

Specifications:

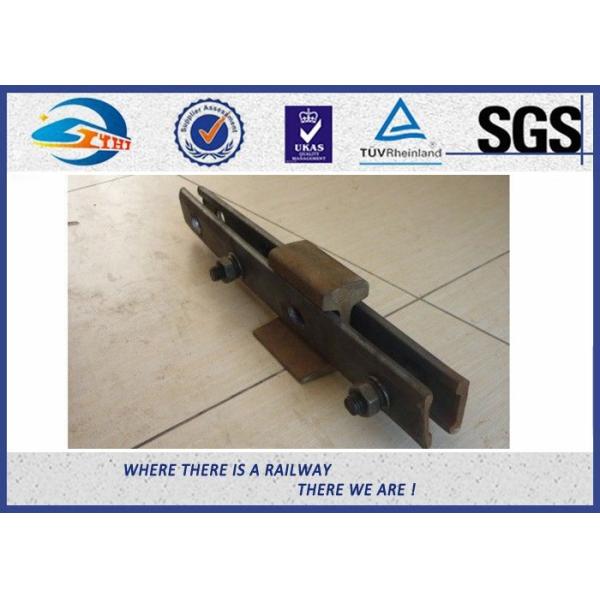

Railway fish plate/Railway Joint splint is used to joint/connect two pieces steel rails, such as light steel rail and heavy steel rail.

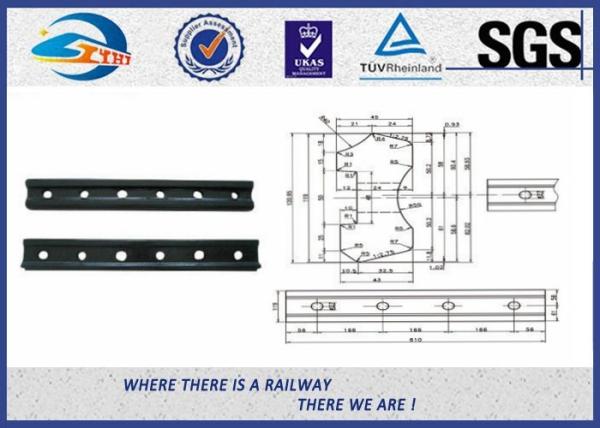

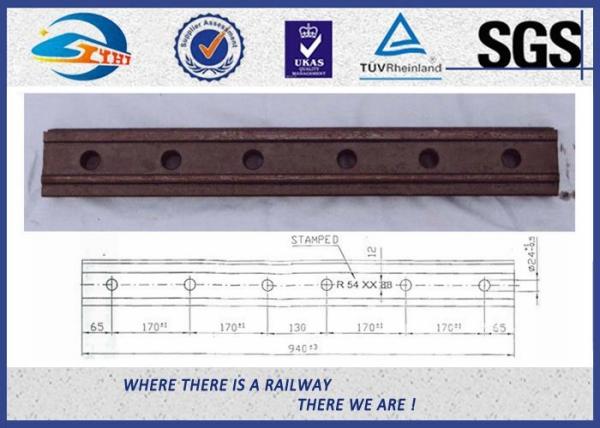

There are two kinds of fish plates, 4 holes and 6 holes. 4 holes fish plate is used to connect
light steel rail,6 holes fish plate is used to connect heavy steel rail.

We can provide all forms of fishplate,jointbar sizes.

1.Rich experience for international business
2.Prompt delivery
3.Quality control
4.Small orders are acceptable
5.Strong ability for R&D.

Specifically, there are two types including 4 holes and 6 holes. Fishplate in railway must be used with the fish bolt, which can fasten fishplate to rail track and make sure the safety of railway transportation. But have you ever found some railway fishplates have no holes? And do you know why?

Generally, the railway fishplates are fastened with the help of fish bolts. But sometimes, in order to fix the railway fishplates into the rail track more firmly, the fish plate can also be welded to the track. So in that condition, there are no holes on the surface of railway fishplates so as to improve the convenience for welding.

Apart from railway fishplates with no holes, ZHONGYUE can also provide various rail joints of high quality according to the requirements of our clients, and our rail joints are up to international standards, such as BS, UIC, GB, AREMA and DIN, etc.

Process: Rolled, forged and machined
Types: Ordinary, Plain, Angle Toe, Emergency Repair, Combination
Configuration: 4-hole and 6-hole
Accessories: Can be manufactured as per the fish plate.

HS Code: 73024 00000
If you have any other models of rail/ rail fastener, welcome to contact me.
