High Hardness Railway Screw Spike / Coach Screw used on high-speed tracks
High Hardness Railway Screw Spike / Coach Screw used on high-speed tracks
High Hardness Railway Screw Spike / Coach Screw used on high-speed tracks
High Hardness Railway Screw Spike / Coach Screw used on high-speed tracks
High Hardness Railway Screw Spike / Coach Screw used on high-speed tracks
High Hardness Railway Screw Spike / Coach Screw used on high-speed tracks
Specifications
Brand Name :
ZhongYue
Model Number :
ZHONGYUE Screw Spike
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
10000pcs
Price :
Negociable
Payment Terms :
T/T, 30% in advance
Supply Ability :
10,000pcs per week
Delivery Time :
10 to 30 days according to your order quantity
Packaging Details :
25kg Cartons or woven bags onwooden pallet , 36 bags/pallets , 24 pallets/container
Product Name: :
High Hardness Railway Screw Spike / Coach Screw used on high-speed tracks
Application: :
Railway construction
Material: :
Q235, 35#, 45#, 40Cr
Surface Treatment: :
HDG, Oil, Oxide Black, Wax
Brand: :
Zhongyue
Grade: :
4.6, 4.8, 5.6, 8.8
Standard: :
ISO898-1, UIC864-1, And NF F500-50
Hardness: :
43-47
Tensile strength: :
500Mpa
Yield strength: :
≥300Mpa
Elongation: :
≥20%
Cold bending: :
90 degree without crack
Customization: :
Acceptable
Samples: :
Available
Description

High Hardness Railway Screw Spike / Coach Screw used on high-speed tracks

We are largest manufacturer & supplier of comprehensive range of Railway Fish Plate to our valued clients as per given specifications. These are available at market leading price, Also widely appreciated for its durability, corrosion resistance, and easy maintenance.

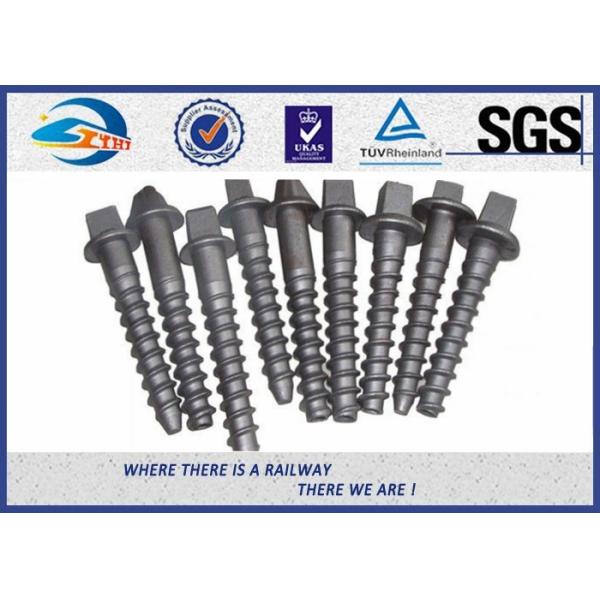

Screw Spike/Coach Screw

One of the most popular rigid rail fixation items, are extensively used to tighten the rail track on wooden or concrete tie. Screw Spikes are used for fixing tie plates on the wooden ties in pre-bored holes and with plastic inserts pre-cast in concrete sleepers. They are extensively used on high-speed tracks with the extremely popular H.M. fastening

Name 5.6 Grade 35# Screw Spike DIN Standard High Hardness
Type Ss5.-150 V20-135
Ss8-140 V23-115
Ss8-150 V23-135
Ss8-160 V23-155
Ss23-160 V23-215
Ss25.-165 V26-115
Ss35.-161
Or the type by customers’ drawings
Grade 4.6 5.6 8.8 10.9
Material Q235 35# 45# 40Cr

Mechanical

properties

Tensile strength:

≥400Mpa

Tensile strength:

≥500Mpa

Tensile strength:

≥800Mpa

Tensile strength:

≥1000Mpa
Yield strength:≥240Mpa Yield strength:≥300Mpa Yield strength:≥640Mpa Yield strength:≥900Mpa
Elongation:≥22% Elongation:≥20% Elongation:≥12% Elongation:≥9%

Cold bending:

90 degree without crack

Cold bending:

90 degree without crack

Cold bending:

90 degree without crack

Cold bending:

90 degree without crack
Surface plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing
Standard refers ISO898-1, UIC864-1, and NF F500-50

Application of High Hardness Railway Screw Spike / Coach Screw used on high-speed tracks

High Hardness Railway Screw Spike / Coach Screw used on high-speed tracks

Photos Details of High Hardness Railway Screw Spike / Coach Screw used on high-speed tracks

High Hardness Railway Screw Spike / Coach Screw used on high-speed tracks

High Hardness Railway Screw Spike / Coach Screw used on high-speed tracks

Zhongyue's products ranges:

High Hardness Railway Screw Spike / Coach Screw used on high-speed tracks

  • Rail Fastening system
  • Rail Sleeper Screw
  • Rail Spike/Track spike/ Dog spike
  • Railway Bolt
  • Elastic Rail Clip
  • Rail Shoulder
  • Rail Anchor
  • Rail Tie Plate
  • Rail Clip
  • Railway Washer
  • Rail Nylon Insulator
  • Rail Pad
  • Rail Plastic Sleeve
  • Rail Fish Plate
  • Brake Block
  • Rail Nuts
  • Rail Fastening System
  • Crane rail

Production process of 8.8 Grade 45# Oxide Black Screw Spike Insert Plastic Dowel

Raw material —— Wiredrawing —— Cutting the wire rod to length —— forming the head —— cutting Edge —— Thread rolling —— Heat Treatment —— Surface treatment —— Final inspection —— Packaging —— Shipment

High Hardness Railway Screw Spike / Coach Screw used on high-speed tracks
