Specifications
Brand Name :
ZhongYue
Model Number :
SKL14
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
10000sets
Price :
Negociable
Supply Ability :
500,000 pcs per month
Delivery Time :
40 work days after getting payement
Packaging Details :
25kg double-layer bag, 36bags/pallet, 24pallets/container or as your request
Payment Terms :
T/T, 30% in advance
Material :
Elastic steel
Surface :
Plain (oiled), Oxide black, Color , Galvanized
Drawing :
Designed from client
Model :
SKL14
Description

Steel Elastic Rail Clips With Plastic Dowel For Railway Fasteners​

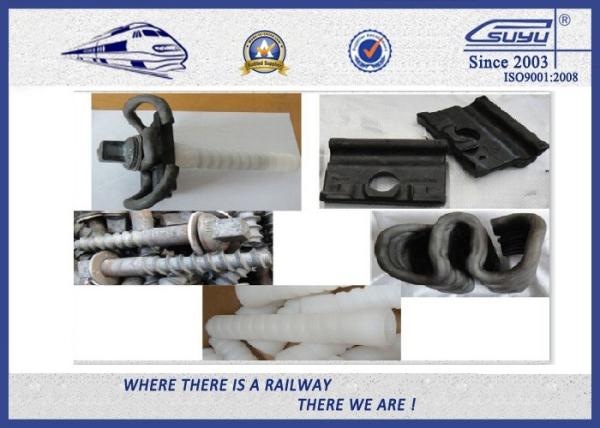

The composition of set of SKL14

NO. Drawing Item QTY Material
1 ZBRF-SKL14-1 Rail clip 2 60Si2Mn
2 ZBRF-SKL14-2 Guide plate 1 PA66+30%GF
3 ZBRF-SKL14-3 Rail Pad 1 HDPE
4 ZBRF-SKL14-4 Plastic pad 2 PA66+30%GF
5 ZBRF-SKL14-5 screw spike and washer 2 C35and Q235

Steel Elastic Rail Clips With Plastic Dowel For Railway Fasteners SKL 14 W-14

Samples Show:

Steel Elastic Rail Clips With Plastic Dowel For Railway Fasteners SKL 14 W-14

Produce Process:

Clip Production Process
1 raw material
2 shearing
3 heating to forging temperature (950-1000 degrees celsius)
4 forming
5 hardening
6 tempering below 350 degrees celsius
7 inspection
8 packing

Steel Elastic Rail Clips With Plastic Dowel For Railway Fasteners SKL 14 W-14

Other Main Types Of SKL:

SKL Series SKL1 SKL3 SKL12 SKL14
Material 60Si2MnA 60Si2CrA 55Si2Mn 38Si7
Chemical composition(%) C:0.56-0.64, C:0.56-0.64, C:0.52-0.60, C:0.35-0.42,
Mn:0.60-0.90, Mn:0.40-0.70, Mn:0.60-0.90, Mn:0.50-0.80,
Si:1.60-2.00, Si:1.40-1.80, Si:1.50-2.00, Si:1.50-1.80,
Cr:≤0.35, Cr:0.70-1.00 Cr:≤0.35 　
P:≤0.03, P:≤0.03, P:≤0.03, P:≤0.03,
S:≤0.03 S:≤0.03 S:≤0.03 S:≤0.03
Hardness 42-47HRC
Fatigue life for Dia.18 is 3 millions cycles without breaking
for Dia.20 is 5 millions cycles without breaking

Rail clip for UIC standard

E clip

Type

Material

Type

Material

UIC 54

45#,55#,etc

E1,E2,E3

60Si2MnA 38Si7 60Si2Cr

UIC 60

E1609

Rail clip for BS standard

E1809

BS60A

Spring steel

E1817

BS75A

E2001

BS80A

E2006

Rail clip for JIS standard

E2009

JIS37

Spring steel

E2055

JIS50

E2056

Rail clip for ISCR standard

Vossloh clip,fast clip

ISCR50

Spring steel

SKL1

38Si7 60Si2CrA

ISCR60

SKL3

ISCR70

SKL12

Rail clip for China standard

SKL14

SKL75

A(I II)

Spring steel

Rail clip for South-American standard

B

TJ37

Spring steel

III

TJ45

WJ-7

TJ50

WJ-8

TJ57

WJ-9

TJ60

We can supply you according to your drawings or samples!
