High Tensile Joint Nut 40Cr Hex Coupling Nut for Railway Fastening Connector

Coupling nuts are used in joining threaded rods where span of application exceeds 144" or where a threaded fitting is used with threaded rod in suspension applications. ASTM A-563 Grade A. ASME B1.1 UNC Class 2B thread requirement. Zinc plating, retards the corrosion rate in a normal atmosphere.

Hex Coupling Nuts are defined by their elongated hexagonal shape and used to connect two pieces of threaded material at opposite ends. A coupling nut has a sight hole which allows visual verifications that the threads are fully engaged. Hex coupling nuts are made to be highly enduring and able to suit the wide variety of applications they are commonly used for.

1. Right hand thread

2. Coupling nuts are threaded fasteners for joining two male threads, most commonly threaded rod

3. Coupling nuts are used to make up long rod assemblies from shorter lengths of rods

4. Stainless steel

Specifications

ASTM A563

Contract Catalog Item: Y

Diameter: 1/2"

Diameter-Thread Size: 1/2"-20

Finish: Zinc

Grade: A

Length: 1-3/4"

Material: Steel

REACH: Y

Specification: ASTM A563

System of Measurement: Imperial (Inch)

Thread: Fine

Thread Size: 20

Type: Coupling Nut

Wrench Size: 11/16"

Product Weight: 0.1078 lbs.

DIN 1479

Contract Catalog Item: Y

Diameter: M8

Diameter-Thread Size: M8-1.25

Finish: Plain

Grade: Class 5.8

Length: 35mm

Material: Steel

REACH: Y

Specification: DIN 1479

System of Measurement: Metric

Thread: Coarse

Thread Size: 1.25

Type: Coupling Nut

Wrench Size: 13mm

Product Weight: 0.065 lbs.

DIN6334

M20

Contract Catalog Item: Y

Diameter: M20

Diameter-Thread Size: M20-2.5

Finish: Zinc

Grade: 6

Length: 60mm

Material: Steel

REACH: Y

Specification: DIN 6334

System of Measurement: Metric

Thread: Coarse

Thread Size: 2.5

Type: Coupling Nut

Wrench Size: 30mm

Product Weight: 0.426 lbs.

M16

Contract Catalog Item: Y

Diameter: M16

Diameter-Thread Size: M16-2.0

Finish: Zinc

Grade: 6

Length: 48mm

Material: Steel

REACH: Y

Specification: DIN 6334

System of Measurement: Metric

Thread: Coarse

Thread Size: 2.0

Type: Coupling Nut

Wrench Size: 24mm

Product Weight: 0.2646 lbs.

M30

Contract Catalog Item: Y

Diameter: M30

Diameter-Thread Size: M30-3.5

Finish:Zinc

Grade: 6

Length: 90mm

Material: Steel

REACH: Y

Specification: DIN 6334

System of Measurement: Metric

Thread: Coarse

Thread Size: 3.5

Type: Coupling Nut

Wrench Size: 46mm

Product Weight: 0.98 lbs.

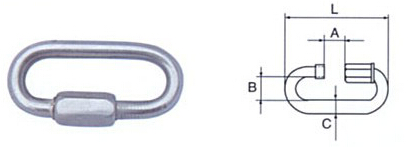

Dimension

Details

Application

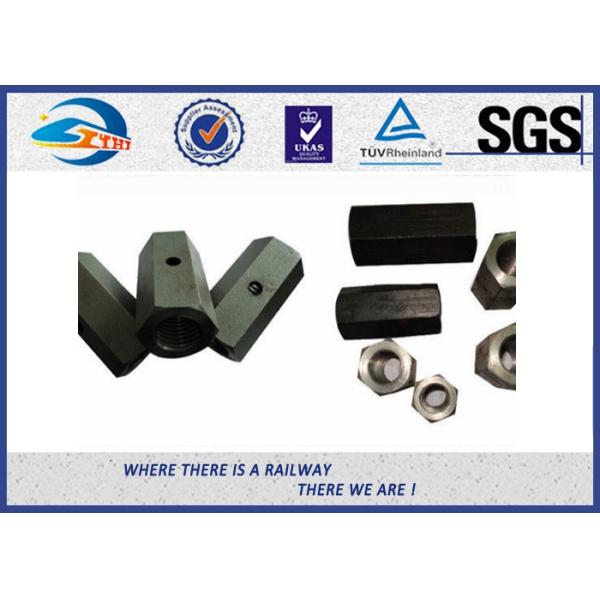

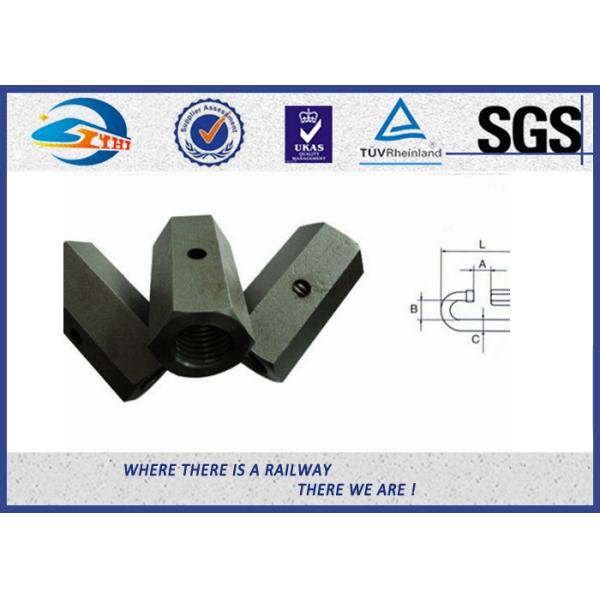

Photos for Reference
