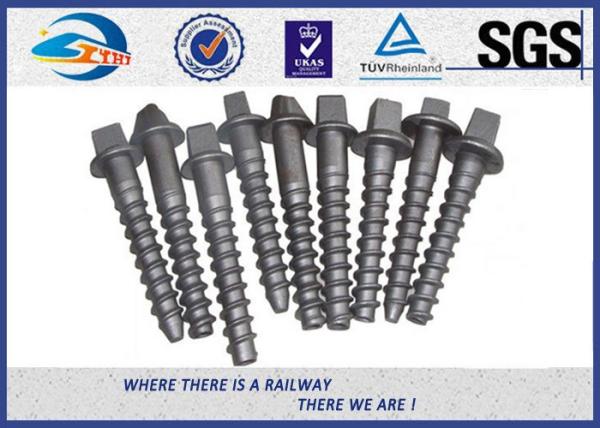

Railway Track Sleeper Screw Spike with Slotting Head plain black galvanized
Railway Track Sleeper Screw Spike with Slotting Head plain black galvanized
Railway Track Sleeper Screw Spike with Slotting Head plain black galvanized
Railway Track Sleeper Screw Spike with Slotting Head plain black galvanized
Railway Track Sleeper Screw Spike with Slotting Head plain black galvanized
Railway Track Sleeper Screw Spike with Slotting Head plain black galvanized
Railway Track Sleeper Screw Spike with Slotting Head plain black galvanized
Railway Track Sleeper Screw Spike with Slotting Head plain black galvanized
Railway Track Sleeper Screw Spike with Slotting Head plain black galvanized
Railway Track Sleeper Screw Spike with Slotting Head plain black galvanized
Railway Track Sleeper Screw Spike with Slotting Head plain black galvanized
Railway Track Sleeper Screw Spike with Slotting Head plain black galvanized
Railway Track Sleeper Screw Spike with Slotting Head plain black galvanized
Railway Track Sleeper Screw Spike with Slotting Head plain black galvanized
Specifications
Brand Name :
ZhongYue
Model Number :
SUYU33
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
10000pcs
Price :
Negociable
Supply Ability :
1000 Tons / Month
Delivery Time :
15-30 Days after placing formal order
Packaging Details :
25KG double-layer woven bag with fumigation-free wooden pallet
Payment Terms :
T/T, 30% in advance
Product :
Screw Spike
Material :
Carbon Steel Q235,35#,45#
Color :
Black, White or Yellow
Grade :
4.6,5.6,8.8
Appliaction :
In Rail Sleeper to Fasten Rails
Another Name :
Sleeper Screw Spike
Description

Steel 35# Railway Sleeper Spikes High Tensile / Stainless Steel Coach Screws

Quick Description

Railway screw spikes provide a mechanical interlock that delivers more than twice the holding power of conventional hammered railway spikes.

Screw spikes are commonly used to fasten timber railway ties/sleepers; however, they can also be used in conjunction with plastic ferrules that have been cast into concrete ties/sleepers.

Various thread profiles, lengths, diameters and drive heads are available to suit specific geographic requirements and Zhongyue can help with product specification and selection

Dimension

Square Head Permagrip Timber Screw Spike 2 2/3 Pitch Quad Lead Thread

Diameter Length Head Diameter Head Height Head Button Height Head Washer Height Head Overall Height Head Width Head Length Thread Length Nominal
11/16" 6-3/4" 2" 23/32" 1/8" 1/4" 31/32" 7/8" 7/8" 4-5/8"

Square Head w/ Bevel Permagrip Timber Spike 2 2/3 Pitch Quad Lead Thread

Diameter Length Head Diameter Head Height Head Button Height Head Washer Height Head Overall Height Head Width Head Length Thread Length Nominal
11/16" 6-3/4" 2" 1-1/8" 1/8" 13/32" 1-1/8" 7/8" 7/8" 5-3/8"

Rectangle Head w/ Bevel Permagrip Timber Screw Spike 2 2/3 Pitch Quad Lead Thread

Diameter Length Head Diameter Head Height Head Button Height Head Washer Height Head Overall Height Head Width Head Length Thread Length Nominal


11/16"

 6-3/4" 2" 23/32" 1/8" 13/32" 1-1/4" 27/32" 1-1/8" 4-5/8"

Technical Specification

Brand ZY
Type Ss5.-150 V20-135
Ss8-140 V23-115
Ss8-150 V23-135
Ss8-160 V23-155
Ss23-160 V23-215
Ss25.-165 V26-115
Ss35.-161
Or the type by customers’ drawings
Grade 4.6 5.6 8.8 10.9
Material Q235 35# 45# 40Cr

Mechanical
properties

Tensile strength:
≥400Mpa

Tensile strength:
≥500Mpa

Tensile strength:
≥800Mpa

Tensile strength:
≥1000Mpa

Yield strength:
≥240Mpa

Yield strength:
≥300Mpa

Yield strength:
≥640Mpa

Yield strength:
≥900Mpa
Elongation:≥22% Elongation:≥20% Elongation:≥12% Elongation:≥9%

Cold bending:
90 degree without crack

Cold bending:
90 degree without crack

Cold bending:
90 degree without crack

Cold bending:
90 degree without
crack
Surface plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing

Standard
refers

 ISO898-1, UIC864-1, and NF F500-50
