Specifications
Brand Name :
ZhongYue
Model Number :
QU70, QU80, QU100, QU120
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
20 tons
Price :
Negociable
Payment Terms :
T/T, 30% in advance
Supply Ability :
30,000pcs per month
Delivery Time :
7 days after received your payment
Packaging Details :
In bundle
Product Name :
Steel Rail
Application :
Railway
Grade :
4.6, 5.6, 8.8, 10.9
Material :
U71Mn
Surface :
Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet
Standard :
YB/T5055-93
Length :
12m
The stock :
In stock
Description

12m Railway Steel Railroad Steel Rail QU70 QU80 YB / T5055-93

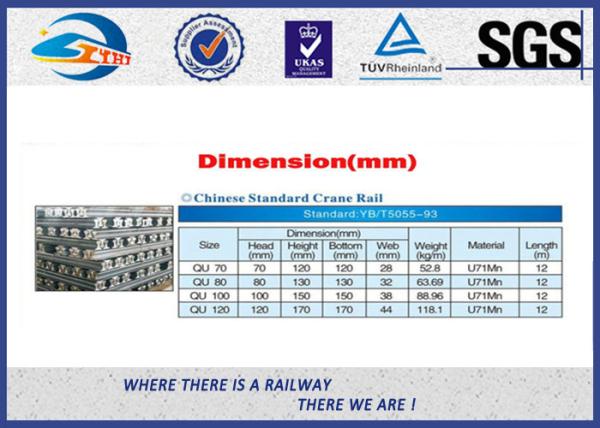

Chinese Standard Crane Rail
Standard YB/T5055-93: QU70, QU80, QU100, QU120


Specifications

Standard: YB/T5055-93

Size

Dimension(mm)

Weight
(kg/m)

Material

Length (m)

Head(mm)

Height(mm)

Bottom(mm)

Web(mm)

QU 70

70

120

120

28

52.8

U71Mn

12

QU 80

80

130

130

32

63.69

U71Mn

12

QU 100

100

150

150

38

88.96

U71Mn

12

QU 120

120

170

170

44

118.1

U71Mn

12


12m Railway Steel Railroad Steel Rail QU70 QU80 YB / T5055-93

Part of the rail:

1 Light Rail

Specification: 12kg/m,15kg/m, 18kg/m, 22kg/m, 24kg/m, 30kg/m
Unit Weight: 12.2kg/m, 15.2kg/m, 18.06kg/m, 22.3kg/m, 24.46kg/m, 30.1kg/m
Length: 6-12m
Material: Q235, 50Q, 55Q
Standard: YB222-63, GB11264-89
2. GB Heavy Rail
Specification: 38kg/m, 43kg/m, 50kg/m
Unit Weight: 38.733kg/m, 44.653kg/m, 51.514kg/m
Length: 12.5m
Material: 50Mn, U71Mn
Standard: GB2585-81
3. Crane Rail
Specification: QU70, QU80, QU100, QU120
Unit Weight: 52.80kg/m, 63.69kg/m, 88.96kg/m, 118.8 kg/m
Length: 12m
Material: U71Mn
Standard: GB3426-82

Specification:

size
Kg/m

specification(mm)

weight(kg/m)

section

a

b

c

d

8

65

54

25

7

8.42

Light steel rail
Material:Q235, 55Q

12

69.85

69.85

38.1

7.54

12.2

15

79.37

79.37

42.86

8.33

15.2

18

90

80

40

9

18.06

22

93.66

93.66

50.8

10.72

22.3

24

107

92

51

10.9

24.46

30

107.95

107.95

60.33

12.3

30.1

38

134

114

68

13

38.73

Heavy steel rail
Material:U71Mn,
50Mn,45Mn

43

140

114

70

14.5

44.65

50

152

132

70

15.5

51.51

60

176

150

73

16.5

60.64

QU70

120

120

70

28

52.8

Crane steel rail
Material:U71Mn

QU80

130

130

80

32

63.69

QU100

150

150

100

38

88.96

QU120

170

170

120

44

118.1








12m Railway Steel Railroad Steel Rail QU70 QU80 YB / T5055-93


1. Rail fastening system

Type :1) E type Rail fastening 2)KPO Rail Fastening 3) Nabla Rail Fastening 4) SKL 14 Rail Fastening 5) SKL13/12 Rail fastening

2. Screw spike/Sleeper screw, dog spike/Track spike

3. Clip bolt/ T bolt /Rail bolt/Clamp bolt /Inserted bolt/Track bolt/Fish bolt/Square bolt

4. Tie plate /Base plate /Rail plate/Rail fixing base

5 . Fish plate /Joint bar

6. Elastic clip/ Clamp plate/Rail clamp/Anchor plate

7 . Rail pad, EVA,HDPE or Rubber pad/ Plastic dowel /Guide plate

8. Brake block including composite brake block and cast iron brake shoe.

9. Rail anchor/ crane clip/ rail clip and rail shoulder

10. Steel Rail including light rail and heavy rail( Crane rail, Gooved rail).
