High Tensile strength EVA Rubber Track Rail Pads , Railway Plate
High Tensile strength EVA Rubber Track Rail Pads , Railway Plate
High Tensile strength EVA Rubber Track Rail Pads , Railway Plate
High Tensile strength EVA Rubber Track Rail Pads , Railway Plate
High Tensile strength EVA Rubber Track Rail Pads , Railway Plate
High Tensile strength EVA Rubber Track Rail Pads , Railway Plate
High Tensile strength EVA Rubber Track Rail Pads , Railway Plate
High Tensile strength EVA Rubber Track Rail Pads , Railway Plate
High Tensile strength EVA Rubber Track Rail Pads , Railway Plate
High Tensile strength EVA Rubber Track Rail Pads , Railway Plate
High Tensile strength EVA Rubber Track Rail Pads , Railway Plate
High Tensile strength EVA Rubber Track Rail Pads , Railway Plate
Specifications
Brand Name :
Zhongyue
Model Number :
Rubber Pad
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
10000pcs
Price :
Negociable
Payment Terms :
T/T, 30% in advance
Supply Ability :
2000T/month
Delivery Time :
15-30days after order confirmation
Packaging Details :
Export Carton or as customer requirement
Material :
EVA,HDPE or Rubber
Dimensions (L x W x H) (mm): :
according to drawing or samples
QC :
ISO,TUV
Specification :
According to drawings
application :
Plastic Dowel
Warranty :
3 years
Surface Treatment :
Plain oiled
Customized :
According to drawings
Description

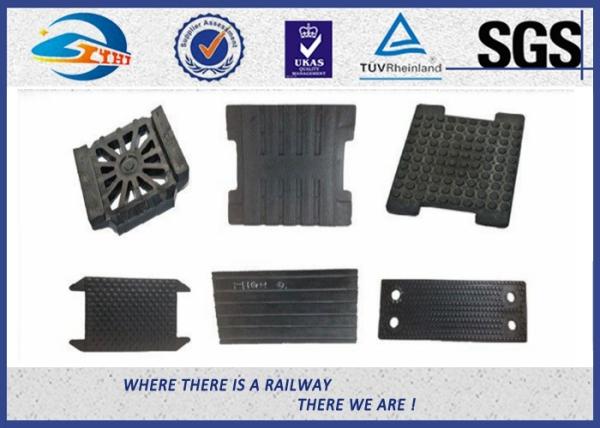

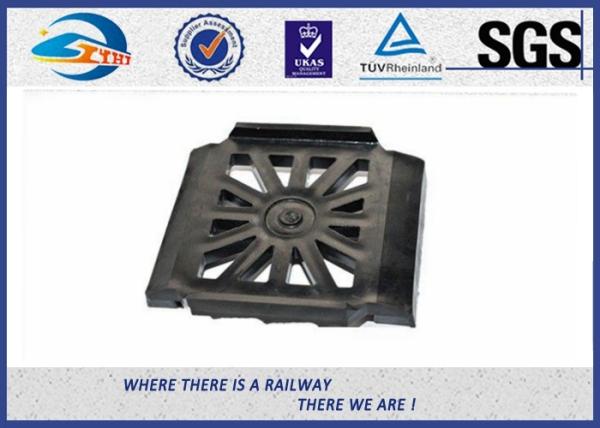

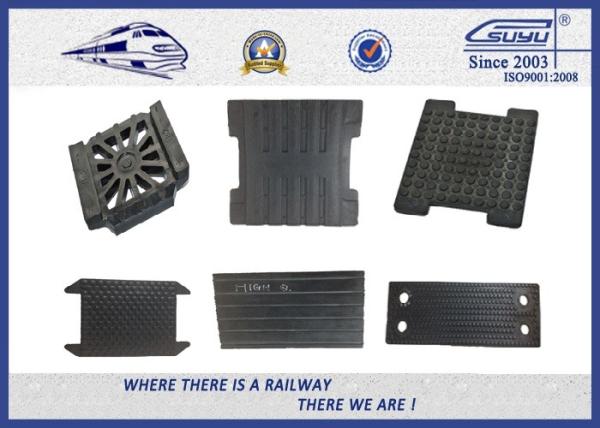

High Tensile strength EVA Rubber Track Rail Pads , Railway Plate ​


Zhongyue specialize in producing rail fastening , .Rail pad lies between the rails and base plates to keep the rail stably , they made of HDPE/EVA/Rubber to preclude and buffer impact ,increase friction and reduce vibration , we produce the rail pad for E type rail fastening system and SKL type rail fastening system . The following is the properties of the HDPE/EVA/Rubber .

Brand

Zhongyue

Name

rail pad

Type

For rail UIC54, UIC60, BS80lbs,BS100lbs, and size as ordered

Material

HDPE

EVA

Rubber

Technical spec.

Density: 0.95-0.98g/cm3
Tensile strength: ≥19Mpa
Elongation: >80%
Melting point: 170-190°C
Insulation resistance:
≥1×1010Ω
Hardness:≥98A

Density:0.95-0.98gcm3
Tensile strength:≥15Mpa
Elongation: >500%
Melting point: 170-190°C
Insulation resistance:
≥1×1010Ω
Hardness: ≥90A

Hardness:75±5A
Tensile strength: ≥12.5N/mm²
Elongation: ≥250%
Operating temperature:
-25°C~100°C

Color

Black


High Tensile strength EVA Rubber Track Rail Pads , Railway Plate



HDPE

No.

Technique parameter

Unit

Technical requirement

Value

1

Density

g/㎝3

0.95-0.98

0.95

2

Tensile strength

Mpa

≥19

19

3

Elongation

%

>80

150

4

Melting point

℃

170-190

190

5

Insulation resistance

Ω

≥1×1010

3.5×1010

6

Hardness

A

≥98

98(A)



EVA : polyethylene 80%, Vinyl Acetate 20%

No

Technique parameter

Unit

Technical requirement

Value

1

Density

g/㎝3

0.95-0.98

0.95

2

Tensile strength

Mpa

≥15

16

3

Elongation

%

>500

550

4

Melting point

℃

170-190

170

5

Insulation resistance

Ω

≥1×1010

5.0×1010

6

Hardness

A

≥90

92(A)


Rubber

No.

Technique parameter

Unit

Value

1

Stiffness

KN

90-130

2

Hardness shore A

℃

72-80degree

3

Electronic Resistance

Ω

≥106

4

Tensile strength before aging

Mpa

≥12.5

5

Elongation before aging

%

≥250


As a leading manufacturer of rail fastening in China , SUYU also can produce many other railway fasteners , such as track bolt . Sleeper screw . track spike .tie plate .rail clips ,elastic rail clip .SKL tension clamp .rail shoulder and so on .

Sticking to the “quality first” policy, Zhongyue pays great attention to quality control management. We have granted ISO9001-2000 certificates and have got the production license of China’s Railway Ministry on railway products. We have a full set of inspection instruments which makes sure all the products produced by us should be of high quality and up to customers’ requirements.


High Tensile strength EVA Rubber Track Rail Pads , Railway Plate

High Tensile strength EVA Rubber Track Rail Pads , Railway Plate
