Customized Black Or Red Rubber Rail Support Pad / HDPE Pad Below Rails
Customized Black Or Red Rubber Rail Support Pad / HDPE Pad Below Rails
Customized Black Or Red Rubber Rail Support Pad / HDPE Pad Below Rails
Customized Black Or Red Rubber Rail Support Pad / HDPE Pad Below Rails
Customized Black Or Red Rubber Rail Support Pad / HDPE Pad Below Rails
Customized Black Or Red Rubber Rail Support Pad / HDPE Pad Below Rails
Customized Black Or Red Rubber Rail Support Pad / HDPE Pad Below Rails
Customized Black Or Red Rubber Rail Support Pad / HDPE Pad Below Rails
Customized Black Or Red Rubber Rail Support Pad / HDPE Pad Below Rails
Customized Black Or Red Rubber Rail Support Pad / HDPE Pad Below Rails
Customized Black Or Red Rubber Rail Support Pad / HDPE Pad Below Rails
Customized Black Or Red Rubber Rail Support Pad / HDPE Pad Below Rails
Customized Black Or Red Rubber Rail Support Pad / HDPE Pad Below Rails
Customized Black Or Red Rubber Rail Support Pad / HDPE Pad Below Rails
Specifications
Brand Name :
ZhongYue
Model Number :
SUYU26
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
10000pcs
Price :
Negociable
Payment Terms :
T/T, 30% in advance
Supply Ability :
200 Tons per week
Delivery Time :
15-30 days after placing the formal order
Packaging Details :
25kg Double-layer woven bag and free fumigation wooden pallet
Product :
Rubber Rail Pad
Material :
Rubber Or HDPE
Color :
Black And Red
Size :
Can Be Customized
Making Process :
Injection Moulding
Advantage :
Durable
Description

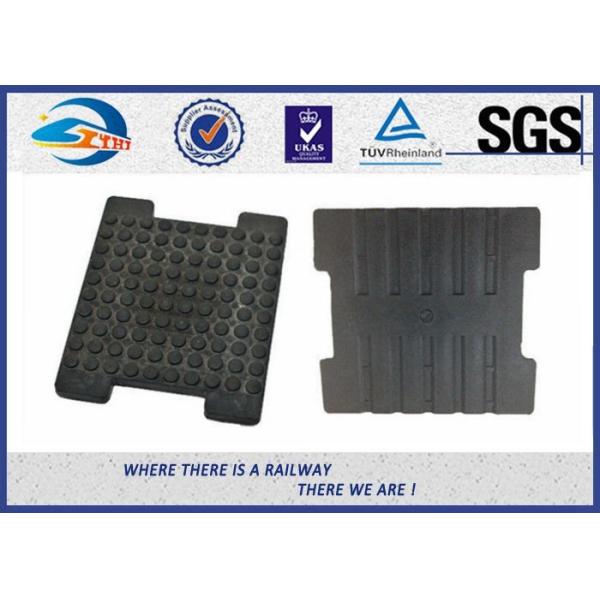

Customized Black Or Red Rubber Rail Support Pad / HDPE Pad Below Rails

Rail and Support Pads

Zhongyue have been supplying track support products to the rail industry for many years.Manufactured in a

variety of natural and synthetic elastomers, SUYU railpads are designed to withstand the most demanding

operating environments.

Zhongyue railpads offer the following benefits:

1. Dramatically Improved Impact

2. Attenuation Noise Suppression

3. Improved Passenger Comfort

4. Extended Track Life

5. Extended Ballast Life

Zhongyue in a joint initiative with a major world producer of rail track fastening systems analysed and

developed a resilient pad concept to protect concrete rail sleepers from damage caused by the dynamic

forces of passing trains. The result was the Patented Studded railpad.

Over 45 Million of these rail pads are now used successfully Worldwide, including the USA, Canada,

Australia, Norway, Sweden, Denmark, Belgium, France, Georgia, Lithuania, Hong Kong, Japan, Korea,

Czech Republic, Uzbekistan, Syria, Singapore, Sudan, Estonia, Finland and extensively within the UK.

The combination of studded design and specially formulated rubber compound, gives SUYU patented

rail pads a unique high resilience and abrasion resistance.

Their superiority to those manufactured from other materials has been proven by their ability to reduce

dynamic forces by up to 65%, which is a crucial consideration for railway systems worldwide as they adopt

higher speeds and greater axle loads.

Customized Black Or Red Rubber Rail Support Pad / HDPE Pad Below RailsCustomized Black Or Red Rubber Rail Support Pad / HDPE Pad Below Rails

Test Report of Rubber (EPDM)

Product

EPDM

Specification

EP00179

No.

Item

Test Method

Required Value

Test Value

1

Shore Hardness

D-2240

60±5

64

2

Tensile Strength(Mpa)

D-412

＞1.25

14.4

3

Elongation at Break(%)

D-412

＞280

288

4

Permanent Compression Set

(%)

D-395

28

28

5

Tear Strength(KN/M)

D-624

/

43

6

Operating Temperature

-30C-100C

HDPE Properties

No.

Items

Unit

Technical Requirements

Actual Data

1

Density

g/㎝3

0.95-0.98

0.95

2

Tensile

Mpa

≥19

19

3

Elongation

%

>80

150

4

Melting Point

℃

170-190

190

5

Insulation Resistance

Ω

≥1×1010

3.5×1010

6

Hardness

A

≥98

98(A)

Product Photos

Customized Black Or Red Rubber Rail Support Pad / HDPE Pad Below Rails

Customized Black Or Red Rubber Rail Support Pad / HDPE Pad Below Rails

Factory

Customized Black Or Red Rubber Rail Support Pad / HDPE Pad Below Rails

Customized Black Or Red Rubber Rail Support Pad / HDPE Pad Below Rails

Certificate

Customized Black Or Red Rubber Rail Support Pad / HDPE Pad Below Rails

Company

Customized Black Or Red Rubber Rail Support Pad / HDPE Pad Below Rails
