Deenik 60Si2MnA Track Clamp Elastic Rail Clips Oxide Black for Rail System
Deenik 60Si2MnA Track Clamp Elastic Rail Clips Oxide Black for Rail System
Deenik 60Si2MnA Track Clamp Elastic Rail Clips Oxide Black for Rail System
Deenik 60Si2MnA Track Clamp Elastic Rail Clips Oxide Black for Rail System
Deenik 60Si2MnA Track Clamp Elastic Rail Clips Oxide Black for Rail System
Deenik 60Si2MnA Track Clamp Elastic Rail Clips Oxide Black for Rail System
Deenik 60Si2MnA Track Clamp Elastic Rail Clips Oxide Black for Rail System
Deenik 60Si2MnA Track Clamp Elastic Rail Clips Oxide Black for Rail System
Deenik 60Si2MnA Track Clamp Elastic Rail Clips Oxide Black for Rail System
Deenik 60Si2MnA Track Clamp Elastic Rail Clips Oxide Black for Rail System
Deenik 60Si2MnA Track Clamp Elastic Rail Clips Oxide Black for Rail System
Deenik 60Si2MnA Track Clamp Elastic Rail Clips Oxide Black for Rail System
Specifications
Brand Name :
ZhongYue
Model Number :
Deenik
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
10000pcs
Price :
Negociable
Supply Ability :
500,000 pcs per month
Delivery Time :
15 - 30 work days after getting payement
Packaging Details :
25kg double-layer bag, 36bags/pallet, 24pallets/container or as your request
Manufacturer :
Zhongyue Railway Material Co.,ltd.
Material :
Elastic steel
Surface :
Plain (oiled), Oxide black, Color , Galvanized
Drawing :
Designed from client
Brand :
Zhongyue
HS Code :
73029 09000
Payment Terms :
T/T, 30% in advance
Description

Deenik 60Si2MnA Track Clamp Elastic Rail Clips Oxide Black for Rail System

Commercial Name: Other steel materials for railway tramway tracks

Brand: Zhongyue

Supplier: Zhongyue Railway Material Co.,ltd.

Address: No#199 Huanlou Road Kunshan Jiangsu P.R China

HS Code: 73029 09000

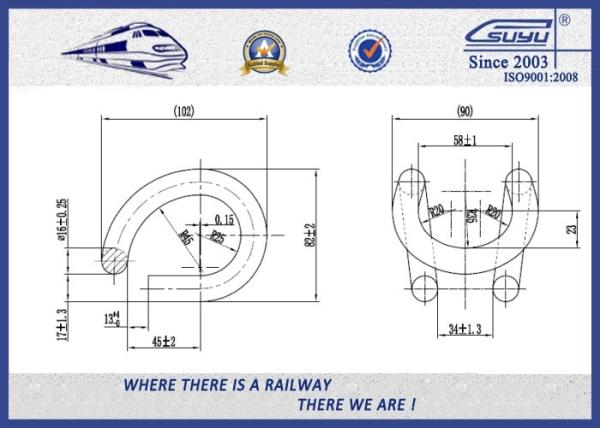

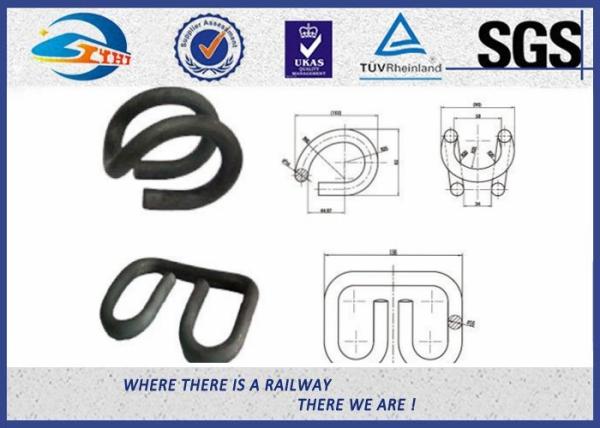

Drawing

Deenik 60Si2MnA Track Clamp Elastic Rail Clips Oxide Black for Rail System

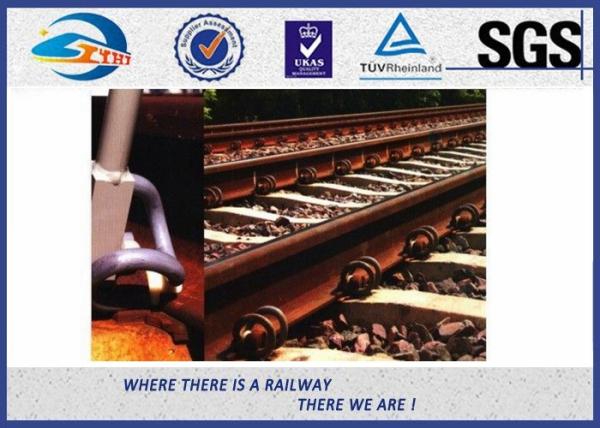

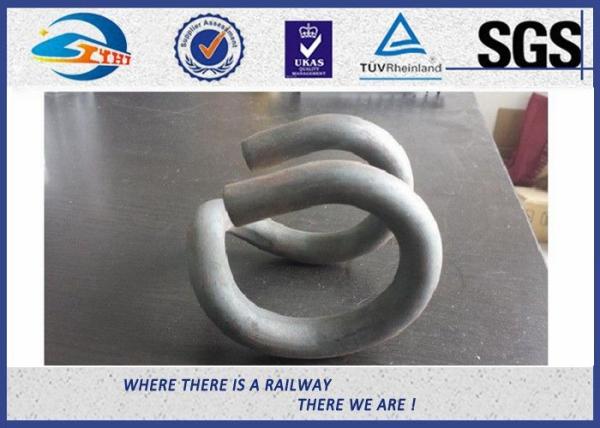

Rail clamp photo

Deenik 60Si2MnA Track Clamp Elastic Rail Clips Oxide Black for Rail System

Produce Process

Clip Production Process
1 raw material
2 shearing
3 heating to forging temperature (950-1000 degrees celsius)
4 forming
5 hardening
6 tempering below 350 degrees celsius
7 inspection
8 packing

Deenik 60Si2MnA Track Clamp Elastic Rail Clips Oxide Black for Rail System

Material Choice: spring steel

  1. 60Si2Mn
  2. 60Si2CrA
  3. 55Si2Mn
  4. 38Si7

Technical Parameter Table of Material

SKL Series SKL1 SKL3 SKL12 SKL14
Material 60Si2MnA 60Si2CrA 55Si2Mn 38Si7
Chemical composition(%) C:0.56-0.64, C:0.56-0.64, C:0.52-0.60, C:0.35-0.42,
Mn:0.60-0.90, Mn:0.40-0.70, Mn:0.60-0.90, Mn:0.50-0.80,
Si:1.60-2.00, Si:1.40-1.80, Si:1.50-2.00, Si:1.50-1.80,
Cr:≤0.35, Cr:0.70-1.00 Cr:≤0.35 　
P:≤0.03, P:≤0.03, P:≤0.03, P:≤0.03,
S:≤0.03 S:≤0.03 S:≤0.03 S:≤0.03
Hardness 42-47HRC
Fatigue life for Dia.18 is 3 millions cycles without breaking
for Dia.20 is 5 millions cycles without breaking

Surface Treatment

  1. plain (oiled)
  2. color paint
  3. oxide Black (most choice)
  4. galavazing
  5. DHG

Inspection machine

  1. Brinell Hardness Tester
  2. Carbon and Sulfur Analyzer
  3. Rockwell Hardness Machine
  4. Automatic Impact Testing Machine
  5. Metallographic Microscope
  6. Automatic High-speed Analyzer
  7. Fatigue Testing Machine
  8. Metallographic Specimen Polishing Machine
  9. Metallographic Specimen Pointing Machine

Package

  1. 25 kg double-layer woven bag with free fumigation wooden pallent
  2. 36bags/pallets
  3. 20pallets/20ft

Application

  1. Speed <120km/h
  2. High-way speed >120km/h

Deenik 60Si2MnA Track Clamp Elastic Rail Clips Oxide Black for Rail System

Similar Elastic Clip

Same series SKL1
SKL2
SKL3
SKL12
SKL14
General series E type
Nabla type
KP / KPO type
Special series PR type
Deenik type
Russian type
Fats clip
Gauge lock clip

Sale Range

  1. Dog spike / Screw spike
  2. Bolt set
  3. Elastic clamp
  4. Rail anchor
  5. Rail shoulder
  6. Fish plate
  7. Tie plate
  8. Plastic / Rubber parts
  9. Brake shoe
  10. Steel rail
  11. Rail fastening system
  12. New wood sleeper

Quotation necessity ( the more, the better )

  1. Material
  2. Drawing with full size
  3. Surface Treatment
  4. Order quantity

If you have any other models of rail/ rail fastener, welcome to contact me.
