Specifications
Brand Name :
ZhongYue
Model Number :
A55, A75, A100, A120
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
20 tons
Price :
Negociable
Payment Terms :
T/T, 30% in advance
Supply Ability :
30,000pcs per month
Delivery Time :
7 days after received your payment
Packaging Details :
In bundle
Product Name :
Steel Rail
Application :
Railway
Material :
700, 900A
Surface :
Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet
Standard :
DIN536
Length :
10-12m
The stock :
In stock
Size :
A55,A65,A75,A100,A120
Description

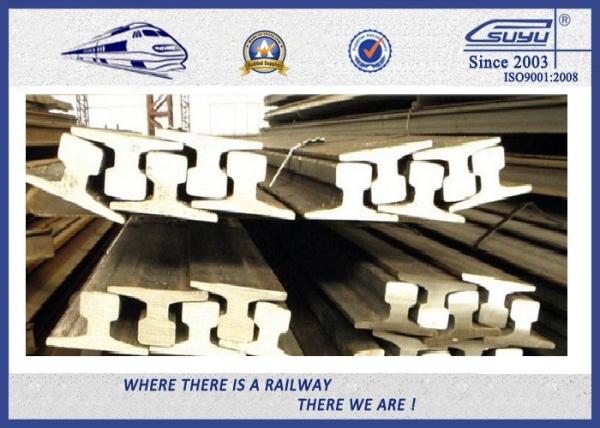

Din 536 Crane Rail A100 A120, Crane Rail A65, Material 700, 900A

DIN Standard Steel Rail

Standard: DIN536

Specifications

Standard: DIN536

Size

Dimension(mm)

Weight
(kg/m)

Material

Length (m)

Head(mm)

Height(mm)

Bottom(mm)

Web(mm)

A55

55

65

150

31

31.8

900A

10-12

A65

65

75

175

38

43.1

900A

10-12

A75

75

85

200

45

56.2

900A

10-12

A100

100

95

200

60

74.3

900A

10-12

A120

120

105

220

72

100

900A

10-12

Din 536 Crane Rail A100 A120 , Crane Rail A65 Material 700 900A

Packing:

Din 536 Crane Rail A100 A120 , Crane Rail A65 Material 700 900A

All of the following goods can be produced or customized.

1. Rail fastening system

Type :1) E type Rail fastening 2)KPO Rail Fastening 3) Nabla Rail Fastening 4) SKL 14 Rail Fastening 5) SKL13/12 Rail fastening

2. Screw spike/Sleeper screw, dog spike/Track spike

3. Clip bolt/ T bolt /Rail bolt/Clamp bolt /Inserted bolt/Track bolt/Fish bolt/Square bolt

4. Tie plate /Base plate /Rail plate/Rail fixing base

5 . Fish plate /Joint bar

6. Elastic clip/ Clamp plate/Rail clamp/Anchor plate

7 . Rail pad, EVA,HDPE or Rubber pad/ Plastic dowel /Guide plate

8. Brake block including composite brake block and cast iron brake shoe.

9. Rail anchor/ crane clip/ rail clip and rail shoulder

10. Steel Rail including light rail and heavy rail( Crane rail, Gooved rail).
