American Standard stainless steel rails 900A Material ASCE40 115RE
American Standard stainless steel rails 900A Material ASCE40 115RE
American Standard stainless steel rails 900A Material ASCE40 115RE
American Standard stainless steel rails 900A Material ASCE40 115RE
American Standard stainless steel rails 900A Material ASCE40 115RE
American Standard stainless steel rails 900A Material ASCE40 115RE
American Standard stainless steel rails 900A Material ASCE40 115RE
American Standard stainless steel rails 900A Material ASCE40 115RE
American Standard stainless steel rails 900A Material ASCE40 115RE
American Standard stainless steel rails 900A Material ASCE40 115RE
American Standard stainless steel rails 900A Material ASCE40 115RE
American Standard stainless steel rails 900A Material ASCE40 115RE
Specifications
Brand Name :
ZhongYue
Model Number :
ASCE
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
20 tons
Price :
Negociable
Payment Terms :
T/T, 30% in advance
Supply Ability :
30,000pcs per month
Delivery Time :
7 days after received your payment
Packaging Details :
In bundle
Product Name :
Steel Rail
Application :
Railway
Grade :
4.6, 5.6, 8.8, 10.9
Material :
700, 900A, 1100
Surface :
Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet
Standard :
ASTM A1, AREMA
Description

American Standard stainless steel rails 900A Material ASCE40 115RE

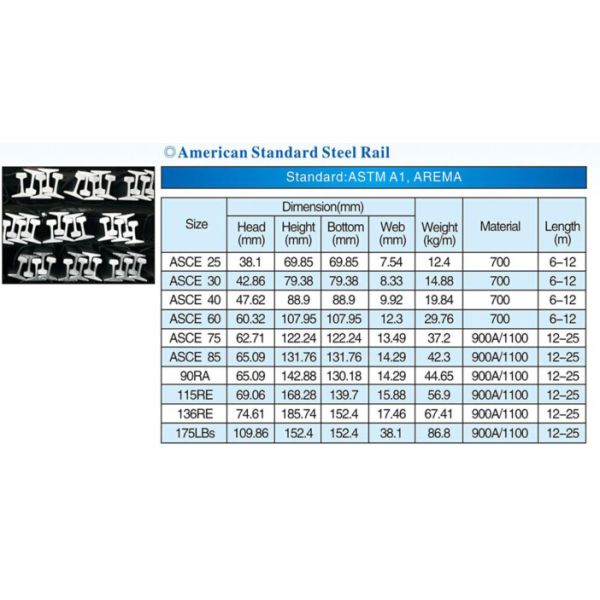

American Standard Steel Rail

Standard ASTMA1, AREMA: ASCE25, ASCE30, ASCE40, ASCE60, ASCE75, ASCE85, 90RA, 115RE, 136RE, 175LBS

Specifications

Standard: ASTMA1, AREMA

Size

Dimension(mm)

Weight
(kg/m)

Material

Length (m)

Head(mm)

Height(mm)

Bottom(mm)

Web(mm)

ASCE 25

38.1

69.85

69.85

7.54

12.4

700

6-12

ASCE 30

42.86

79.38

79.38

8.33

14.88

700

6-12

ASCE 40

47.62

88.9

88.9

9.92

19.84

700

6-12

ASCE 60

60.32

107.95

107.95

12.3

29.76

700

6-12

ASCE 75

62.71

122.24

122.24

13.49

37.2

900A/1100

12-25

ASCE 85

65.09

131.76

131.76

14.29

42.17

900A/1100

12-25

90RA

65.09

142.88

130.18

14.29

44.65

900A/1100

12-25

115RE

69.06

168.28

139.7

15.88

56.9

900A/1100

12-25

136RE

74.61

185.74

152.4

17.46

67.41

900A/1100

12-25

175LBs

109.86

152.4

152.4

38.1

86.8

900A/1100

12-25

American Standard stainless steel rails 900A Material ASCE40 115RE

Product Show:

American Standard stainless steel rails 900A Material ASCE40 115RE

Application:

American Standard stainless steel rails 900A Material ASCE40 115REAmerican Standard stainless steel rails 900A Material ASCE40 115RE

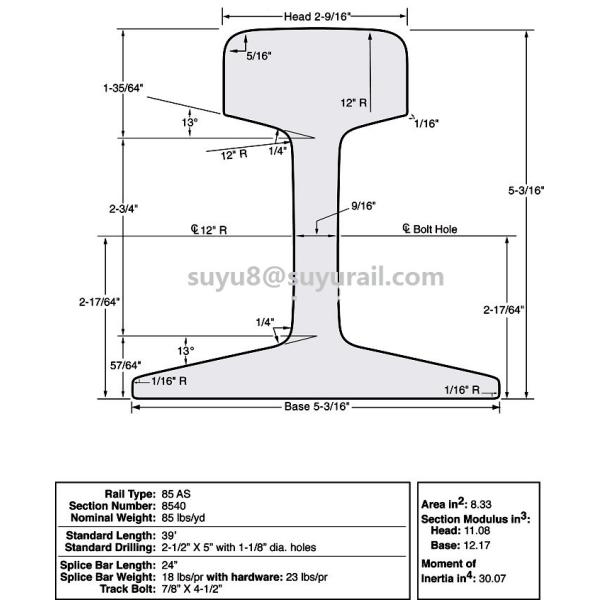

ASTM standard ASCE 85 Steel rail

Rail Type Rail Height Flange Width Head Width at Top Head Width at Base Head Height Web Thickness Flange Thickness at Edge Flange Thickness at Center Weight (per yard)
RH FW HT HB HH WT FE FM lbs
ASCE 85 rail 5.188 5.188 2.563 2.563 1.547 0.563 0.291 0.891 85
132 132 65 65 39 14 7 23 42.16

U71Mn Mechanical property Chemical composition
Yield strength Tensile strength Elongation Hardness C Si Mn S P
MPa kg/mm² MPa kg/mm² min HB ≤ ≤
880min 9 260 0.65-0.77 0.15-0.35 1.10-1.50 0.04 0.04

American Standard stainless steel rails 900A Material ASCE40 115RE
