Specifications
Brand Name :
ZhongYue
Model Number :
Weld-on Shoulder
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
2000pcs
Price :
Negociable
Payment Terms :
T/T, 30% in advance
Supply Ability :
30,000pcs per month
Delivery Time :
7 days after received your payment
Packaging Details :
Export Carton or as customer requirement
Product Name :
3 years Warranty customized Weld on Shoulder For Rail 50kg Rail
Application :
Railway
Grade :
4.6, 5.6, 8.8, 10.9
Material :
QT400-15
Surface :
Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet
Standard :
ISO/SGS/TUV
Length :
Acc to drawings
Warranty :
3 years
Description

3 years Warranty customized Weld on Shoulder For Rail 50kg Rail


Brand

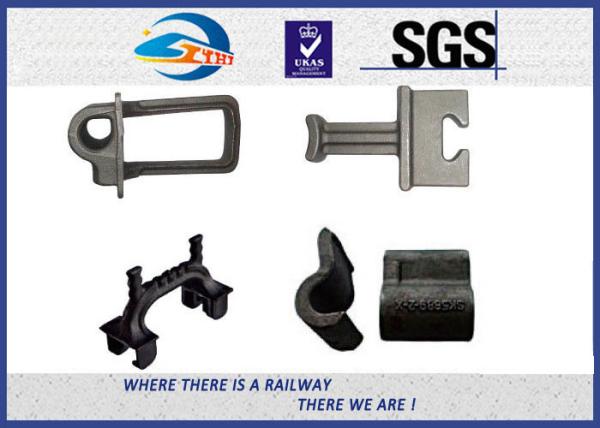

Rail shoulder /Casting Shoulder/Weld-on Shoulder

Type

For rail UIC54, UIC60, 115RE,50kg rail, 60kg rail,BS80lbs, BS100lbs

Or the type by customers’ drawings

Material

QT500-7 (GGG50)

QT450-10(GGG45)

QT400-15(GGG40)

Chemical composition(%)

C:3.60-3.80,
Mn:≤0.6,
Si:2.50-2.90, P:≤0.08, S:≤0.025

C:3.40-3.90,
Mn:0.2-0.5, Si:2.70-3.00, ,P:≤0.07, S:≤0.03

C:3.5-3.60,
Mn: ≤0.5, Si:3.00-3.20 ,
P:≤0.07, S:≤0.02

Surface

plain (oiled)

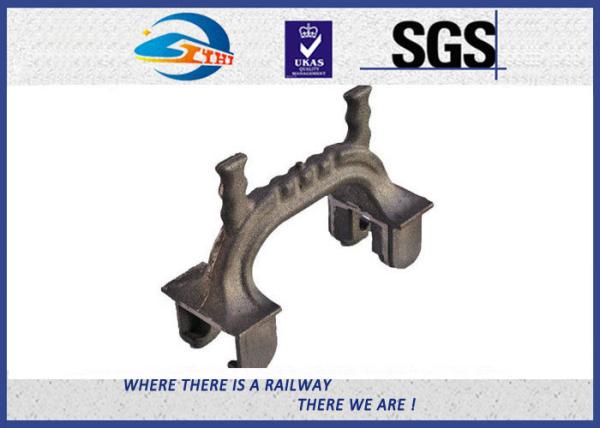

Casting shoulders are pressed in concrete sleeper and assembly with E clip in order to fasten the rail , the normal material we use is casting iron , the mechanical property and chemical composition are below :

Material

Tensile strength(Mpa)

Yield strength(Mpa)

Elongation(%)

QT400-15(GGG40)

400

250

15

QT450-10(GGG45)

450

310

10

QT500-7 (GGG50)

500

320

7

C

Si

Mn

P

S

QT400-15

3.6-.36

3.0-3.2

0.5

0.07

0.02

Qt450-10

3.4-3.9

3.7-3.0

0.5

0.07

0.03

QT500-7

3.4-3.8

2.5-2.9

0.6

0.08

0.025


Rail shoulders are produced by hot forging , which used together with clip bolt and special rail clip to fix the rail , the material can be low carbon steel and mid carbon steel according to our customers' requirement .

Weld-on shoulder is used for the typical position of rail , it is welded on flat steel plate instead of the standard tie plate , which produced according to AREA standard .


3 years Warranty customized Weld on Shoulder For Rail 50kg Rail3 years Warranty customized Weld on Shoulder For Rail 50kg Rail
