Specifications
Brand Name :
ZhongYue
Model Number :
SUYU60
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
10000pcs
Price :
Negociable
Payment Terms :
T/T, 30% in advance
Supply Ability :
375 tons per week
Delivery Time :
20-30 days after placing the formal order
Packaging Details :
25KG double-layer woven bag with fumigation-free wooden pallet
Product :
HDPE Plastic Sleeves
Color :
White, Yellow, Black, Dark Brown
Material :
HDPE, or PA66
Size :
24x165, 24x135, or customized
Surface :
Plain (Oiled)
Application :
In concrete sleeper with sleeper screws to fix the rail
Description

Railway HDPE Plastic Sleeves In Concrete Ties White Or Yellow Color

General Introduction of HDPE Plastic Sleeves

HDPE Plastci Sleeves is used to fasten rails. Together with the screw spikes, it gives more strength to ensure that rail is fixed firmly. It is put in concrete railroad ties and the material is usually HDPE or PA66.

Material Specification (HDPE)

No.

Technique parameter

Unit

Technical requirement

Value

1

Density

g/

0.95-0.98

0.95

2

Tensile strength

Mpa

≥19

19

3

Elongation

%

>80

150

4

Melting point

°C

170-190

190

5

Insulation resistance

Ω

≥1×1010

3.5×1010

6

Hardness

A

≥98

98(A)

Material Specification (PA66): Nylon 66.69%, glass fiber 30%, other 1%

No.

Technique parameter

Unit

Technical requirement

Value

1

Density

g

1.3—1.45

1.45

2

Tensile strength

Mpa

≥170

178

3

Elongation

%

≤4.4

4.0

4

Bending Strength

Mpa

≥250

290

5

Impact Strength(No gap)

KJ/m2

≥80

85

6

Melting point

°C

250°C—270

270

7

Insulation resistance

Ω

≥1×108

5×108

8

Glass fiber content

%

30—35

35

9

Hardness

HRR

≥110

118

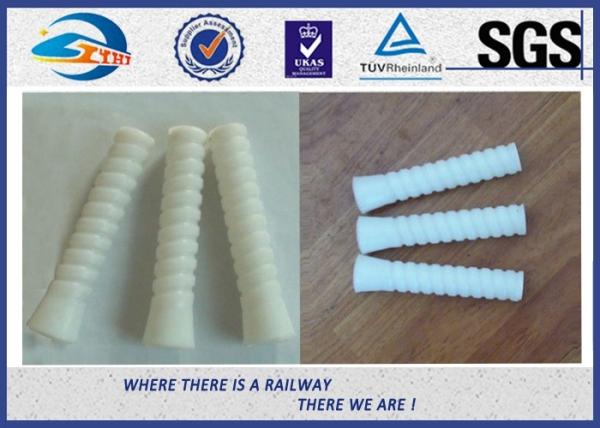

Product Photos for Reference

Railway HDPE Plastic Sleeves In Concrete Ties White Or Yellow Color

Railway HDPE Plastic Sleeves In Concrete Ties White Or Yellow Color

Railway HDPE Plastic Sleeves In Concrete Ties White Or Yellow Color

Factory

Railway HDPE Plastic Sleeves In Concrete Ties White Or Yellow Color

Railway HDPE Plastic Sleeves In Concrete Ties White Or Yellow Color

Certificate

Railway HDPE Plastic Sleeves In Concrete Ties White Or Yellow Color
