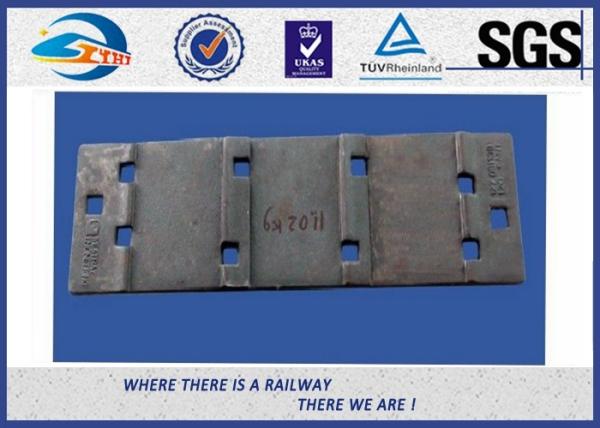

OEM UIC60 Railroad Tie Plates Rail Fixing Base for Railway Fastenings
OEM UIC60 Railroad Tie Plates Rail Fixing Base for Railway Fastenings
OEM UIC60 Railroad Tie Plates Rail Fixing Base for Railway Fastenings
OEM UIC60 Railroad Tie Plates Rail Fixing Base for Railway Fastenings
Specifications
Brand Name :
ZhongYue
Model Number :
UIC54
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
1000pcs
Price :
Negociable
Payment Terms :
T/T, 30% in advance
Supply Ability :
1000 tons per month
Delivery Time :
15-30 days after placing the formal order
Packaging Details :
Double woven bags with woden pallet , container.
Product :
Railroad Base Plate
Material :
Q235 Or QT500-7
Color :
Plain
Application :
Suits For UIC60, S49, S54, 90A etc.
Hole Diameter :
10mm and Can be customized
OEM :
Support OEM
Workmanship :
Cast or Forged
Another name :
Tie Plate
Description

OEM UIC60 Railroad Tie Plates Rail Fixing Base for Railway Fastenings​

QT400-15 Plain Oiled Tie Plate /Base Plate /Rail Plate/Rail Fixing Base for Railway Fastenings

Brand

ZHONGYUE

Name

fasteners components railway plain tie plate

Type

For rail UIC54, UIC60, 50kg rail, 60kg rail,S49 and size as ordered

Material

QT500-7

QT450-10

low carbon steel

or high carbon steel

by forged

Low carbon

steel S275JR,

Q235,etc.

by rolled

Chemical composition(%)

C:3.60-3.80, Mn:≤0.6,

Si:2.50-2.90, P:≤0.08,

S:≤0.025

C:3.40-3.90,

Mn:0.2-0.5,

Si:2.70-3.00, ,

P:≤0.07, S:≤0.03

/

/

Surface

plain (oiled)

Standard refers

UIC864-6

A tie plate, baseplate or sole plate is a steel plate used on rail tracks between flanged T rail and the crossties. The tie plate increases bearing area and holds the rail to correct gauge. They are fastened to wooden ties by means of spikes or bolts through holes in the plate.

The part of the plate under the rail base is tapered, setting the cant of the rail, an inward rotation from the vertical. The usual slope is one in forty ( 1.4 degrees ). The top surface of the plate has one or two shoulders that fit against the edges of the base of the rail. The double-shoulder type is currently used. Older single-shoulder types were adaptable for various rail widths, with the single shoulder positioned on the outside (field side) of the rails. Most plates are slightly wider on the field side, without which the plates tend to cut more into the outsides of the tie, reducing cant angle.

Cast iron can be the welded or fabricated type, depending upon the customers requirements. Our rail tie plate can be made to suit various rail section, i.e. UIC 60, UIC 54, RN 45, 90 A, etc.

Technical Specification

Type

Dimension

Holes

Incline

Rail

Weight(Kg)

Rph 1/160

345/285/127/160x15/13

Ø 26 (4x)

1:40

S 49/S 54

7,86

Rp 01/01/160

345/285/127/160x15/13

Ø 26 (4x)

1:40

S 49/S 54

7,70

Rph 1/210

345/285/127x210x15/13

Ø 26 (4x)

1:40

S 49/S 54

10,55

Rph 1/210

345/285/127x210x15/13

Ø 36,3 (2x)

1:40

S 49/S 54

10,55

Rph 1/210 FVZ

345/285/127x210x15/13

Ø 26 (4x)

1:40

S 49/S 54

10,69

Sph 1(a)

345/350/127x410x15/13

Ø 26 (8x)

1:40

UIC 60

20,60

Rph 6/160

370/310/152x160x15/13

Ø 26 (4x)

1:40

UIC 60

8,44

Rph 6/210

370/310/152x210x15/13

Ø 26 (4x)

1:40

UIC 60

11,32

SZ 60

370/350/152x420x15/13

Ø 26 (8x)

1:40

UIC 60

22,73

Rph 11 Ü

664/554x160

Ø 26 (4x)

1:40

S 54

15,37

Rph 13 Ü

690/570x160

Ø 26 (4x)

1:40

UIC 60

15,27

Rpo 5

345/285/127x160x15/13

Ø 26 (4x)

1:20

S 49/S 54

8

Product Photos

OEM UIC60 Railroad Tie Plates Rail Fixing Base for Railway Fastenings

OEM UIC60 Railroad Tie Plates Rail Fixing Base for Railway Fastenings

Application:

OEM UIC60 Railroad Tie Plates Rail Fixing Base for Railway Fastenings

We can provide products as following :

1. E clip

Type :e1609. e1809. e1817. e2055. e2056. e2009. e2001. e2006. PR401. PR309....

Raw material : 60Si2MnA
Surface : plain (oil ). black paint . colour paint .zinc .hdg etc.
2. Rail clip/Tension clamp

Type : skl1. skl3. skl12. skl14
Raw material : 38Si7. 60Si2CrA
Surface: plain (oil ). black paint . colour paint . zinc .hdg etc.
3. Screw spike/Sleeper screw

Type : Ss5. Ss8. Ss25 . Ss36 ... all kinds available according to customers drawings and samples .
Raw material : Q235. 35#.45# . 40Mn2. 20Mnsi
Grade : 4.6.5.6.8.8
Surface: plain (oil ). black . zinc .hdg etc.
4.Dog spike/Railroad spike

Type : All kinds available available according to customers drawings and samples .
Raw material : Q235 .
Surface : plain (oil)
5.Clip bolt/ T bolt /Rail bolt/Clamp bolt /Inserted bolt/Track bolt/Fish bolt/Square bolt

Type : All kinds available available according to customers drawings and samples .
Raw material: Q235. 35#.45# . 40Mn2. 20Mnsi .35CrMo. 40Cr. 42CrMo
Grade : 4.6.4.8.5.6.8.8.10.9.12.9
Surface : plain (oil ). black . zinc .hdg etc.
6. Tie plate /Base plate /Rail plate/Rail fixing base

Type : All kinds available according to customers drawings and samples .
Raw Material : QT400-15 .QT450-10 .QT500-7. ZG25 .ZG35. ZG45
Surface : plain (oil)
7 .Fish plate /Joint bar

Type : Many kinds available
Raw material : 45# .50#
Surface : Plain (oil)
8. Clamp plate/Rail clamp/Anchor plate

Type : KPO3. KOP06 All kinds available according to customers drawings and samples
Raw material : Q235.45#
Surface : plain (oil ). black paint . zinc .hdg etc.
9 .Rail pad

Type : All kinds available according to customers drawings and samples
Raw material : EVA
Surface : plain
10. Plastic dowel /Guide plate

Type : All kinds available according to customers drawings and samples
Raw material : PA66
Surface : plain
11. Rail Shoulder

Type : All kinds available according to customers drawings and samples
Raw material : QT400-15 .QT450-10 .QT500-7
Surface : Plain
