Specifications
Brand Name :
ZhongYue
Model Number :
Sleeper Hexagon Screws
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
10000pcs
Price :
Negociable
Payment Terms :
T/T, 30% in advance
Supply Ability :
500,000 pcs/month
Packaging Details :
25kg in double-layer woven bag with fumigation-free wooden pallet
Product Name :
sleeper screw,Railroad spike or track spike
Standard :
ISO898-1, UIC864-1, And NF F500-50
Grade :
4.6, 5.6, 8.8, 10.9, 12.9
Material :
Q235, 35#
Description

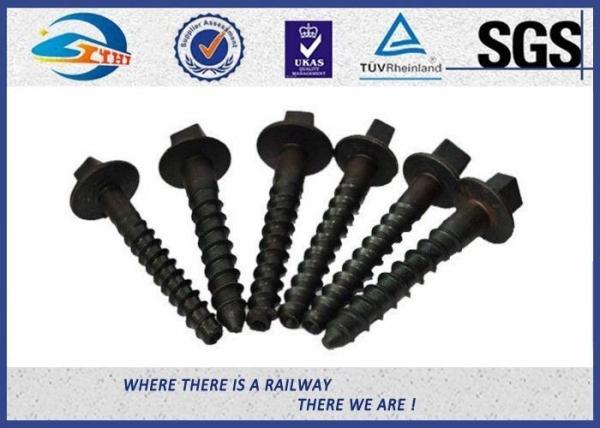

Ss series sleeper screw,Railroad spike or track spike Screw spike in the track

Railroad spike, or called track spike, is a large nail with an offset head that is used to secure steel rails and base plates to railway sleepers in the track. Generally speaking, railroad spikes have various shapes serving for different functions, such as dog spike, screw spike, Ss series sleeper screw, square head screw spike, hexagon screw spike, double-head screw spike and so on. Among these various railroad spikes, dog spikes and screw spikes are the most two common types.


The material for railroad spikes production can be carbon steel or stainless steel based on different requirements. According to customers’ needs, the surface of the spikes can be plain, black, hot dipped galvanized, or sherardized, etc.

Ss series sleeper screw is one of our best selling products, below are the dimensions of Ss series sleeper screws:

Type Specification Weight/kg Surface Standard
Ss1/130 M22*130 0.451 Natural,
Zinc,
Paint,
Oil,
or according to your needs.		 UIC,
AREMA,
GB,
or according to your drawings or samples.
Ss1/150 M22*150 0.478
Ss2/180 M22*180 0.595
Ss5/150 M24*150 0.545
Ss6/150 M26*150 0.702
Ss7/180 M24*180 0.636
Ss8/140 M24*140 0.528
Ss8/150 M24*150 0.548

Note ( 8.8 as a sample)

the first 8: tensile strength of material 45# is 800MPa;

the second 0.8: the yield ratio is 0.8;

the yield strength of material 45# is 800MPa x 0.8 = 640 MPa.


MOQ: 5000PCS
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement

Material
Grade 4.6 5.6 8.8 10.9
Material Q235 35# 45# 40Cr
Mechanical properties

Tensile strength:
≥400Mpa

Tensile strength:
≥500Mpa

Tensile strength:
≥800Mpa

Tensile strength:
≥1000Mpa

Yield strength:
≥240Mpa

Yield strength:
≥300Mpa

Yield strength:
≥640Mpa

Yield strength:
≥900Mpa

Elongation:
≥22%

Elongation:
≥20%

Elongation:
≥12%

Elongation:
≥9%
Cold bending: 90 degree without crack
Surface plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing




Ss series sleeper screw,Railroad spike or track spike Screw spike in the track

Ss series sleeper screw,Railroad spike or track spike Screw spike in the track

Production Process

  1. Raw material
  2. Wiredrawing
  3. Cutting
  4. Head forming
  5. Heat treatment
  6. Surface treatment
  7. Final inspection
  8. Packing
  9. Shippment.

Ss series sleeper screw,Railroad spike or track spike Screw spike in the track

Surface Treatment

  1. plain (oiled)
  2. color paint
  3. oxide Black (most choice)
  4. galavazing
  5. DHG

Ss series sleeper screw,Railroad spike or track spike Screw spike in the track

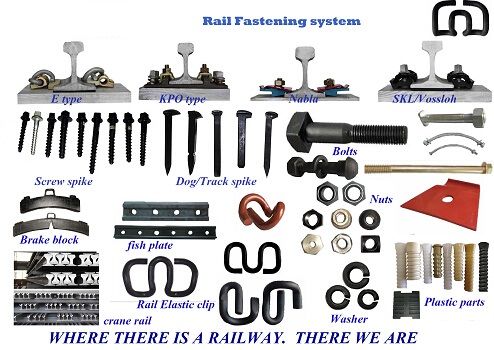

Zhongyue's products ranges:

Ss series sleeper screw,Railroad spike or track spike Screw spike in the track

  • Rail Fastening system
  • Rail Sleeper Screw
  • Rail Spike/Track spike/ Dog spike
  • Railway Bolt
  • Elastic Rail Clip
  • Rail Shoulder
  • Rail Anchor
  • Rail Tie Plate
  • Rail Clip
  • Railway Washer
  • Rail Nylon Insulator
  • Rail Pad
  • Rail Plastic Sleeve
  • Rail Fish Plate
  • Brake Block
  • Rail Nuts
  • Rail Fastening System
  • Crane rail
