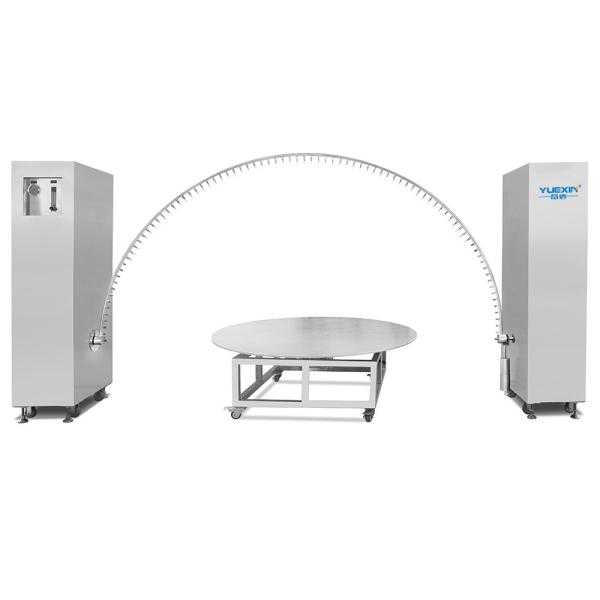

R1400 mm Simple Swing Pipe Water Spray Testing Equipment for IPX3 IPX4

Generl specifications:

The main product information:

Equipped with a solitary oscillating tube capable of a ±90° swing arc, this rain test apparatus facilitates meticulous control over oscillation, making it ideal for devices necessitating targeted waterproofing evaluations.

• The counterweight is added at the bottom of the case to lower the center of gravity of the case and make the device more stable when swinging.
• There is a water storage tank inside the equipment and a water level control system. When it is short of water, it will alarm.
• The sample power socket (220V, 10A) is mounted under the control cabinet, which is convenient for the user to do the live test of the sample; and after the sample is powered on, the turntable rotation will be automatically adjusted to forward and reverse rotation to prevent winding ⁵.
• The swing tube is driven by a servo motor, with precise swing angle and low noise.
• Controller: 7-inch touch screen + PLC, using Yuexin self-developed software, which can be switched to multiple languages⁶.
• Stainless steel counterweights are added at both ends of the swing tube to improve the fluency of swing and reduce the shaking range of the swing tube.
• Universal casters are mounted on the bottom, which has good load-bearing and easy to move and fix the equipment.
• Protection measures: short circuit protection, water shortage alert.

Standard data :

Operating scene:

The Swing Nozzle Rain Test Machine stands out as the optimal choice for subjecting large products to simulated rain tests. It proficiently evaluates the water resistance, sealing effectiveness, and endurance of diverse products, encompassing car parts, outdoor electronics, and building materials. With a plethora of models available, it fulfills a wide array of testing needs.

Instructions:

1 The pictures in this document are for customer reference only, and there may be color differences between the actual model and the pictures.

2 This document only lists some test standards, which does not mean that other test requirements and standards cannot be conducted. Welcome to communicate and discuss with us.

3 One test only at the same time. The next project can be only carried out after the current test is completed. In addition, we can provide multi-functional customized test solutions according to user requirements.

4 Standard load-bearing upper limit of turntable is 50kg,but also can be customized per requirements.

5 Please inform in advance if the voltage(220V) does not match the actual needs so that we can provide customized solutions for you.

6 At present, only Chinese and English interfaces are supported; if other languages are introduced, the software can be updated remotely.

7 The swing pipe can be equipped with a variety of specifications, which can be selected according to the sample size range (satisfying the spray distance <200mm), please confirm clearly before placing an order.

8 The specifications of swing pipe for IPX3/4 rain test, as shown in the figure below:

9 The standard model is adjusted by a flowmeter, and the upper surface of the float is aligned with the scale to read the data; if you need to export the test data, you can choose a flow sensor.

10 When reading the flowmeter, the second digit after the decimal point is the estimated reading data, not accurate data; if the user is concerned about the accuracy of the data, a flow sensor can be selected through negotiation.

11 The photos may not match the actual ones, and are for user reference only.

Detail photo:

control panel
