High Quality IPX3-4 R1600 mm Swing Tube Rain Test Machine with 3 Flow Sensors

Generl specifications:

The product detail information:

The rain testing equipment incorporates 3 precision flow sensors, enabling precise monitoring of water spray intensity across diverse locations, offering a comprehensive overview of spray conditions within the entire test zone for enhanced accuracy.

• The counterweight is added at the bottom of the case to lower the center of gravity of the case and make the device more stable when swinging.
• There is a water storage tank inside the equipment and a water level control system. When it is short of water, it will alarm.
• The sample power socket (220V, 10A) is mounted under the control cabinet, which is convenient for the user to do the live test of the sample; and after the sample is powered on, the turntable rotation will be automatically adjusted to forward and reverse rotation to prevent winding ⁵.
• The swing tube is driven by a servo motor, with precise swing angle and low noise.
• Controller: 7-inch touch screen + PLC, using Yuexin self-developed software, which can be switched to multiple languages⁶.
• Stainless steel counterweights are added at both ends of the swing tube to improve the fluency of swing and reduce the shaking range of the swing tube.
• Universal casters are mounted on the bottom, which has good load-bearing and easy to move and fix the equipment.
• Spray water can not be recycled, the test need to maintain a continuous water inlet, the internal water tank, if due to accidental water cut off, it will not affect the progress of the test, you can continue to spray water.
• The equipment can be equipped with a variety of pendulum tube specifications: R200-R1600mm (need to be specified in advance).
• The swing angle of the pendulum tube can be customised to meet more scenarios of testing needs.
• All 304 stainless steel body, excellent material, will not rust.

Technical data :

Working scenario:

The IPX34 rainfall testing chamber boasts diverse applications spanning industries from automotives & components to electronics, outdoor gear, construction materials, and even military & aerospace sectors. It mimics real-world rainfall scenarios to rigorously evaluate the waterproof capabilities of products and parts, guaranteeing their steadfast reliability and longevity in operational environments.

Cautions:

1 The pictures in this document are for customer reference only, and there may be color differences between the actual model and the pictures.

2 This document only lists some test standards, which does not mean that other test requirements and standards cannot be conducted. Welcome to communicate and discuss with us.

3 One test only at the same time. The next project can be only carried out after the current test is completed. In addition, we can provide multi-functional customized test solutions according to user requirements.

4 Standard load-bearing upper limit of turntable is 50kg,but also can be customized per requirements.

5 Please inform in advance if the voltage(220V) does not match the actual needs so that we can provide customized solutions for you.

6 At present, only Chinese and English interfaces are supported; if other languages are introduced, the software can be updated remotely.

7 The swing pipe can be equipped with a variety of specifications, which can be selected according to the sample size range (satisfying the spray distance <200mm), please confirm clearly before placing an order.

8 The specifications of swing pipe for IPX3/4 rain test, as shown in the figure below:

9 The photos may not match the actual ones, and are for user reference only.

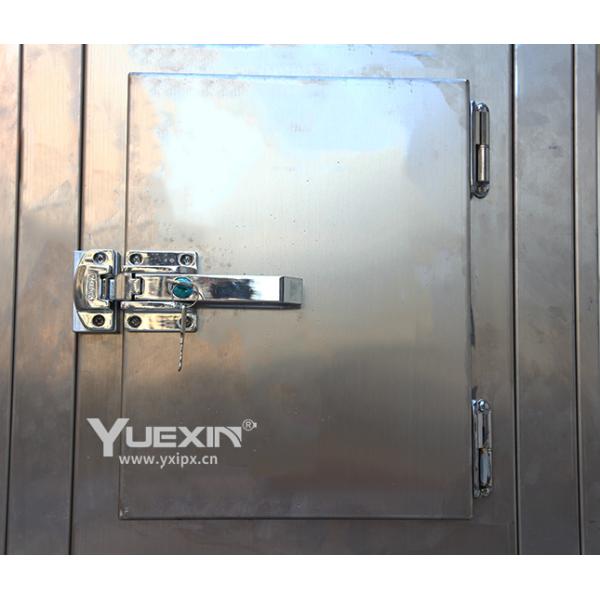

Detail picture:
