800mm JIS D 0203 Water Drip Test Chamber, JIS Standard Dripping Rain Tester

Generl specification:

• Dimension:

Outer: Approx W 1450×D 1180×H 1900 (mm)

Drip Area: 800×800mm

• Material:

External: steel plate

Internal: 304 stainless steel

Usage:

The Japanese Standard Chamber for Rain Simulation serves as a primary tool for assessing products' waterproofing abilities, sealing integrity, and endurance against weather fluctuations by replicating diverse rainfall scenarios. It facilitates reliability testing across sectors like electronics, automotive, and aerospace, guaranteeing products' flawless functioning amidst varying climatic challenges.

Product introduction:

In accordance with Japanese Industrial Standards (JIS), the specialized Waterproof Testing Chamber is engineered to assess the water-resilience of various products. By simulating diverse waterproofing scenarios, it enables an accurate measurement of a product's endurance and functionality when confronted with water exposure.

• The sample power socket (220V, 10A) is mounted on the right wall of the inner box, which is convenient for the user to do the live test of the sample; and after the sample is powered on, the turntable rotation will be automatically adjusted to forward and reverse rotation to prevent winding ⁵.
• There is a waterproof lighting inside, which is convenient for users to observe the test situation.
• The flow rate is automatically adjusted by an electronic flow sensor, and the flow data will be displayed on the touch screen in real time⁶.
• Controller: 7-inch touch screen + PLC, using Yuexin self-developed software, which can be switched to multiple languages⁷.
• Test time setting: 0-999min⁸.
• Universal casters are mounted on the bottom, which has good load-bearing and easy to move and fix the equipment.
• Protection measures: short circuit protection, water shortage alert and door open alert⁹.

Standard data for IPX1/2:

Standard data for JIS D0203 R1/R2,S1/S2:

Remark:

1 The pictures in this document are for customer reference only, and there may be color differences between the actual model and the pictures.

2 This document only lists some test standards, which does not mean that other test requirements and standards cannot be conducted. Welcome to communicate and discuss with us.

3 One test only at the same time. The next project can be only carried out after the current test is completed. In addition, we can provide multi-functional customized test solutions according to user requirements.

4 Standard load-bearing upper limit of turntable is 50kg,but also can be customized per requirements ; a optional turntable of φ200mm/400mm or other sizes is available.

5 Please inform in advance if the voltage(220V) does not match the actual needs so that we can provide customized solutions for you.

6 Use flow sensor to adjust water flow automatically, the flow is set according to the corresponding test options, and does not support custom settings.

7 At present, only Chinese and English interfaces are supported; if other languages are introduced, the software can be updated remotely.

8 It is recommended to set the test time according to the test standard. The water temperature will rise due to long time test which has an impact on the test results.

9 Door open alert: when the door is open, the test cannot be conducted to protect personnel from being drenched in water.

10 Shape and dimension of rain nozzle(R1/R2),as shown below:

11 The photos may not match the actual ones, and are for user reference only.

The detail images:

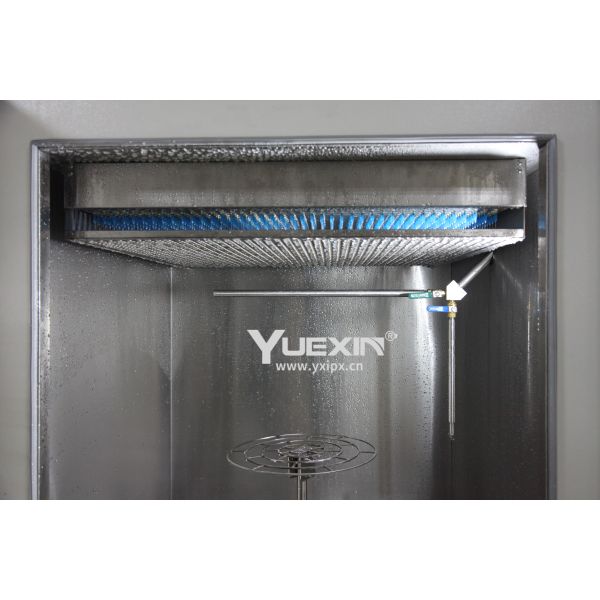

inner box water box
