Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation
Specifications
Place of Origin :
China
Brand Name :
RayLaser
Price :
Negotiation
Application :
LASER CUTTING
Applicable Material :
Metal
Condition :
New
Laser Type :
Fiber Laser
Cutting Area :
1500mm*3000mm
Cutting Speed :
0~100m/min
Graphic Format Supported :
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness :
0~30mm
CNC or Not :
Yes
Cooling Mode :
WATER COOLING
Control Software :
CYPCUT
Laser Source Brand :
MAX Raycus
Laser Head Brand :
Raytools
Servo Motor Brand :
Yaskawa
Guiderail Brand :
HIWIN
Control System Brand :
Cypcut
Weight (KG) :
3500 KG
Key Selling Points :
High Productivity Low Maintenance
Optical Lens Brand :
Wavelength
Warranty :
3 years
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction works , Energy & Mining, Other, Advertising Company
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
3 years
Core Components :
Pressure vessel, Motor, Gear, Gearbox, Engine, PLC
Mode of Operation :
continuous wave
Configuration :
gantry type
Products handled :
Sheet Metal
Feature :
Programmable Servo Motor
Performance :
High Performance
Speed :
Quick Fast
Precision :
Accuracy
Maintenance :
Low Cost
productivity :
High volume
cost saving :
cost effective green future
operating :
easy to use
Cutting Edge :
Excellent clean
service :
online with expert
laser beam :
more brighter more energy
Certification :
CE
MOQ :
1
Packaging Details :
Wooden
Delivery Time :
7-30days
Payment Terms :
T/T
Supply Ability :
10-30Sets/M
Description

Yaskawa Servo Motor 2000W 3000W Fiber Laser Cutter For Continuous Wave Operation

Products Description
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation
Economical open cutting machine 1kW-60kW
The Open Laser series is a dual servo drive, cutting speed up to 80m/min
For sheet metal cutting, such as stainless steel sheet cutting, carbon steel sheet cutting, galvanized steel sheet cutting, aluminum sheet cutting etc.
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation
Machine Parameters
Model
TF 3015 Edge
TF 4015 Edge
TF 6015 Edge
TF 4020 Edge
TF 6020 Edge
Cutting Area
3000*1500mm
4000*1500mm
6000*1500mm
4000*2000mm
6000*2000mm
Laser Source
MAX/Raycus
MAX/Raycus
MAX/Raycus
MAX/Raycus
MAX/Raycus
Cutting Head
Boci/Raytools/
Precitec
Boci/Raytools/Precitec
Boci/Raytools/Precitec
Boci/Raytools/Precitec
Boci/Raytools/Precitec
Chiller
S&G/Hanli
S&G/Hanli
S&G/Hanli
S&G/Hanli
S&G/Hanli
Max Motion Speed
80m/min
ACC=1.2G
80m/min
ACC=1.2G
120m/min
ACC=1.5G
120m/min
ACC=1.5G
120m/min
ACC=1.5G
Position Accuracy
±0.03mm
±0.03mm
±0.03mm
±0.03mm
±0.03mm
Reposition Accuracy
±0.02mm
±0.02mm
±0.02mm
±0.02mm
±0.02mm
Power Supply
380V 50/60Hz
30A
380V 50/60Hz 35A
380V 50/60Hz 40A
380V 50/60Hz 50A
380V 50/60Hz 60A
Max Loading
≤3.5T
≤4T
≤5.5T
≤4.5T
≤6T
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation
Product Paramenters
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation

HEAVY DUTY PLATE WELDED MACHINE BED

Industrial welded machine bed with heat treatment gives this Economic machine accuracy and long life. CNC high accuracy milling process is performed to install the linear guide rail and gear rack along with an aluminum X beam to ensure the machine accuracy
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation

Extruded Aluminum Gantry

Aviation aluminum has good toughness, lightweight, corrosion resistance, oxidation resistance, and low density, which can open the imagination of the machine speed in todays highly competitive world
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation

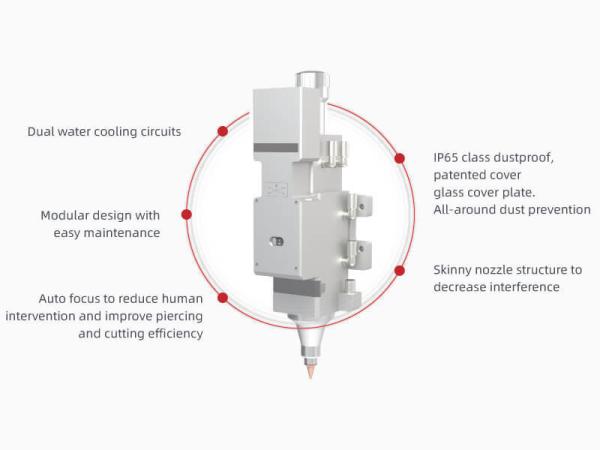

AUTO FOCUSING LASER HEAD​

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation

RACK AND GUIDE RAIL

It is a high-precision transmission part. The rack and linear guides are heat-treated with high rigidity and wear resistance, and can work under high torque requirements smoothly with low noise
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation

Fiber Laser Source

The New fiber laser cutting sources offer a high peak power, to achieve quick and clean repeat piercing on thicker materials, high-quality cutting etc
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation

SMART CONTROLLER

Laser cutting system is a full-solution open-loop control system specially designed for the sheet metal.
With easy to adjust features, excellent performance and fully integrated solutions
Manufacturing Technique
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation
Standard Quality Control System
Standard Quality Control System to insure the product quality in every process
Our Advantages
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation
Professional Laser Cutting Solutions
Our machines are capable of cutting steel, brass, aluminum and stainless steel without fear of back reflections damaging the machine. By using these fiber laser machines, you’ll reduce your maintenance requirements and cut your operating costs considerably.
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation
Customer Photos
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation

International presence

We develop individual solutions and see ourselves as your partner over the entire product life cycle.
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation
Company Profile
Yaskawa Servo Motor Fiber Laser Cutter 2000W 3000W For Continuous Wave Operation
Shanghai Raylaser Intelligent Technology Co., Ltd.
Shanghai Raylaser is quickly becoming customer's trustworthy that specializes in developing and manufacturing state-of-the-art Fiber laser CNC machines. Our machines utilize cutting-edge fiber lasers to deliver precision and speed in CNC Laser operations. with the exceptional beam quality and high power, offer incredible flexibility and make for an extremely versatile tool for cutting, Shanghai Raylaser Fiber laser CNC machines are designed for fibre laser applications over 17 years.
We are proud to bringing the manufacturing of fiber laser machines to the world. Our Fiber Laser machines are fully customizable to the specific needs of our customers. Our goal is to build affordable machines that are designed and built in Shanghai for the global market.
Our commitment to building high-quality machines, our customers can rest assured that they are investing in a top-notch product that will deliver exceptional results. At Raylaser we believe our commitment sets us apart from the competition, and we are earning more and more customer's trustworthy with our productive powers to empower the customer's.
Our product line including: Laser Cutting, Laser Welding and the Consumable Original Quality parts.
FAQ
Trying to figure out which Fiber Laser machine is right for you? Contact our team to learn more
Q1 : Our workers can't operate the machine, how to get the trainning? A1: We will send you the teaching video of the machine and 24-hour online service,we also support free training service, engineers can train your workers for free in our factory for 1-3 days. Q2 : I don’t know which one is suitable for me ? A2: Please tell me the following info: 1) Your materials 2) Max size of your material 3) Max cut thickness 4) Popular cut thickness Q3 : It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do? A3: We support the production visualization service. The sales department who responds to your inquiry for the first time will be responsible for your follow-up work. You can contact him /her to go to the factory to check the production progress of the machine, or send you the sample pictures and videos you want. We support free sample service. Q4 : Do you have the document for customs clearance? A4: Yes,we have Original. At first we will show you and after shipment we will give you Packing list/Commercial Invoice/Sales contract for customs clearance. Q5 : I don’t know how to use after I receive Or I have problem during use,how to do? A5: 1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update. 2) If have any problem in use,you need our technician to judge the problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems solved.We can also provide Door service if you need.
