TG-820NF Car Paint Thickness Gauge, Car Coating Thickness Meter, Painting thickness Tester
TG-820NF Car Paint Thickness Gauge, Car Coating Thickness Meter, Painting thickness Tester
TG-820NF Car Paint Thickness Gauge, Car Coating Thickness Meter, Painting thickness Tester
TG-820NF Car Paint Thickness Gauge, Car Coating Thickness Meter, Painting thickness Tester
TG-820NF Car Paint Thickness Gauge, Car Coating Thickness Meter, Painting thickness Tester
TG-820NF Car Paint Thickness Gauge, Car Coating Thickness Meter, Painting thickness Tester
TG-820NF Car Paint Thickness Gauge, Car Coating Thickness Meter, Painting thickness Tester
TG-820NF Car Paint Thickness Gauge, Car Coating Thickness Meter, Painting thickness Tester
Specifications
Place of Origin :
China
Brand Name :
RAYTECH
Certification :
ISO CE
Model Number :
TG-810NF
MOQ :
1unit
Packaging Details :
standard export package
Delivery Time :
about 3~5days
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
500units per month
Product Name :
TG-820NF Car Paint Thickness Gauge, Car Coating Thickness Meter, Painting thickness Tester
Measure Range :
0-1250um
Power supply :
2 * AA batteries
Measure Method :
NF
Minimum substrate :
10 * 10mm
Thinnest substrate :
0.4mm
Description

TG-820NF Car Paint Thickness Gauge, Car Coating

Thickness Meter, Painting thickness Tester

TG-820NF Car Paint Thickness Gauge, Car Coating Thickness Meter, Painting thickness Tester

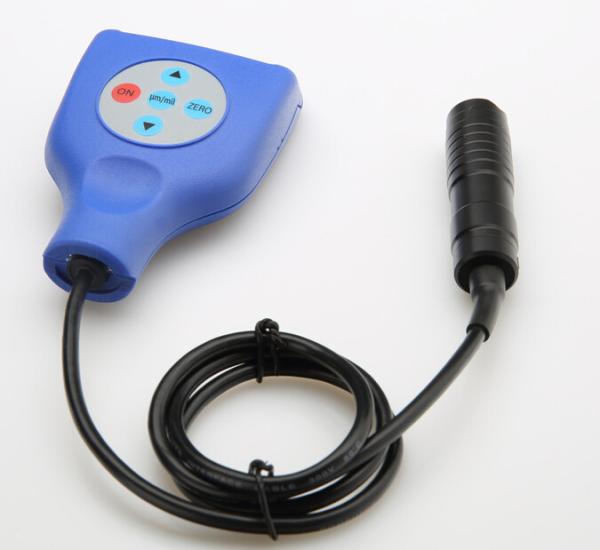

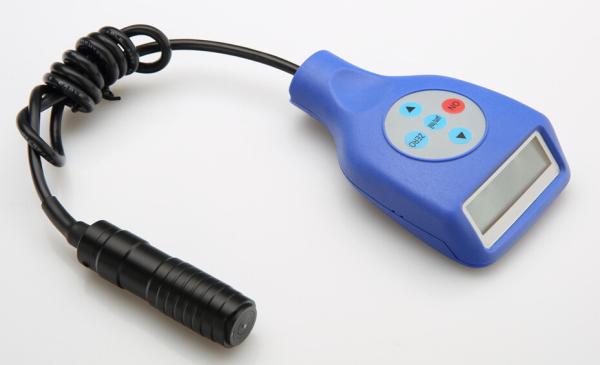

This device is a portable meter. It is capable of measuring coating thickness quickly,

precisely and without injury, both for the laboratory and engineering environment. It

is currently widely used in manufacturing, metal processing industry, chemical

industry, commodity inspection and testing fields; and is essential for material

protection major.

Features

Thickness measurement using Eddy Current Method to measure the non-

conductive coating on a non-magnetic metal substrate.

Single-point or two-point method could be used to correct probe system deviation,

in order to ensure the accuracy of the device in the process of measuring.

Power voltage indicator.

Speaker beep while operating.

Power-off automatically when idle; manually power-off available.

Negative display function to ensure the accuracy of zero point calibration.

Ultra-low power consumption, less than 10 μA in standby mode.

Technical Data

Measuring range: 0-1250 μm

Power supply: 2 * AA batteries

Measurement deviation: zero calibration ± (1 + 3% H); two-point calibration ± [(1%

~ 3% H)] H + 1.5

Ambient temperature: 0-40 ℃

Relative humidity: ≤85%

Minimum substrate: 10 * 10mm

Minimum curvature: 5mm convex; 5mm concave

Thinnest substrate: 0.4mm

Weight: 99g (with battery)

Size: 102mm * 66mm * 24mm

Item Checklist

Name

Quantity

Meter device

1

Standard films

5

Base substrate

1

Packing box

1

User Manual

1

Services

This instrument has one-year quality guarantee, maintenance for all life.

If there are any problems of this product, please contact the dealer in time.

TG-820NF Car Paint Thickness Gauge, Car Coating Thickness Meter, Painting thickness Tester

TAG: Car Coating Thickness Gauge Painting Thickness Gauges

Paint Thickness Meter
