Painting Test Meter, Zinc Coating Thickness Gauge, Magnetic Metal Substrate TG-810F
Painting Test Meter, Zinc Coating Thickness Gauge, Magnetic Metal Substrate TG-810F
Painting Test Meter, Zinc Coating Thickness Gauge, Magnetic Metal Substrate TG-810F
Painting Test Meter, Zinc Coating Thickness Gauge, Magnetic Metal Substrate TG-810F
Specifications
Place of Origin :
China
Brand Name :
RAYTECH
Certification :
ISO
Model Number :
TG-810F
MOQ :
1unit
Packaging Details :
standard export package
Delivery Time :
about 3~5days
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
500units per month
Product Name :
Painting Test Meter, Zinc Coating Thickness Gauge, Magnetic Metal Substrate TG-810F
Measure Range :
0~1250um
Power supply :
2 * AA batteries
Minimum substrate :
10 * 10mm
Minimum curvature :
5mm convex; 5mm concave
Thinnest substrate :
0.4mm
Description

Painting Test Meter, Zinc Coating Thickness Gauge,

Magnetic Metal Substrate TG-810F

Painting Test Meter, Zinc Coating Thickness Gauge, Magnetic Metal Substrate TG-810F

Introduction

This device is a portable meter. It is capable of measuring coating thickness quickly, precisely and without

injury, both for the laboratory and engineering environment. It is currently widely used in manufacturing,

metal processing industry, chemical industry, commodity inspection and testing fields; and is essential for

material protection major.

This device meets the following criteria:

GB/T 4956-1985 non-magnetic coating thickness measurement on magnetic metal substrate, Magnetic

Method

JJG 889-95 "Reluctance thickness"

Features

Thickness measurement using Magnetic Method to measure the non-magnetic coating on a magnetic

metal substrate.

Single-point or two-point method could be used to correct probe system deviation, in order to ensure the

accuracy of the device in the process of measuring.

Power voltage indicator.

Speaker beep while operating.

Power-off automatically when idle; manually power-off available.

Negative display function to ensure the accuracy of zero point calibration.

Ultra-low power consumption, less than 10 μA in standby mode.

Technical Data

Measuring range: 0-1250 μm

Power supply: 2 * AA batteries

Measurement deviation: zero calibration ± (1 + 3% H); two-point calibration ± [(1% ~ 3% H)] H + 1.5

Ambient temperature: 0-40 ℃

Relative humidity: ≤85%

Minimum substrate: 10 * 10mm

Minimum curvature: 5mm convex; 5mm concave

Thinnest substrate: 0.4mm

Weight: 99g (with battery)

Size: 102mm * 66mm * 24mm

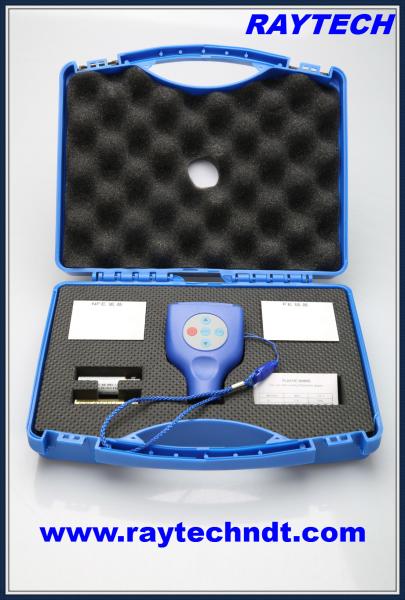

Item Checklist

Name

Quantity

Meter device

1

Standard films

5

Base substrate

1

Packing box

1

User Manual

1

Services

This instrument has one-year quality guarantee, maintenance for all life.

If there are any problem of this product, please contact the dealer in time.

Painting Test Meter, Zinc Coating Thickness Gauge, Magnetic Metal Substrate TG-810F

TAG: Coating Thickness Gage Magnetic Coating Thickness Gauge

Metal Coating Thickness Gauge
