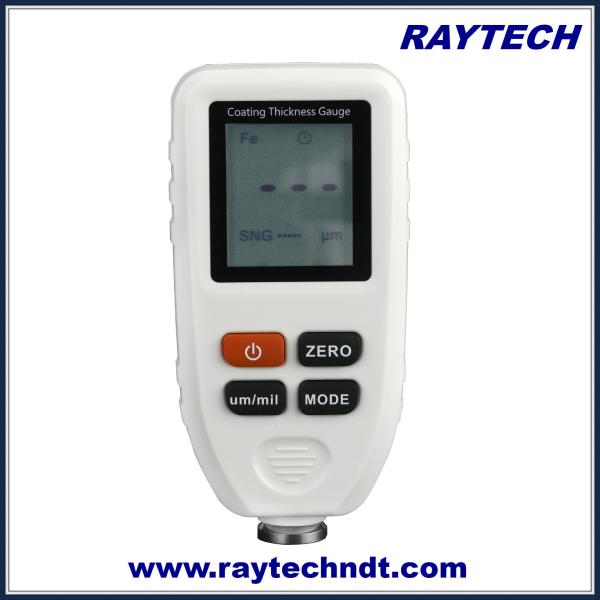

Built-in Probe Paint Thickness Meter TG-9001, Metal Coating Thickness Gauge 0~1300um
Built-in Probe Paint Thickness Meter TG-9001, Metal Coating Thickness Gauge 0~1300um
Built-in Probe Paint Thickness Meter TG-9001, Metal Coating Thickness Gauge 0~1300um
Built-in Probe Paint Thickness Meter TG-9001, Metal Coating Thickness Gauge 0~1300um
Built-in Probe Paint Thickness Meter TG-9001, Metal Coating Thickness Gauge 0~1300um
Built-in Probe Paint Thickness Meter TG-9001, Metal Coating Thickness Gauge 0~1300um
Built-in Probe Paint Thickness Meter TG-9001, Metal Coating Thickness Gauge 0~1300um
Built-in Probe Paint Thickness Meter TG-9001, Metal Coating Thickness Gauge 0~1300um
Specifications
Brand Name :
RAYTECH
Model Number :
TG-9001
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
500units per month
Delivery Time :
about 3~5days
Packaging Details :
standard export package
Product Name :
Built-in Probe Paint Thickness Meter TG-9001, Metal Coating Thickness Gauge 0~1300um
Probe Type :
built-in probe
Measure Range :
0~1300um
Power supply :
9V battery
Minimum Measurement Area :
6mm
Size :
130mm x 62mm x 32mm
Description

Built-in Probe Paint Thickness Meter TG-9001, Metal Coating Thickness Gauge 0~1300um

Built-in Probe Paint Thickness Meter TG-9001, Metal Coating Thickness Gauge 0~1300um

This Thickness Gauge is built-in both Ferrous Mode & Non-Ferrous Mode; It can be widely used in kinds of metal coating thickness measurement which is your indispensable tool in non-destructive testing; The instrument can automatically recognize the material to be tested and choose the correct measurement mode.

Technical specifications

Probe F Probe N
Principle Magnetic Induction Eddy Current
Range

0~1300um

0~51.2mil

0~1300um

0~51.2mil
Accuracy

±(3%+2um)

±(3%+0.08mil)

±(3%+2um)

±(3%+0.08mil)
Resolution 0.1um/0.01mil 0.1um/0.01mil
Calibration Points: ZERO/50/100/250/500/1000um
Units um, mil
minimum curvature radius convex: 1.5mm
minimum curvature radius concave: 25mm
minimum measuring area: Diameter 6mm
minimum thickness of substrate 0.5mm(0.02”) 0.3mm(0.012”)
Power One 9V battery
Operation Environment Temperature:0~40℃(32~104℉) Humidity:20%~90%RH
Size

130mm x 62mm x 32mm

(4.88” x 2.44” x 1.26”)
Weight 100g(3.53oz)

Application:

This model includes two functions, F and N.

1. F function can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)

2. N function can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)

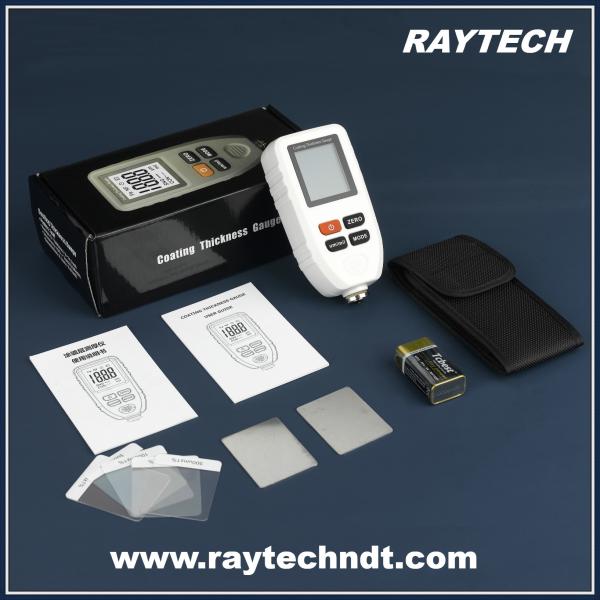

Product Accessories:

Standard Accessories

 Main Unit
Calibration Foils
Substrate ( Iron )
Substrate ( Aluminum )
Carrying Case
Operation Manual

Built-in Probe Paint Thickness Meter TG-9001, Metal Coating Thickness Gauge 0~1300um
