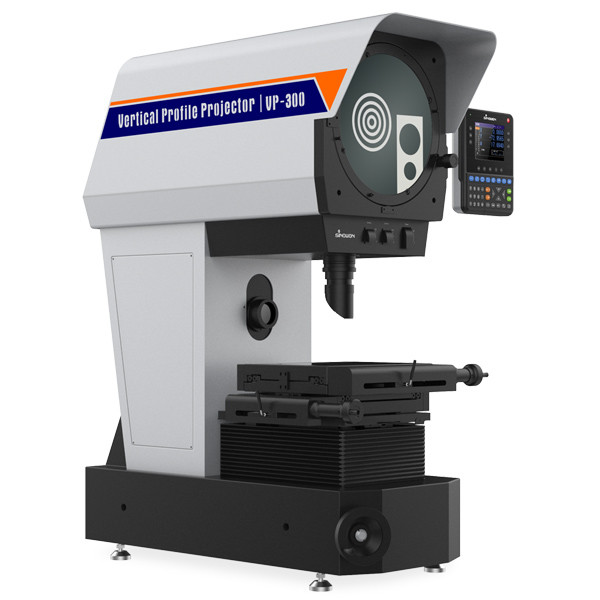

Optical Measure Profile Projector, Optical projection instrument Digital Vertical RVP300-2010
Optical Measure Profile Projector, Optical projection instrument Digital Vertical RVP300-2010
Optical Measure Profile Projector, Optical projection instrument Digital Vertical RVP300-2010
Optical Measure Profile Projector, Optical projection instrument Digital Vertical RVP300-2010
Specifications
Brand Name :
Raytech
Model Number :
RVP300-2010
Certification :
CE ISO
Place of Origin :
China
MOQ :
1unit
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
500units per month
Delivery Time :
5~8working days
Packaging Details :
Standard Export Package
Product Name :
Optical Measure Profile Projector, Optical projection instrument Digital Vertical RVP300-2010
Metal Stage Size :
258x358mm
Glass Stage Size :
148x256mm
Stage Travel:X and Y-axis :
200x100mm
Stage Travel:Z-axis :
100mm
Resolution of X and Y-scale :
0.0005 mm
Description

Optical Measure Profile Projector, Optical projection

instrument Digital Vertical RVP300-2010

Optical Measure Profile Projector, Optical projection instrument Digital Vertical RVP300-2010

Features:

1. The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive

more comfortable and stable;

2. Coating process reflector, clearer image and great dustproof;

3. Adjustable contour and surface illumination, to meet with difference workpiece demand;

4. Imported high light and long using life LED illumination, to ensure precision measurement

demand;

5. High resolution optical system with clear image and magnification error is less than 0.08%;

6. Powerful Bi-axial fan cooling system,highly increase using life;

7. Powerful and colorful DRO DP400,realized fast and accurate 2D Measurement;

8. Built-in Mini-printer, can print and save data;

9. With standard 10X objective, optional 5X,20X,50X,100X objective,rotary table, foot

switch ,clamp, etc.

Specification:

Reverse Image

RVP300-1510 (#511-330)

 RVP300-2010 (#511-340)
Obverse Image

RVP300-1510Z(#511-330Z)

 RVP300-2010Z(#511-340Z)
Metal Stage Size

258x308mm

 258x358mm
Glass Stage Size

148x206mm

 148x256mm
Stage Travel:X and Y-axis

150x100mm

 200 x100mm
Stage Travel:Z-axis

100mm
Accuracy

≤3+L/200(um)
Resolution of X and Y-scale

0.0005 mm
Screen

Diameter :Ø312mm,Effective Range ≥ Ø300(with “* ” Reticle)

Rotary Range: 0~360° ; Resolution of Rotary Indicator: 1’ or 0.01°
Digital Readout

DP400 (510-340) Multifunctional Data Processing System
Illumination

Contour Illumination:3.2V/10W LED;Surface

Illumination:3.2V/10W LED
Working Environment

Temp 20℃±5℃,Humidity 40％－70％RH
Power Supply

AC110V/60Hz; 220V/50Hz, 650W
Dimension(L×W×H)

988x563x1224mm

 988x563x1224mm
Packing Dimension

1200x800x1580mm

 1200x800x1580mm
Gross/Net weight

220/170Kg

 220/170Kg
