Optical measurement Profile Projector, NDT diameter 400mm Vertical Profile Projector RVP400-2515
Optical measurement Profile Projector, NDT diameter 400mm Vertical Profile Projector RVP400-2515
Optical measurement Profile Projector, NDT diameter 400mm Vertical Profile Projector RVP400-2515
Optical measurement Profile Projector, NDT diameter 400mm Vertical Profile Projector RVP400-2515
Specifications
Brand Name :
Raytech
Model Number :
RVP400-2515
Certification :
CE ISO
Place of Origin :
China
MOQ :
1unit
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
500units per month
Delivery Time :
5~8working days
Packaging Details :
Standard Export Package
Product Name :
Optical measurement Profile Projector, NDT diameter 400mm Vertical Profile Projector RVP400-2515
Metal Stage Size :
308x408mm
Glass Stage Size :
198x306mm
Stage Travel:X and Y-axis :
200x150mm
Stage Travel:Z-axis :
100mm
Resolution of X and Y-scale :
0.0005 mm
Description

Optical measurement Profile Projector, NDT diameter 400mm

Vertical Profile Projector RVP400-2515

Optical measurement Profile Projector, NDT diameter 400mm Vertical Profile Projector RVP400-2515

Features:

1. The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive

more comfortable and stable;

2. Coating process reflector, clearer image and great dustproof;

3. Adjustable contour and surface illumination, to meet with difference workpiece demand;

4. Imported high light and long using life LED illumination, to ensure precision measurement

demand;

5. High resolution optical system with clear image and magnification error is less than 0.08%;

6. Powerful Bi-axial fan cooling system,highly increase using life;

7. Powerful and colorful DRO DP400,realized fast and accurate 2D Measurement;

8. Built-in Mini-printer, can print and save data;

9. With standard 10X objective, optional 5X,20X,50X,100X objective,rotary table, foot

switch ,clamp, etc.

Specification:

Reverse Image

RVP400-2010 (#511-410)

 RVP400-2515 (#511-420) RVP400-3020 (#511-430)
Obverse Image

RVP400-2010Z(#511-410Z)

 RVP400-2515Z(#511-420Z) RVP400-3020Z (#511-430Z)
Metal Stage Size

308x408mm

 308x408mm 458x358mm
Glass Stage Size

198x306mm

 198x306mm 356x248mm
Stage Travel:X and Y-axis

200x100mm

 200x150mm 300x200mm
Stage Travel:Z-axis

100mm
Accuracy

≤3+L/200(um)
Resolution of X and Y-scale

0.0005 mm
Screen

Dia:φ412mm,Measurement Range ≥ Ø400

Rotation Angle 0~360° ;Resolution: 1 or 0.01°
Digital Readout

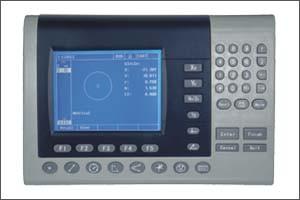

DP400 (510-340) Multifunction colorful LCD digital readout
Illumination

Contour Illumination:3.2V/10W LED;Surface Illumination:3.2V/10W LED
Working Environment

Temp 20℃±5℃,Humidity 40％－70％RH
Power Supply

AC110V/60Hz; 220V/50Hz,150W
Dimension(L×W×H)

1003x617x1309mm

 1003x617x1309mm 1003x617x1309mm
Packing Dimension

1200x800x1580mm

 1200x800x1580mm 1200x800x1580mm
Net weight

230Kg

 230Kg 230Kg
Gross

280Kg

 280Kg 280Kg
