Paint layer coating thickness measurement, F and NF thickness gauge, NDT tester TG-8620/S
Paint layer coating thickness measurement, F and NF thickness gauge, NDT tester TG-8620/S
Paint layer coating thickness measurement, F and NF thickness gauge, NDT tester TG-8620/S
Paint layer coating thickness measurement, F and NF thickness gauge, NDT tester TG-8620/S
Specifications
Brand Name :
RAYTECH
Model Number :
TG-8620/S
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
500units per month
Delivery Time :
about 3~5days
Packaging Details :
standard export package
Product Name :
Paint layer coating thickness measurement, F and NF thickness gauge, NDT tester TG-8620/S
Probe Type :
inbuild probe(TG-8620) Separate probe(TG-8620S)
Measure Range :
0~1250um
Power supply :
4 * AA batteries
Minimum substrate :
6mm
Size :
140x70x30mm
Description

Paint layer coating thickness measurement, F and NF

thickness gauge, NDT tester TG-8620/S

Paint layer coating thickness measurement, F and NF thickness gauge, NDT tester TG-8620/S

Product Description:

The Basic Type Coating Thickness Gauge Series have two models:

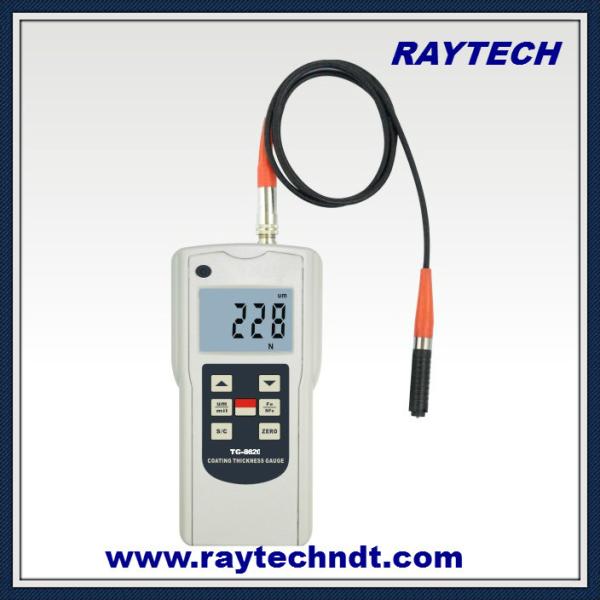

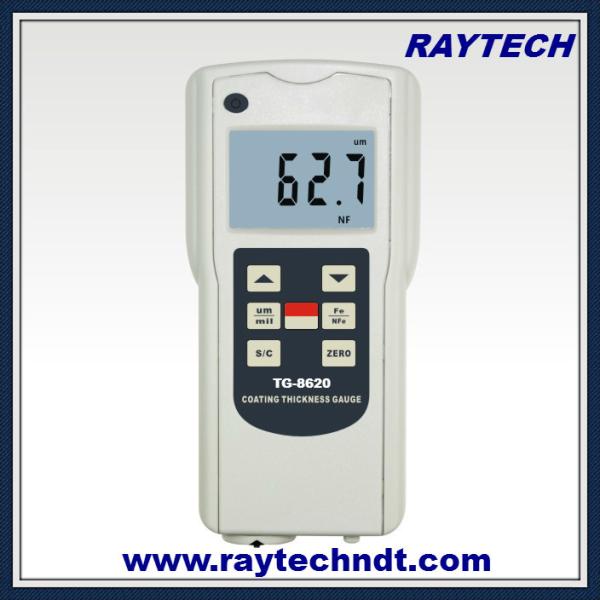

TG-8620 (Integral Type), TG-8620S (Separate Type); Suitable for automotive, paint layer coating

thickness measurement; Integral Type suitable for single-hand operation, large probe with large

contact surface have better stability, users can get continuous, good repetitive and precise

measurements. Separate Type can provide several type probe, measure can be more flexibility.

It is a kind of portable measuring instrument, it can quickly, no damage and precise coating,

coating thickness measurement. Not only can be used in the laboratory, also can be used in the

engineering field. Through the use of different measuring head, but also can meet the needs of a

variety of measurement. Widely used in manufacturing, metal processing industry, chemical

industry, commodity inspection and testing field. Is the material protection professional.

Application:

This model includes two functions, F and N.

1. F function can measure the thickness of non-magnetic coating layers (aluminum, chrome,

copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless

steel)

2. N function can measure the thickness of non-conductive coating layers (ename1, rubber, paint,

vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin

and non-magnetic stainless steel)

Product Parameters:

Measuring Range

0~1250 um

0~50mil (other range may be specified)
Resolution

0.1 um (0~99.9um)/1 um (over 100um)
Accuracy:

1~3%n or 2.5 um or 0.1mil (Whichever is the greater)
Minimum Measurement Area

6 mm
Minimal Surface

F Type convex1.5 mm / concave 25 mm

NF Type convex 3 mm / concave 50mm
Operating Condition

Temp: 0~50°C /

Humidity: <95%
Size

140x70x30 mm
Power Supply

4x1.5vAAA Um-4 Battery
Weight

130 g (Not including batteries)

Product Accessories:

Standard Accessories

Main Unit

Calibration Foils

Substrate ( Iron )

Substrate ( Aluminum )

Carrying Case

Operation Manual
Optional Accessories

USB data output

Bluetooth data output
