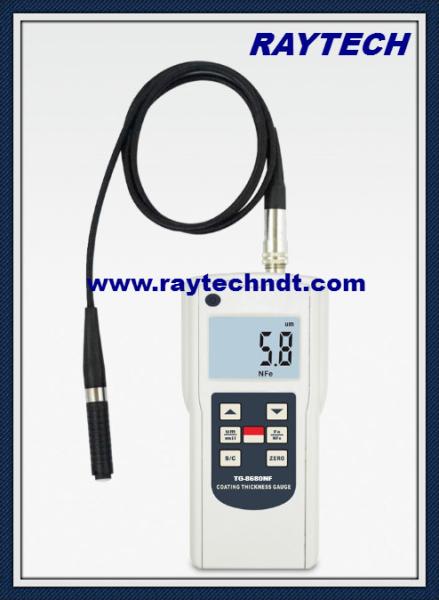

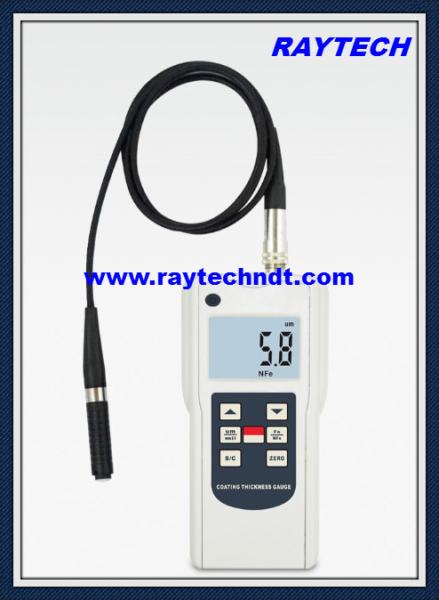

Micro Digital Coating Thickness Gauge, Painting test gage, small range 0~200um, TG-8680NF
Micro Digital Coating Thickness Gauge, Painting test gage, small range 0~200um, TG-8680NF
Micro Digital Coating Thickness Gauge, Painting test gage, small range 0~200um, TG-8680NF
Micro Digital Coating Thickness Gauge, Painting test gage, small range 0~200um, TG-8680NF
Specifications
Brand Name :
RAYTECH
Model Number :
TG-8680NF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
500units per month
Delivery Time :
about 3~5days
Packaging Details :
standard export package
Product Name :
Micro Digital Coating Thickness Gauge, Painting test gage, small range 0~200um, TG-8680NF
Probe Type :
separate probe
Measure Range :
0~200um
Power supply :
4 * AA batteries
Minimum Measurement Area :
2mm
Size :
140x70x30mm
Description

Micro Digital Coating Thickness Gauge, Painting test gage,

small range 0~200um, TG-8680NF

Micro Digital Coating Thickness Gauge, Painting test gage, small range 0~200um, TG-8680NF

Product Description

Micro Coating Thickness Gauge have two types: F Type, NF Type; Suitable for automotive, paint

layer coating thickness measurement. Specially for the thickness measurement of coating on

small workpiece. It is a kind of portable

measuring instrument, it can quickly, no damage and precise coating, coating thickness

measurement; Not only can be used in the laboratory, also can be used in the engineering field;

Through the use of different measuring head, but also can meet the needs of a variety of

measurement; Widely used in manufacturing, metal processing industry, chemical industry,

commodity inspection and testing field; Is the material protection professional. Necessary

instruments.

Product Parameters

Measuring Range

0~200 um

0~8mil
Resolution

0.1 um / 0.1mil
Accuracy:

1~3%n or 2.5 um or 0.1mil (Whichever is the greater)
Minimum Measurement Area

2 mm
Minimal Surface

NF Type convex 2 mm / concave 4 mm
Operating Condition

Temp: 0~50°C

Humidity: <95%
Size

140x70x30 mm
Power Supply

4x1.5vAAA Um-4 Battery
Weight

130 g (Not including batteries)

Application:

This model includes one function, NF .

N function can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)

Product Accessories

Standard Accessories

Main Unit

Calibration Foils

Substrate ( Aluminum)

Sensor

Carrying Case

Operation Manual
Optional Accessories

USB data output

Bluetooth data output

TAG: Micro Digital Coating Thickness Gauge

Painting Test Gage Portable Thickness Tester

Micro Digital Coating Thickness Gauge, Painting test gage, small range 0~200um, TG-8680NF
