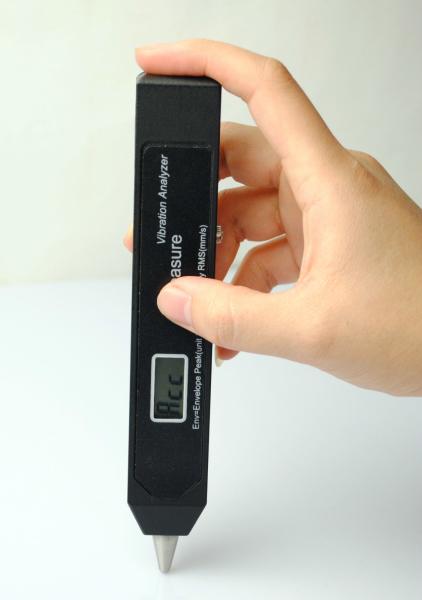

Pocket Size Displacement Meter, Vibration Pen, Vibration Tester Magnet Base VM7001D
Pocket Size Displacement Meter, Vibration Pen, Vibration Tester Magnet Base VM7001D
Pocket Size Displacement Meter, Vibration Pen, Vibration Tester Magnet Base VM7001D
Pocket Size Displacement Meter, Vibration Pen, Vibration Tester Magnet Base VM7001D
Specifications
Brand Name :
RAYTECH
Model Number :
VM7001D
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
5000units per month
Delivery Time :
5days
Packaging Details :
Standard Export Carton
Product Name :
Pocket Size Displacement Meter, Vibration Pen, Vibration Tester Magnet Base VM7001D
Measurement parameter :
Displacement Peak_Peak (micron)
Range :
1~1999 micron
Accuracy :
±5% ± 2 digits
Display :
4 digits LCD, refresh interval about 0.5 second
Power supply :
1/2 AA, 3.6V, Operation Current 4-7mA
Description

Pocket Size Displacement Meter, Vibration Pen, Vibration Tester Magnet Base VM7001D

Pocket Size Displacement Meter, Vibration Pen, Vibration Tester Magnet Base VM7001D

Features:

Extremely reliable and potable, low cost instrument specifically designed for on site maintenance in your plant or workshop. Imeasures overall vibration level by Displacement Peak_Peak. This easy to use instrument requires little operator training.

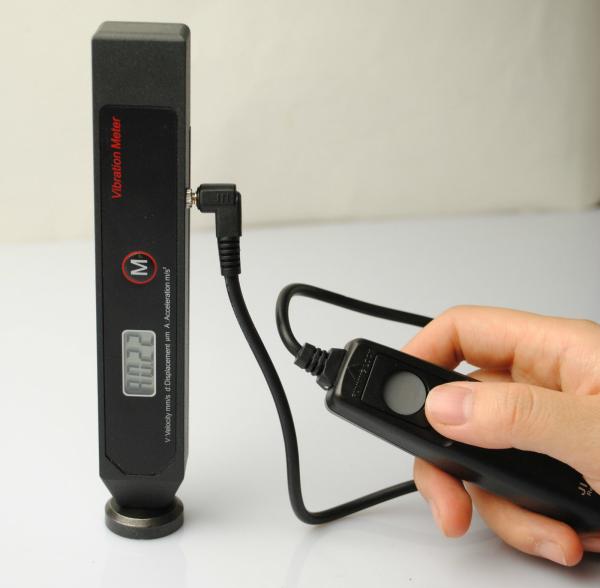

It features with one-button operation, holding function and automatic power off. With remote switch and magnet base to avoid handheld problem, get reliable and consistent data.

Specifications:

Measurement parameter

Displacement Peak_Peak (micron)
Range

1~1999 micron
Accuracy

±5% ± 2 digits
Frequency response

10Hz < f < 1000Hz, ±10%
Display

4 digits LCD, refresh interval about 0.5 second
Power supply

1/2 AA, 3.6V, Operation Current 4-7mA
Battery capacity

>100 hours continuously or 4000 times measurement
Operation environment

Operation Temperature: 0oC~50 oC;

Relative humidity: < 85%
Dimensions

160mm x 25mm x 17mm (WxDxH)
Weight

120g (include batteries)
Case Material

Aluminum

Standard delivery:

Vibration meter

Small pocket bag

Remote switch

Magnet base

User’s Manual

Battery (Inside meter)

Certificate

Pocket Size Displacement Meter, Vibration Pen, Vibration Tester Magnet Base VM7001D

TAG: Vibration Pen Vibration Meter Portable Vibration Meter
