Hand-Held Vibration Meter, Gear Damage Tester, Bearing faults Measurement VM908
Hand-Held Vibration Meter, Gear Damage Tester, Bearing faults Measurement VM908
Hand-Held Vibration Meter, Gear Damage Tester, Bearing faults Measurement VM908
Hand-Held Vibration Meter, Gear Damage Tester, Bearing faults Measurement VM908
Hand-Held Vibration Meter, Gear Damage Tester, Bearing faults Measurement VM908
Hand-Held Vibration Meter, Gear Damage Tester, Bearing faults Measurement VM908
Hand-Held Vibration Meter, Gear Damage Tester, Bearing faults Measurement VM908
Hand-Held Vibration Meter, Gear Damage Tester, Bearing faults Measurement VM908
Specifications
Brand Name :
Raytech
Model Number :
VM908
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
5000units per month
Delivery Time :
5days
Packaging Details :
Standard Export Carton
Product Name :
Hand-Held Vibration Meter, Gear Damage Tester, Bearing faults Measurement VM908
Displacement :
10-500Hz
Velocity :
10-1000Hz
Acceleration :
0.1—199.9 m/s2 (or 20 g) Peak
Dimensions :
13×6×2.3 cm
Weight :
200 g
Description

Hand-Held Vibration Meter, Gear Damage Tester, Bearing

faults Measurement VM908

Hand-Held Vibration Meter, Gear Damage Tester, Bearing faults Measurement VM908

Features:

Measuring vibration velocity, displacement and acceleration.

Small size, transducer included, battery powered, no other component required.

Optional for inner or external Accelerometer.

One button control both power and measurement. Very easy for use.

3 1/2 LCD digital display, sampling per second.

Holding function.

Automatic power off.

Suitable for monitoring machinery vibration caused by out-of-balance, misalignment,

gear damage, bearing faults and etc.


Specifications:

Amplitude Ranges

Displacement 1—1999 µm (or 200 mil) peak-peak

Velocity 0.1—199.9 mm/s (or 20 in/s) true RMS

Acceleration 0.1—199.9 m/s2 (or 20 g) Peak
Overall accuracy

+5%
Temperature range

0 - 40 0C
Frequency response

Displacement 10-500Hz

Velocity 10-1000Hz

Acceleration 10-10000Hz (Depending on external

accelerometer model)
Battery

9V 6F22, 25 hours of continuous operation.
Pickup

Accelerometer with handheld probe and /or magnetic base
Dimensions

13×6×2.3 cm
Weight

200 g

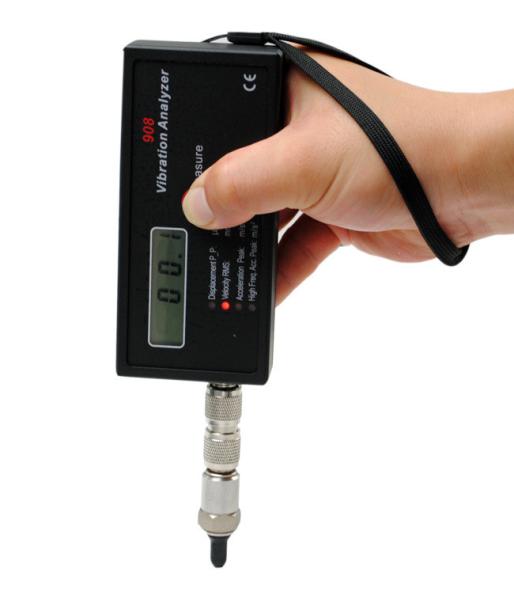

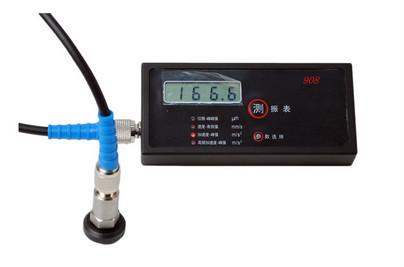

Two ways to measure:

Hand-Held Vibration Meter, Gear Damage Tester, Bearing faults Measurement VM908

Hand-Held Vibration Meter, Gear Damage Tester, Bearing faults Measurement VM908

If you need this accessory, please declare in order.
