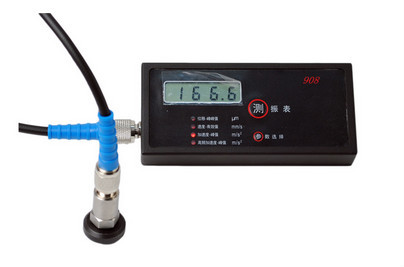

Low Frequency Vibration Meter, Handheld Vibration Meter, Separate sensor VM908L 1Hz-10kHz
Low Frequency Vibration Meter, Handheld Vibration Meter, Separate sensor VM908L 1Hz-10kHz
Low Frequency Vibration Meter, Handheld Vibration Meter, Separate sensor VM908L 1Hz-10kHz
Low Frequency Vibration Meter, Handheld Vibration Meter, Separate sensor VM908L 1Hz-10kHz
Specifications
Brand Name :
Raytech
Model Number :
VM908L
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
5000units per month
Delivery Time :
5days
Packaging Details :
Standard Export Carton
Product Name :
Low Frequency Vibration Meter, Handheld Vibration Meter, Separate sensor VM908L 1Hz-10kHz
Displacement :
4-500Hz(±5%); 2.5-4Hz(±10%); 1-1000Hz(3dB)
Velocity :
4-1000Hz(±5%); 2.5-4Hz(±10%); 1-2000Hz(3dB)
Acceleration :
4-1000Hz(±5%); 2.5-5000Hz(±10%); 1-10000Hz(3dB)
High Frequency Acceleration :
1000-5000Hz(±10%);5000-10000Hz(3dB)
Weight :
200g
Description

Low Frequency Vibration Meter, Handheld Vibration Meter,

Separate sensor VM908L 1Hz-10kHz

Low Frequency Vibration Meter, Handheld Vibration Meter, Separate sensor VM908L 1Hz-10kHz

Features:

Measuring vibration for low rotation speed machine,such as Hydro Turbine, Wind

Turbine and Rotary Kiln

Small size, transducer included,battery powered, external accelerometer

One button control both power and measurement. Very easy for use.

3 1/2 LCD digital display, sampling per second.

Holding function.

Automatic power off.

True RMS measurement.

Suitable for monitoring machinery vibration caused by imbalance,misalignment, gear

& bearing faults and etc.


Specifications:

Amplitude Ranges:

Displacement 0.01-19.99 mm Eq. peak-peak

Velocity 0.1-199.9 mm/s true RMS

Acceleration 0.1-199.9 m/s2 or 20g Eq.Peak

High Frequency Acceleration: 0.1-199.9 m/s2 Eq. Peak
Temperature range

0-50oC
Frequency response& Accuracy

Displacement: 4-500Hz(±5%); 2.5-4Hz(±10%); 1-1000Hz(3dB)

Velocity: 4-1000Hz(±5%); 2.5-4Hz(±10%); 1-2000Hz(3dB)

Acceleration: 4-1000Hz(±5%); 2.5-5000Hz(±10%); 1-10000Hz(3dB)

High Frequency Acceleration: 1000-5000Hz(±10%);5000-10000Hz(3dB)
Battery

9V 6F22/Rechargeable, 25/10 hours of continuous operation.
Pickup

Accelerometer with handheld probe and/or magnetic mount
Dimensions

13×6×2.3cm
Weight

200g

Optional Intrinsically safe version with internal accelerometer

TAG: Gear Faults Monitor
