X ray pipeline crawler, X-ray flaw detectors, X-ray Equipment, NDT, Industrial Control Machines RXPC-100C
X ray pipeline crawler, X-ray flaw detectors, X-ray Equipment, NDT, Industrial Control Machines RXPC-100C
X ray pipeline crawler, X-ray flaw detectors, X-ray Equipment, NDT, Industrial Control Machines RXPC-100C
X ray pipeline crawler, X-ray flaw detectors, X-ray Equipment, NDT, Industrial Control Machines RXPC-100C
Specifications
Brand Name :
Raytech
Model Number :
RXPC-100C
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
100units per month
Packaging Details :
Standard Export Carton
Product Name :
X ray pipeline crawler, X-ray flaw detectors, X-ray Equipment, NDT, Industrial Control Machines
Pipe diameter detecting range :
Φ273—Φ700mm
Crawler length :
2000mm
Creeping speed :
15M/min
Creeping distance :
2KM
Exposure time :
1s~1h continues adjustable
Exposure voltage :
5 selection
Total weight :
100kgs
Description



X ray pipeline crawler, X-ray flaw detectors, X-ray Equipment,

NDT, Industrial Control Machines RXPC-100C


X ray pipeline crawler, X-ray flaw detectors, X-ray Equipment, NDT, Industrial Control Machines RXPC-100C

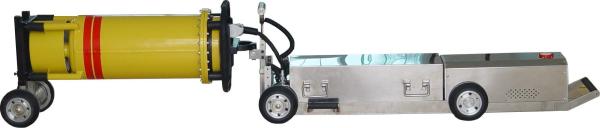

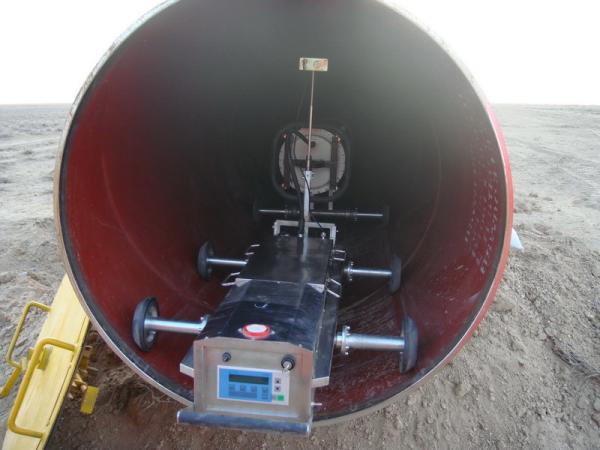

The X-ray pipeline crawlers include the special part that can detect the welding line of long

pipeline. The X-ray pipeline crawlers have the advantages of high radiographic quality, high

imaging sensitivity, low failure rate and high work efficiency. The X-ray pipeline crawlers have

differential driving and vibration absorbers. The chassis of the X-ray pipeline crawlers can be

moved in the pipeline steadily without off center running and overturning. The X-ray pipeline

crawlers can be moved in the pipeline with great efficiency because it is controlled by PLC with

protecting it from blocking and under voltage. The X-ray pipeline crawler is easy to be separated

into several parts and then to be put together, so it is easy to carry. You can change the exposure

parameter and make the X-ray pipeline crawler move, stop and have an exposure with the

exterior controlling source. The X-ray pipeline crawlers are easy to operate.


Specification of X Ray Pipeline Crawler


Model

Specification

RXPC-100A RXPC-100B RXPC-100C


Pipe diameter detecting range

 Φ800—Φ1500mm Φ380—Φ1016mm Φ273—Φ700mm


Total weight

 140KG 125KG 100KG


Crawler length

 2200mm 2000mm 2000mm


Creeping speed

 15M/min 16-18M/min 15M/min


Creeping distance

 2KM 2KM 2KM


Locating error

 ±5mm ±5mm ±5mm


Max.output voltage

 300Kv 250Kv 200Kv


Max.outout current

 3mA 3mA 3mA


Climbing ability

 40° 40° 25°


Radiation angle

 360°*35° 360°*35° 360°*35°


Output power

 1.5KW 1.25KW 1KW


Battery energy

 22Ah/120V 17Ah/120V 12Ah/120V


Motor power

 300W 300W 200W


Exposure time

 1s~1h continues adjustable 1s~1h continues adjustable 1s~1h continues adjustable


Exposure voltage

 5 selection 5 selection 5 selection


Operation temperature

 -30°~ 70° -30°~ 70° -30°~ 70°


The crawler include below parts as standard accessories:

Main vehicle

Lead acid pile: 110V(22Ah)

X-ray machine: 250KV/5mA

Instruction source
