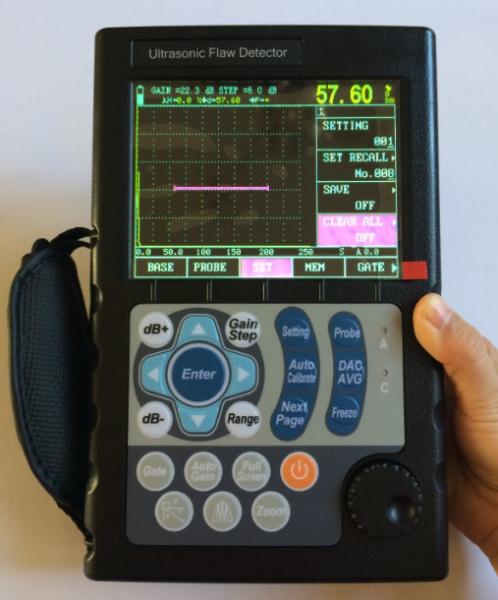

Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000
Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000
Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000
Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000
Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000
Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000
Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000
Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000
Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000
Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000
Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000
Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000
Specifications
Brand Name :
RAYTECH
Model Number :
RFD620
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
500units per month
Delivery Time :
about 3~5days
Packaging Details :
standard export package
Price :
contact us
Product Name :
Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000
Measuring Range(mm) :
0 ～ 10000
Measurement Mode :
Single,Dual,Thru
Port Type :
BNC
Gain(dB) :
0~120
Weight(kg) :
1.0(with battery)
Description

Portable Ultrasonic Flaw Detector with Measurement Range 0 to 10000

Description:

Automated calibration,Automated gain

★ DAC,AVG,TCG,B scan,AWS

★ High-speed capture and very low noise

★ Solid metal housing

★ high contrast viewing of the waveform from bright

★ Powerful pc software and reports can be export to excel

Features:

1.Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB);

2.Automated switch three staff gauge ((Depth d,level p,distance s)；

3.Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity；

4.Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated

5. 6dB DAC functions;

6.Standards of test for DAC is saved.

7. 300 independence setup, any criterion can be input freely, we can work in the scene without test

block；

8.Big memory of 800 A graph

9.Automated gain and gain scan;

10.Peak Hold and Peak Memory；

11.B scan;

12.AWS D1.1

13.Automated make video of test process and play; use upan,the length of video is unlimited.

14.Powerful pc software and reports can be export to excel;

15.Li battery, continue working time up to 12 hours;

16.The embeded software can be online updated；

Other assistant function

Display freeze;

Automated echo degree;

Angles and K-value;

Lock and unlock function of system parameters;

Electronic clock calendar ;

Two gates setting and alarm indication;

Gate and DAC alarm;

Specifications

Title Parameter Title Parameter
Measuring Range(mm) 0 ～ 10000 Measurement Mode Single,Dual,Thru
Vertical Linearity Error ≤3% Reject 0~80%
Horizontal Linearity Error ≤0.1% Pulse Displacement(μs) -20 ～ +3400
Sensitivity Leavings ≥62dB Zero(μs) 0.0 ～ 99.99
Dynamic range ≥32dB Port Type BNC(Q9)
Resolving Power ≥36dB Operating Temperature (℃) -20～50
Frequency Range(MHz) 0.5 ～ 20 H×W×D(mm) 240×156×48
Gain(dB) 0 ～ 120 Weight(kg) 1.0(with battery)
Material Velocity(m/s) 1000 ～ 15000

Standard Configuration

 Name QTY
1 Main unit 1
2 power adaptor 1

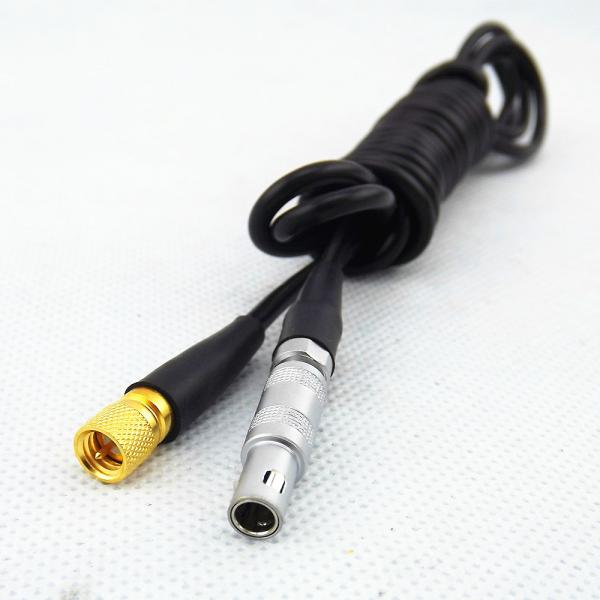

3 probe connecting cable 2
4 Instrument case 1
5 Instruction manual 1
6

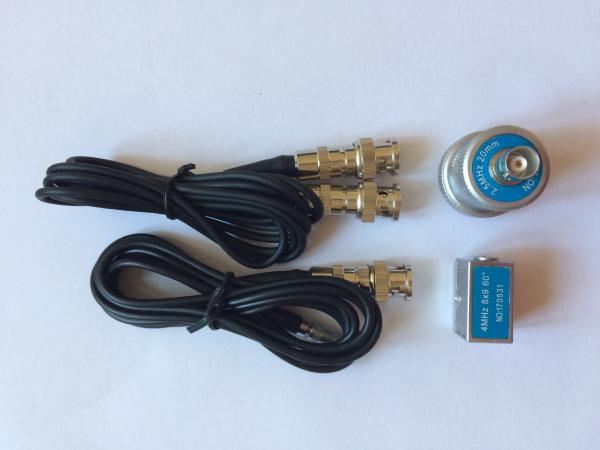

Straight probe

20mm 2.5MHz

 1
7 Angle probe 8x9 60°4MHz 1
8 Certificate of approval 1
9 Warranty card 1
10 Software and cable 1
