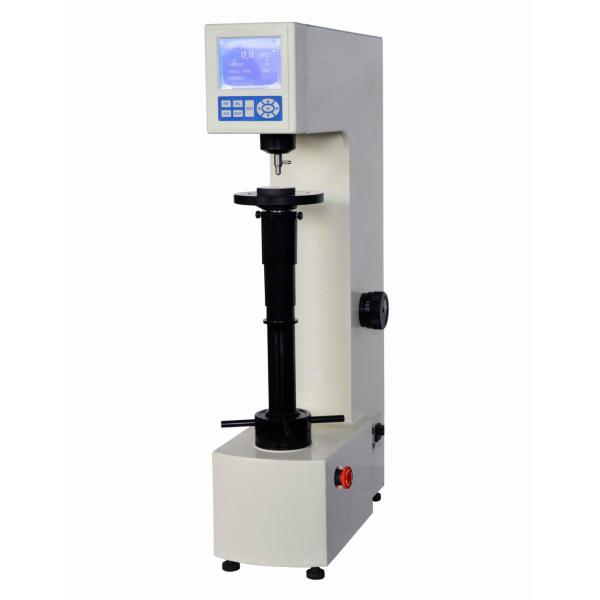

Digital Rockwell Hardness Tester (Heightening Type) HRS-150L, Large Sample Hardness Test Machine
Digital Rockwell Hardness Tester (Heightening Type) HRS-150L, Large Sample Hardness Test Machine
Digital Rockwell Hardness Tester (Heightening Type) HRS-150L, Large Sample Hardness Test Machine
Digital Rockwell Hardness Tester (Heightening Type) HRS-150L, Large Sample Hardness Test Machine
Specifications
Brand Name :
RAYTECH
Model Number :
HRS-150L
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500units per month
Delivery Time :
5~8 working days
Packaging Details :
Standard Export Carton
Product Name :
Digital Rockwell Hardness Tester (Heightening Type) HRS-150L, Large Sample Hardness Test Machine
Loading Method :
Automatic (Loading/Dwell/Unloading)
Hardness Reading :
LCD Screen Display
Data Output :
Built-in Printer，RS232 Interface
Resolution :
0.1HR
Max. Height of Specimen :
400mm
Description
Digital Rockwell Hardness Tester (Heightening Type)
HRS-150L, Large Sample Hardness Test Machine
Digital Rockwell Hardness Tester (Heightening Type) HRS-150L, Large Sample Hardness Test Machine

Digital Rockwell Hardness Tester (Heightening Type) HRS-150L, Large Sample Hardness Test Machine

Digital Rockwell Hardness Tester (Heightening Type) HRS-150L, Large Sample Hardness Test Machine

Digital Rockwell Hardness Tester (Heightening Type) HRS-150L, Large Sample Hardness Test Machine

Main Function:

HRS-150L Digital Rockwell hardness tester is equipped with a newly-designed large displaying

screen with good reliability, excellent operation and easy watching, thus it is a high-tech product

combining the mechanic and electric features. It can show and set the present scale, test force,

test indenter, dwell time and hardness conversion; the main function is as follows: Selection of all

the Rockwell scales; Conversion scales of different kinds of hardness; Test results can be saved

and printed out, automatic calculation of maximum, minimum and average value; With RS232

interface for connecting to the computer. This is the heightening type which is more convenient for

measuring the large samples.

Application range:

Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable

cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.

Technical Specification:

Model

HRS-150L
Initial Test Force

10kgf (98.07N)
Total Test Force

60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)
Indenter

Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method

Automatic (Loading/Dwell/Unloading)
Hardness Reading

LCD Screen Display
Test Scale

HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV
Conversion Scale

HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW
Data Output

Built-in Printer,RS232 Interface
Resolution

0.1HR
Dwell Time

0~60s
Max. Height of Specimen

400mm
Throat

165mm
Power Supply

AC220V,50Hz
Execute Standard

ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2
Dimension

500×200×880mm,Packing Dimension: 650×370×1140mm
Weight

Net Weight: 98kg,Gross Weight: 120kg

Packing List:

Name

 Qty Name Qty

Instrument Main Body

 1 set Diamond Rockwell Indenter 1 pc

ф1.588mmBall Indenter

 1 pc Middle Plane Test Table 1 pc

Large Plane Test Table

 1 pc V-shaped Test Table 1 pc

Hardness Block 60~70 HRC

 1 pc Hardness Block 20~30 HRC 1 pc

Hardness Block 80~100 HRB

 1 pc Weight A, B, C 3 pcs

Power Cable

 1 pc Fuse 2A 2 pcs

Level

 1 pc Horizontal Regulating Screw 4 pcs

Screw Driver

 1 pc Spanner 1 pc

Anti-dust Cover

 1 pc Usage Instruction Manual 1 copy
