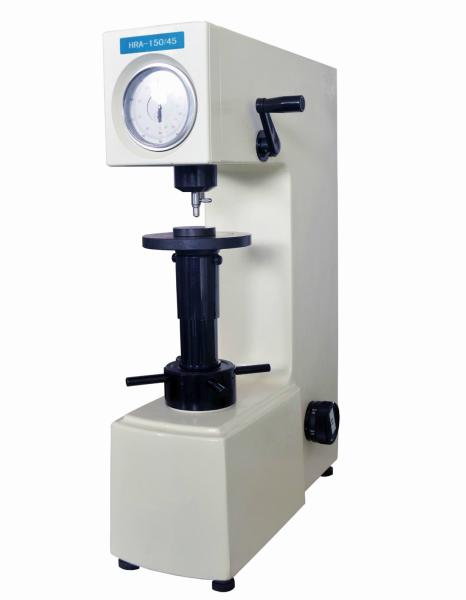

Rockwell and Superficial Rockwell Hardness Tester, Pointer Type Table Hadness Testers HRA-150/45
Rockwell and Superficial Rockwell Hardness Tester, Pointer Type Table Hadness Testers HRA-150/45
Rockwell and Superficial Rockwell Hardness Tester, Pointer Type Table Hadness Testers HRA-150/45
Rockwell and Superficial Rockwell Hardness Tester, Pointer Type Table Hadness Testers HRA-150/45
Specifications
Brand Name :
RAYTECH
Model Number :
HRA-150/45
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500units per month
Delivery Time :
5~8 working days
Packaging Details :
Standard Export Carton
Product Name :
Rockwell and Superficial Rockwell Hardness Tester, Pointer Type Table Hadness Testers HRA-150/45
Indenter :
Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method :
Manual
Hardness Reading :
Dial
Resolution :
0.5HR
Weight :
Net Weight: 80kg，Gross Weight: 100kg
Description

Rockwell and Superficial Rockwell Hardness Tester, Pointer

Type Table Hadness Testers HRA-150/45

Rockwell and Superficial Rockwell Hardness Tester, Pointer Type Table Hadness Testers HRA-150/45


Main Function:

HRA-150/45 Double Rockwell hardness tester is a popularly-used hardness testing instrument to

measure the Rockwell and superficial Rockwell hardness of the materials. No need for power

supply, the speed of the test force loading is regulated by the buffer and the test force is regulated

by the load-change hand wheel. It has easy operation and stable performance, therefore it is

widely used.

Application range:

Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable

cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for

surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers,

chrome layers, tin layers etc.

Technical Specification:

Model


HRA-150/45

Initial Test Force


3kgf (29.42N), 10kgf (98.07N)

Total Test Force


15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N),
60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)

Indenter


Diamond Rockwell Indenter, ф1.588mmBall Indenter

Loading Method


Manual

Hardness Reading


Dial

Resolution


0.5HR

Max. Height of Specimen


175mm

Throat


165mm

Execute Standard


ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2

Dimension


520×255×700mm,Packing Dimension: 650×370×950mm

Weight


Net Weight: 80kg,Gross Weight: 100kg


Packing List:


Name

QtyNameQty


Instrument Main Body

1 setDiamond Rockwell Indenter1 pc


ф1.588mmBall Indenter

1 pcMiddle Plane Test Table1 pc


Large Plane Test Table

1 pcV-shaped Test Table1 pc


Hardness Block 60~70 HRC

1 pcHardness Block 20~30 HRC1 pc


Hardness Block 80~100 HRB

1 pcHardness Block 70~85 HR30T1 pc


Hardness Block 65~80 HR30N

1 pcWeight 1, 2, 3, 4, 55 pcs


Level

1 pcHorizontal Regulating Screw4 pcs


Screw Driver

1 pcSpanner1 pc


Anti-dust Cover

1 pcUsage Instruction Manual1 copy
