Main Features

XHV-1000 Digital Micro Vickers Hardness Tester made with a unique and precise design in the

fields of mechanics, optics and light source is able to produce a clearer indentation and hence a

more precise measurement. By means of a 20 × lens and a 40 × lens the tester has a wider

measurement field and a broader usage range. With an automatically turning device ( the

automatically turning turret ), the operation has become easier; and with a thread interface, it can

be linked to a digital camera and a CCD Video—camera . It is the first tester that has adopted

the touch and work LCD screen, thus making the operation more humanized. The tester has such

features as the direct reading of the measurements, the easy change of the hardness scales, the

reservation of the data, the printing and the linkage with RS232 interface. It is the representative

of the products of the same kind in the country.

Usage Range

Ferrous metals, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate,

precious stones;

Hardness testing such as that on the depth and the trapezium of the carbonized layers and

quench hardened layers.

Technical Features

Test Forces:(0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80) N (10, 25, 50, 100, 200, 300,

500, 1000) gf

Carriage Control: automatic ( loading / holding-up of the load / unloading )

Amplification of the Microscope: 200 ×, 400 ×

Dwell Time of the Test Force: (5-60)s

Min. Graduation Value of the Testing Drum Wheel: 0.0625um

Testing Field: 1HV—2967HV

Dimension of the XY Table: 100 × 100 mm

Movement Field of the XY Table: 25 × 25mm

Max. height of the specimen : 70 mm

Max. width of the specimen : 95mm

Output : installed with a printer and a RS232 serial interface

Light source : cold light source

Power Supply : 110V/220V,60/50Hz

Dimension: (425 × 245 × 490)mm

Weight: 30Kg

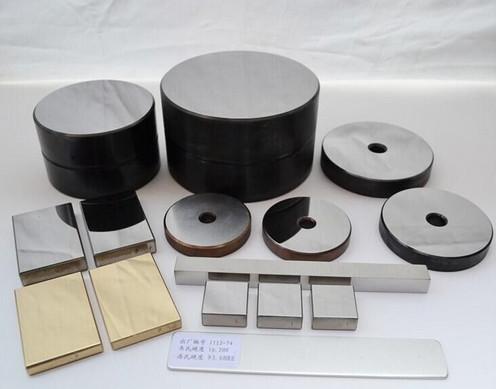

Main accessories
