Spark Holiday Detector, Coating Inspecting Porosity holiday detector for pipelines
Spark Holiday Detector, Coating Inspecting Porosity holiday detector for pipelines
Spark Holiday Detector, Coating Inspecting Porosity holiday detector for pipelines
Spark Holiday Detector, Coating Inspecting Porosity holiday detector for pipelines
Specifications
Brand Name :
RAYTECH
Model Number :
RHD-20
Certification :
ISO CE
Place of Origin :
China
MOQ :
1
Payment Terms :
Western Union, T/T
Supply Ability :
500units/month
Delivery Time :
5days
Packaging Details :
Standard export carton, 40*47*22cm
Product name :
Spark Holiday Detector, Coating Inspecting Porosity holiday detector for pipelines
Detector range :
30um~1mm
Output voltage :
600V~8000V
Display :
LCD
Net weight :
2.2kgs
DC power supply :
12v
Description

Spark Holiday Detector, Coating Inspecting Porosity holiday detector for pipelines

Spark Holiday Detector, Coating Inspecting Porosity holiday detector for pipelines
Spark Holiday Detector, Coating Inspecting Porosity holiday detector for pipelines

RHD-10/20 Porosity Detectors are employed in the non-destructive detection and location of pinholes, bare spots or thin points in protective coatings applies for corrosion protection over metal and concrete (conductive) surfaces.With corrosion an extremely costly and disruptive worldwide problem, preventative determination becomes essential.

For newly constructed tanks, pipelines and other installations, where corrosion prevention coatings have had to be applies, specifications will normally call for a specific coating to a specific thickness. By using a our Detector to verify the competency of the sealing coatings, the contractor can be assures that his coatings responsibility has been met.

In terms of cost effectiveness, with the low capital and operating costs of the Detector, the contractor will have some protection from claims at a very low price.

Technical specifications

RHD-20 MODE Parameter RHD-10 MODE Parameter
Detector range 30um~1mm Detector range 0.05mm~10mm
Output voltage 600V~8000V Output voltage 0.6KV~30KV
DC power supply 12V DC power supply 12V
LCD display support LCD display support
Weight 2.2kg Weight 2.2kg
Dimensions 130*88*220mm Dimensions 130*88*220mm

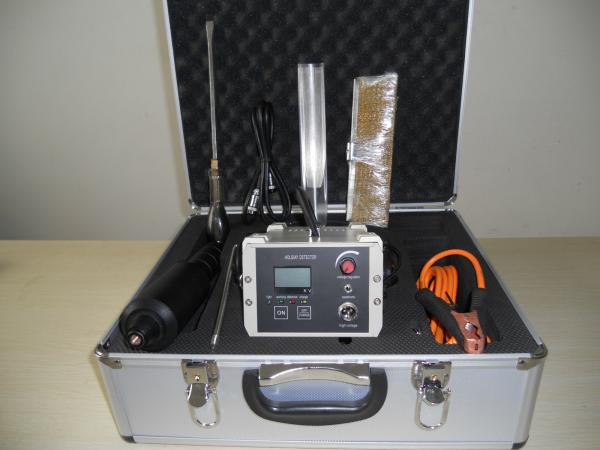

Standard delivery

Item Qty Item Qty
Detector unit 1 Fuse 2
Probe Handle 1 Charger 1
Flat brush 1 Kit case 1
Pen brush 1 Instruction manual 1
Connector for brushes 1 Warranty card 1


Spark Holiday Detector, Coating Inspecting Porosity holiday detector for pipelines
Tag: Holiday detectors Porosity Detector Coating Test Machine
