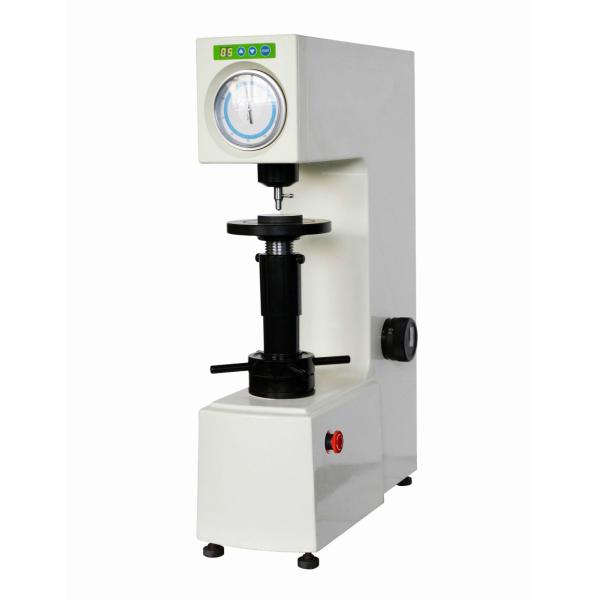

Motorized Superficial Automatic Loading Rockwell Hardness Tester HRM-45DT
Motorized Superficial Automatic Loading Rockwell Hardness Tester HRM-45DT
Motorized Superficial Automatic Loading Rockwell Hardness Tester HRM-45DT
Motorized Superficial Automatic Loading Rockwell Hardness Tester HRM-45DT
Specifications
Brand Name :
RAYTECH
Model Number :
HRM-45DT
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500units per month
Delivery Time :
5~8 working days
Packaging Details :
Standard Export Carton
Product Name :
Motorized Superficial Automatic Loading Rockwell Hardness Tester HRM-45DT
Initial Test Force :
3kgf (29.42N)
Total Test Force :
15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N)
Indenter :
Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method :
Automatic (Loading/Dwell/Unloading)
Resolution :
0.5HR
Description

Motorized Superficial Automatic Loading Rockwell Hardness

Tester HRM-45DTMotorized Superficial Automatic Loading Rockwell Hardness Tester HRM-45DT

Main Function:

HRM-45DT Motorized superficial Rockwell hardness tester adopts the mechanism of automatic loading

and unloading of the test force, the test force is regulated by the load-change hand wheel. It can select

the dwell time and is very easy to use. Besides setting zero to dial, there is no man-made error. The

instrument has high sensitivity and stability.

Application range:

Suitable for surface quenched steel, surface heat treating and chemical treating materials, copper alloy,

aluminum alloy, sheet, zinc layers, chrome layers, tin layers, bearing steel and cold and hard casting etc.

Technical Specification:

Model

 HRM-45DT

Initial Test Force

 3kgf (29.42N)

Total Test Force

 15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N)

Indenter

 Diamond Rockwell Indenter, ф1.588mmBall Indenter

Loading Method

 Automatic (Loading/Dwell/Unloading)

Hardness Reading

 Dial

Resolution

 0.5HR

Dwell Time

 2~60s

Max. Height of Specimen

 175mm

Throat

 165mm

Power Supply

 AC220V,50Hz

Execute Standard

 ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2

Dimension

 520×215×700mm,Packing Dimension: 650×370×950mm

Weight

 Net Weight: 73kg,Gross Weight: 100kg

Packing List:

Name

 Qty Name Qty

Instrument Main Body

 1 set Diamond Rockwell Indenter 1 pc

ф1.588mmBall Indenter

 1 pc Middle Plane Test Table 1 pc

Large Plane Test Table

 1 pc V-shaped Test Table 1 pc

Hardness Block 70~85 HR30T

 1 pc Hardness Block 80~90 HR15N 1 pc

Hardness Block 65~80 HR30N

 1 pc Weight A, B, C 3 pcs

Power Cable

 1 pc Fuse 2A 2 pcs

Level

 1 pc Horizontal Regulating Screw 4 pcs

Screw Driver

 1 pc Spanner 1 pc

Anti-dust Cover

 1 pc Usage Instruction Manual 1 copy
