No need Power Supply Manual Loading Superficial Rockwell Hardness Tester HRM-45
No need Power Supply Manual Loading Superficial Rockwell Hardness Tester HRM-45
No need Power Supply Manual Loading Superficial Rockwell Hardness Tester HRM-45
No need Power Supply Manual Loading Superficial Rockwell Hardness Tester HRM-45
Specifications
Brand Name :
RAYTECH
Model Number :
HRM-45
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500units per month
Delivery Time :
5~8 working days
Packaging Details :
Standard Export Carton
Product Name :
No need Power Supply Manual Loading Superficial Rockwell Hardness Tester HRM-45
Initial Test Force :
3kgf (29.42N)
Total Test Force :
15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N)
Indenter :
Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method :
Manual
Resolution :
0.5HR
Description

No need Power Supply Manual Loading Superficial Rockwell

Hardness Tester HRM-45

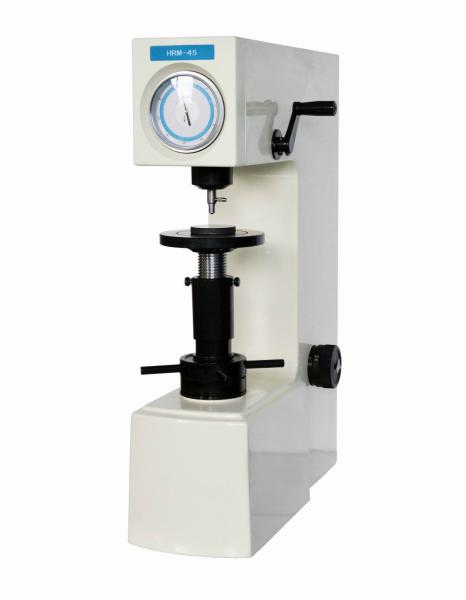

No need Power Supply Manual Loading Superficial Rockwell Hardness Tester HRM-45

Main Function:

HRM-45 Superficial Rockwell hardness tester is a popularly-used hardness testing instrument to measure

the superficial Rockwell hardness of the materials. No need for power supply, the speed of the test force

loading is regulated by the buffer and the test force is regulated by the load-change hand wheel. It has

easy operation and stable performance, therefore it is widely used.

Application range:

Suitable for surface quenched steel, surface heat treating and chemical treating materials, copper alloy,

aluminum alloy, sheet, zinc layers, chrome layers, tin layers, bearing steel and cold and hard casting etc.

Technical Specification:

Model

 HRM-45

Initial Test Force

 3kgf (29.42N)

Total Test Force

 15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N)

Indenter

 Diamond Rockwell Indenter, ф1.588mmBall Indenter

Loading Method

 Manual

Hardness Reading

 Dial

Resolution

 0.5HR

Max. Height of Specimen

 175mm

Throat

 165mm

Execute Standard

 ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2

Dimension

 520×245×700mm,Packing Dimension: 650×370×950mm

Weight

 Net Weight: 73kg,Gross Weight: 100kg

Packing List:

Name

 Qty Name Qty

Instrument Main Body

 1 set Diamond Rockwell Indenter 1 pc

ф1.588mmBall Indenter

 1 pc Middle Plane Test Table 1 pc

Large Plane Test Table

 1 pc V-shaped Test Table 1 pc

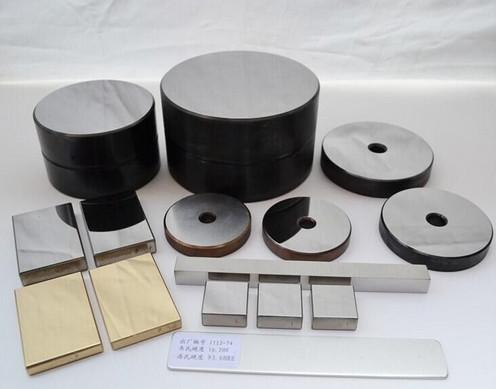

Hardness Block 70~85 HR30T

 1 pc Hardness Block 80~90 HR15N 1 pc

Hardness Block 65~80 HR30N

 1 pc Weight A, B, C 3 pcs

Anti-dust Cover

 1 pc Usage Instruction Manual 1 copy



TAG: Barcol Impressor Hardness Tester


Digital Brinell Hardness Tester Full Automatic Vickers Hardness Tester
