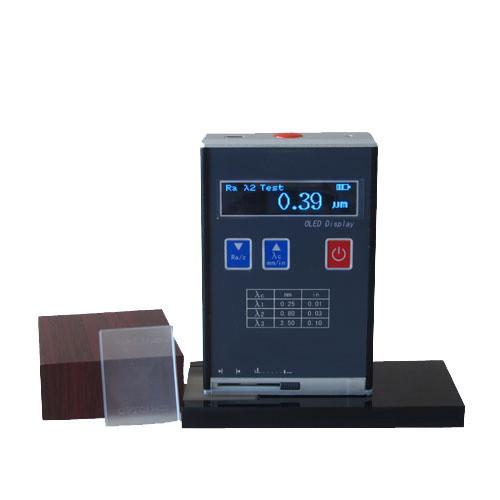

USB Digital Surface roughness tester, Portable Metal and Non-Metal surface roughness gauge
USB Digital Surface roughness tester, Portable Metal and Non-Metal surface roughness gauge
USB Digital Surface roughness tester, Portable Metal and Non-Metal surface roughness gauge
USB Digital Surface roughness tester, Portable Metal and Non-Metal surface roughness gauge
Specifications
Brand Name :
RAYTECH
Model Number :
SRT110
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
500units per month
Delivery Time :
about 3~5days
Packaging Details :
standard export package
Product Name :
USB Digital Surface roughness tester, Portable Metal and Non-Metal surface roughness gauge
Testing parameters :
Ra,Rz,Rq,Rt
Stroke length(mm) :
6
Sample length(mm) :
0.25 ,0.80 ,2.50
Port :
USB port for connecting with PC or charging
Weight :
200g
Description

USB Digital Surface roughness tester, Portable Metal and

Non-Metal surface roughness gauge

USB Digital Surface roughness tester, Portable Metal and Non-Metal surface roughness gauge

Introduction

SRT110 has the features of high accuracy, wide measuring range, easy to operate, portable,

working stably features. It is widely used at inspecting the processing surface of many kinds of

metals and non-metal.

Features

Optimized electric circuit design with transducer structure design, high integrate power, driver

and display. Select freely with Ra,Rz,Rq,Rt parameters. It could test excircle, flat surface, conical

surface and also test groove with length and width larger than 80*30mm.

Functions

1. Metal case, stronger and anti-electromagnetic interference

2. Adapts high speed DSP processor to get fast reaction

3. OLED color display, high light, no visual angle and wide temperature, could be used at each

workplace

4. Li rechargeable battery, which could continuously work for long time and long life

5. USB port for connecting with PC or charging

6. LCD display to provide more information

7. Battery power shown

8. Auto power off and low power consumption design

9. Transducer has production gate to guarantee the accuracy of testing

Specifications

Testing parameters(µm ): Ra,Rz,Rq,Rt

Stroke length(mm): 6

Sample length(mm): 0.25 ,0.80 ,2.50

Evaluation length(mm): 1.25 ,4.0, 5.0

Measuring range(µm ):

Ra, Rq: 0.05 ~ 15.0

Rz, Rt: 0.1 ~ 50.0

Error: ±(7-10)%

Variablity: <12%

Transducer contacting pin round diameter and angle:

Contacting pin round diameter: 10 µm±1 µm

Degree: 90°(+5°/ -10°)

Battery: 3.7V Li

Size: 106 mm×70 mm×24 mm

Weight: 200g

Working conditions:

Temperature: -20°C~40°C

Relative humidity: < 90%

No shake and corrosivity around

Standard package

NO.

Name

Qty

1

Main unit

1

2

Transducer

1

3

Batteries

1

4

Charger

1

5

Standard Test Block

1

6

Operation Manual

1

7

Certificate of approval

1

8

Instrument case

1
