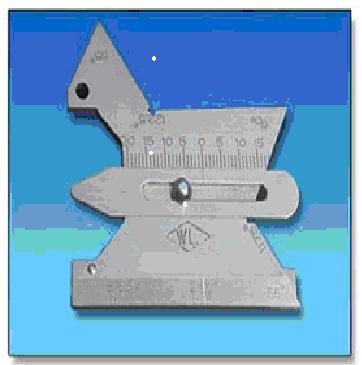

Welding Gage Model HJC30

The gauge consists of main scale, slide gauge and bevel gauge and is specially used for the measurement of the bevel angle of welding, the width and height of weld seam, and the weld gap.

It is made of stainless steel and is characterized by portable and compact structure, easy operation, wide application and accurate measurement.

Measurement Items Range Parameters Tools
Width 0—20mm 0.2 0.02 vernier caliper
Height 0—12mm Plug gauge, tabulate gauge
Width of Fillet Weld 0—20mm
Movable Bevel Angle 20°,30°,
40°,50°,
60°,70°,80°		 ±2° ±30' angle gauge
Single-side Bevel Angle 117.5—122.5 ±30' ±10″universal gauge
Bevel Angle 45°,55°,
60°,65°		 ±30' ±10″universal gauge
Gap Size 0.5-3.5mm 0.1

0.02 vernier caliper

Welding Gage, Stainless Steel Weld Gauge HJC30 HJC40 HJC 60, Ultrasonic Flaw Detector

Welding Gage Model HJC60

The gauge consists of main scale, height gauge, undercut depth gauge and multiple-purpose gauge and is specially used for the measurement of the bevel angle, height, width, gap and undercut depth of weldment, suitable for the detection of boilers, bridges, ships, pressure vessels and oil pipes.

It is made of stainless steel and is characterized by portable and compact structure, easy operation, wide application.

Measurement Items Range Tolerance of Indicating Value
Height Surface Height 0—15 0.2
Height of Fillet Weld 0.2
Thickness of Fillet Weld 0.2
Width 0—60 0.3
Undercut Depth of Welding Seam 0—5 0.1
Bevel Angle of Welding 80—160 30
Gap Size 0.5—6 0.1

Welding Gage Model HJC40

Measurement Items Range Tolerance of Indicating Value
Height Surface Height 0.2
Height of Fillet Weld 0—12 0.2
Thickness of Fillet Weld 0—15 0.2
Width 0—40 0.3
Undercut Depth of Welding Seam 0—5 0.1
Bevel Angle of Welding ≤150 30
Gap Size 0.5—5 0.1

Product Name Package
Welding Gage Model HJC30 Plastic Carton
Welding Gage Model HJC60 Plastic Carton
Welding Gage Model HJC40 Plastic Carton
Welding Gage Model HJC45 Plastic Carton
