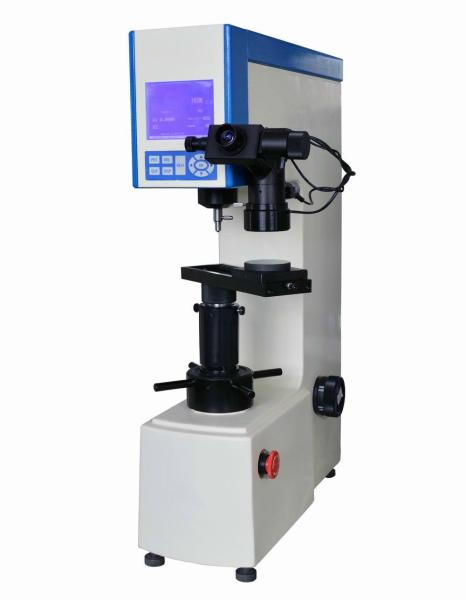

RS232 Multi-Functional Digital Brinell Rockwell Vickers Hardness Tester HBRV-187.5D
RS232 Multi-Functional Digital Brinell Rockwell Vickers Hardness Tester HBRV-187.5D
RS232 Multi-Functional Digital Brinell Rockwell Vickers Hardness Tester HBRV-187.5D
RS232 Multi-Functional Digital Brinell Rockwell Vickers Hardness Tester HBRV-187.5D
Specifications
Brand Name :
RAYTECH
Model Number :
HBRV-187.5D
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500units per month
Delivery Time :
5~8 working days
Packaging Details :
Standard Export Carton
Product Name :
RS232 Multi-Functional Digital Brinell Rockwell Vickers Hardness Tester HBRV-187.5D
Rockwell Test Force :
60-150kgf
Brinell Test Force :
30-187.5kgf
Vickers Test Force :
30-100kgf
Magnification :
Brinell: 37.5×, Vickers: 75×
Resolution :
Rockwell: 0.1HR, Brinell: 0.5μm, Vickers: 0.25μm
Description

RS232 Multi-Functional Digital Brinell Rockwell Vickers

Hardness Tester HBRV-187.5D

RS232 Multi-Functional Digital Brinell Rockwell Vickers Hardness Tester HBRV-187.5D

Main Function:

HBRV-187.5D Digital Brinell Rockwell & Vickers hardness tester is equipped with a newly-designed large

displaying screen with good reliability, excellent operation and easy watching, thus it is a high-tech

product combining the optic, mechanic and electric features. It has Brinell, Rockwell and Vickers three test

modes and 7 level of test forces, which can test several kinds of hardness. Test force loading, dwell,

unload adopts automatic shifting for easy and fast operation. It can show and set the present scale, test

force, test indenter, dwell time and hardness conversion; the main function is as follows: Selection of

Brinell, Rockwell and Vickers three test modes; Conversion scales of different kinds of hardness; Test

results can be saved for checking or be printed out, automatic calculation of maximum, minimum and

average value; With RS232 interface for connecting to the computer.

Application range:

Suitable for hardened and surface hardened steel, hard alloy steel, casting parts, non-ferrous metals,

various kinds of hardening and tempering steel and tempered steel, carburized steel sheet, soft metals,

surface heat treating and chemical treating materials etc.

Technical Specification:

Model HBRV-187.5D
Rockwell Test Force 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)
Brinell Test Force 30kgf (294.2N), 31.25kgf (306.5N), 62.5kgf (612.9N), 100kgf (980.7N), 187.5kgf (1839N)
Vickers Test Force 30kgf (294.2N), 100kgf (980.7N)
Indenter

Diamond Rockwell Indenter, Diamond Vickers Indenter,

ф1.588mm, ф2.5mm, ф5mmBall Indenter
Loading Method Automatic (Loading/Dwell/Unloading)
Hardness Reading LCD Screen Display
Test Scale HRA, HRB, HRC, HRD, HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW10/100, HV30, HV100
Conversion Scale HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW
Magnification Brinell: 37.5×, Vickers: 75×
Resolution Rockwell: 0.1HR, Brinell: 0.5μm, Vickers: 0.25μm
Dwell Time 0~60s
Data Output Built-in Printer,RS232 Interface
Max. Height of Specimen Rockwell: 175mm, Brinell: 100mm, Vickers: 115mm
Throat 165mm
Power Supply AC220V,50Hz
Execute Standard

ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2

ISO 6506,ASTM E10-12,JIS Z2243,GB/T 231.2

ISO 6507,ASTM E92,JIS Z2244,GB/T 4340.2
Dimension 520×240×740mm,Packing Dimension: 650×370×980mm
Weight Net Weight: 80kg,Gross Weight: 105kg

Packing List:

Name Qty Name Qty
Instrument Main Body 1 set Diamond Rockwell Indenter 1 pc
Diamond Vickers Indenter 1 pc ф1.588mm, ф2.5mm, ф5mmBall Indenter each 1 pc
Slipped Test Table 1 pc Middle Plane Test Table 1 pc
Large Plane Test Table 1 pc V-shaped Test Table 1 pc
15× Digital Measuring Eyepiece 1 pc 2.5×, 5× Objective each 1 pc
Microscope System (include the inside light and outside light) 1 set Hardness Block 150~250 HBW 2.5/187.5 1 pc
Hardness Block 60~70 HRC 1 pc Hardness Block 20~30 HRC 1 pc
Hardness Block 80~100 HRB 1 pc Hardness Block 700~800 HV30 1 pc
Weights 0, 1, 2, 3, 4 5 pcs Power Cable 1 pc
Fuse 2A 2 pcs Horizontal Regulating Screw 4 pcs
Level 1 pc Spanner 1 pc
Screw Driver 1 pc Anti-dust Cover 1 pc
Usage Instruction Manual 1 copy
